APCI-7800

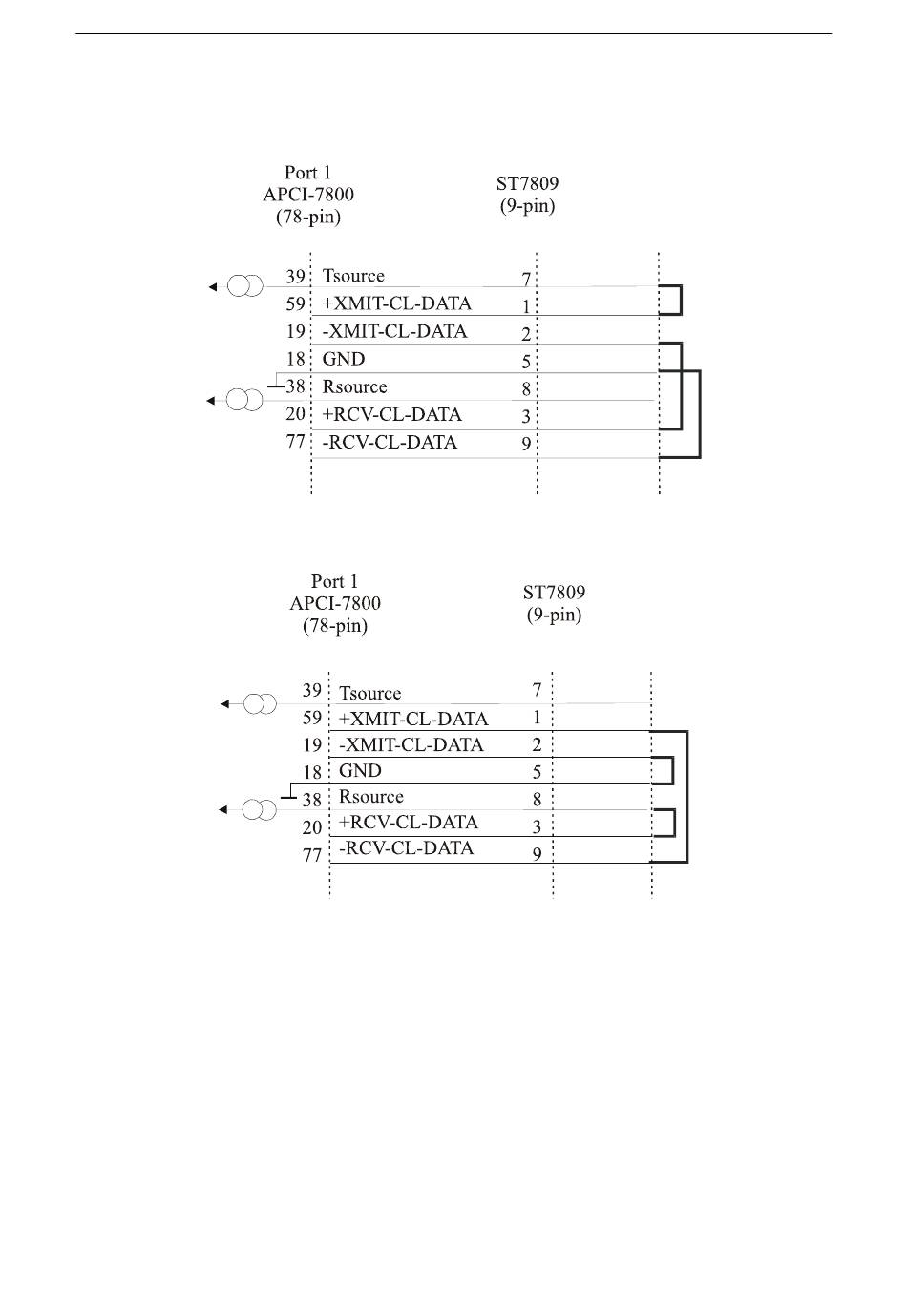

Fig. 8-3: Connection of the shorting plug for the 20 mA current loop
Fig. 8-4: Connection of the shorting plug for the 20 mA current loop
active transmission/passive reception
passive transmission/active reception
Testing the board
39
