REPLACING THE MODULES

i
IMPORTANT!
We advise you to send us the board if a module is to be replaced.
If you wish to effect the replacement yourself, consider the following:
Observe the possible combinations according to the intended purpose of
-
the board.
Do observe the Security advises.
-
Insert/remove the module carefully according to the following illustrations.
-
9.1

Replacing the SI modules

42

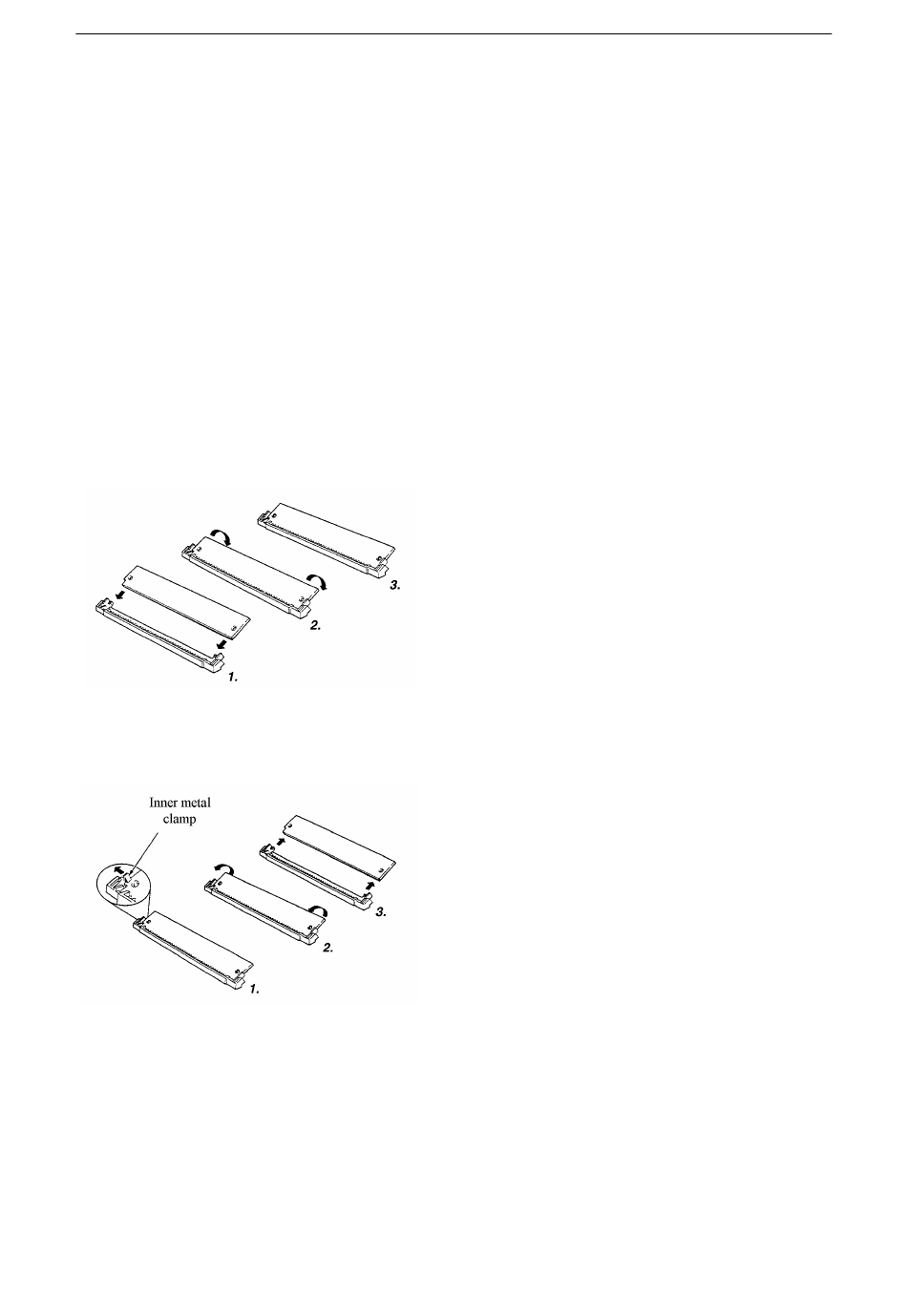

Fig. 9-1: Inserting the SI module

Fig. 9-2: Removing a SI module

Replacing the modules
1. Hold the SI-module so that its
connector is directed toward the
guide rail in the centre of the
socket.
2. Pull the SI-module downward
until it clicks in place.
3. The SI-module is installed on the
board. If the module is not
properly installed, take it out and
install it again.
1. Bend the inner metal clamp
carefully apart, until the SI-
module can be removed
from the socket.
2. Remove the SI-Module
from the socket.
