APCI-7800

6.1.1 "More information" dialog box for serial interfaces

ADDIREG can differentiate a PCI serial interface from the other standard
PCI boards.

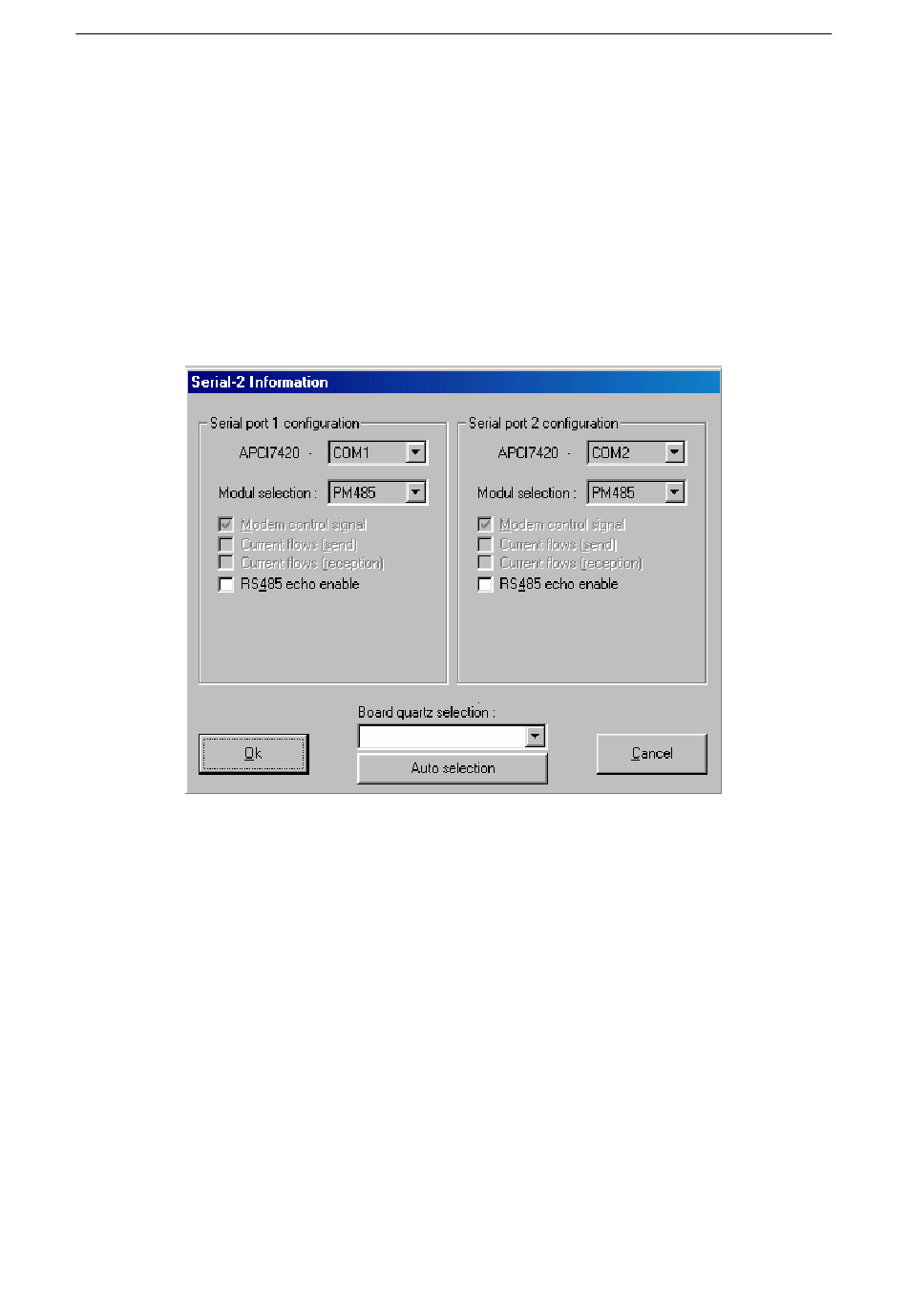

The following figure is the example of 2 serial interfaces. If you use the
standard driver for Windows, you can select the COM number.
Several options like "Module selection" and the different parameters can
only be activated if the functions are available.
IMPORTANT!
i
You can change the quartz frequency only if you have required the option
"Quarz modification" on your board.
In "Board quartz selection" you can adapt the quartz frequency (in Hz).
The ADDI-DATA boards are set with a standard quartz frequency of
1843200 Hz.
26

Fig. 6-3: Communication board

Software
