Fig. 7-8: Active Transmission/Passive Reception; Fig. 7-9: Passive Transmission/Active Reception; Fig. 7-10: Passive Transmission/Passive Reception - Addi-Data ADDICOM APCI-7800 Technical Description

8-port serial interface
Hide thumbs
Table of Contents

Advertisement

APCI-7800
Connecting the peripheral

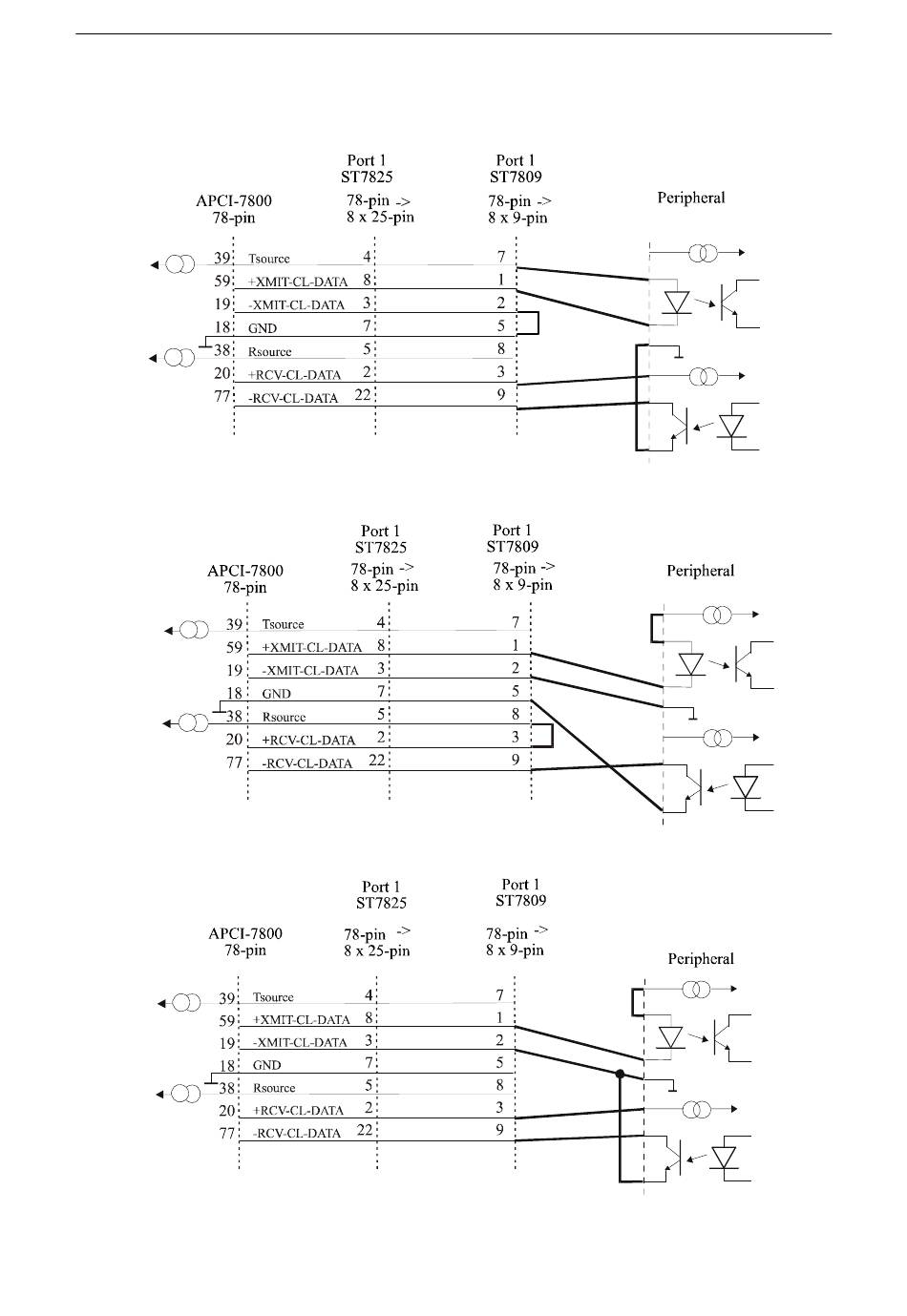

Fig. 7-8: Active transmission/passive reception

Fig. 7-9: Passive transmission/active reception

Fig. 7-10: Passive transmission/passive reception

37
