PA 200
6.3

Plugging the board into the slot

♦ Insert the board vertically into the chosen slot.
♦ Fasten the board to the rear of the PC housing with the screw which was
fixed on the back cover.
♦ Tighten all the loosen screws.
6.4

Closing the PC

♦ Close your PC as described in the manual of the PC manufacturer.

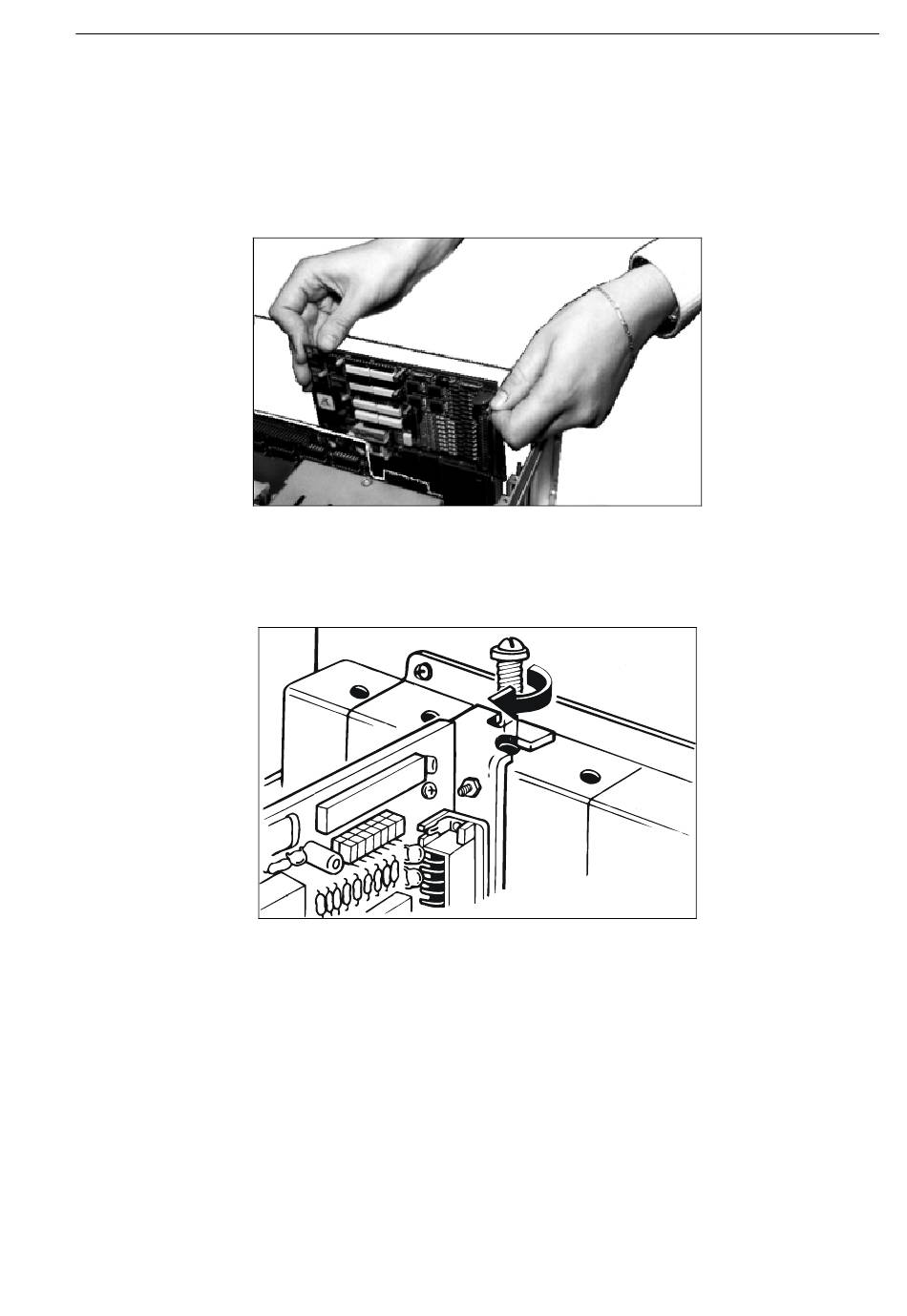

Fig. 6-3: Inserting the board

Fig. 6-4: Fastening the board at the back cover

Installation of the board
15
