APCI-7800

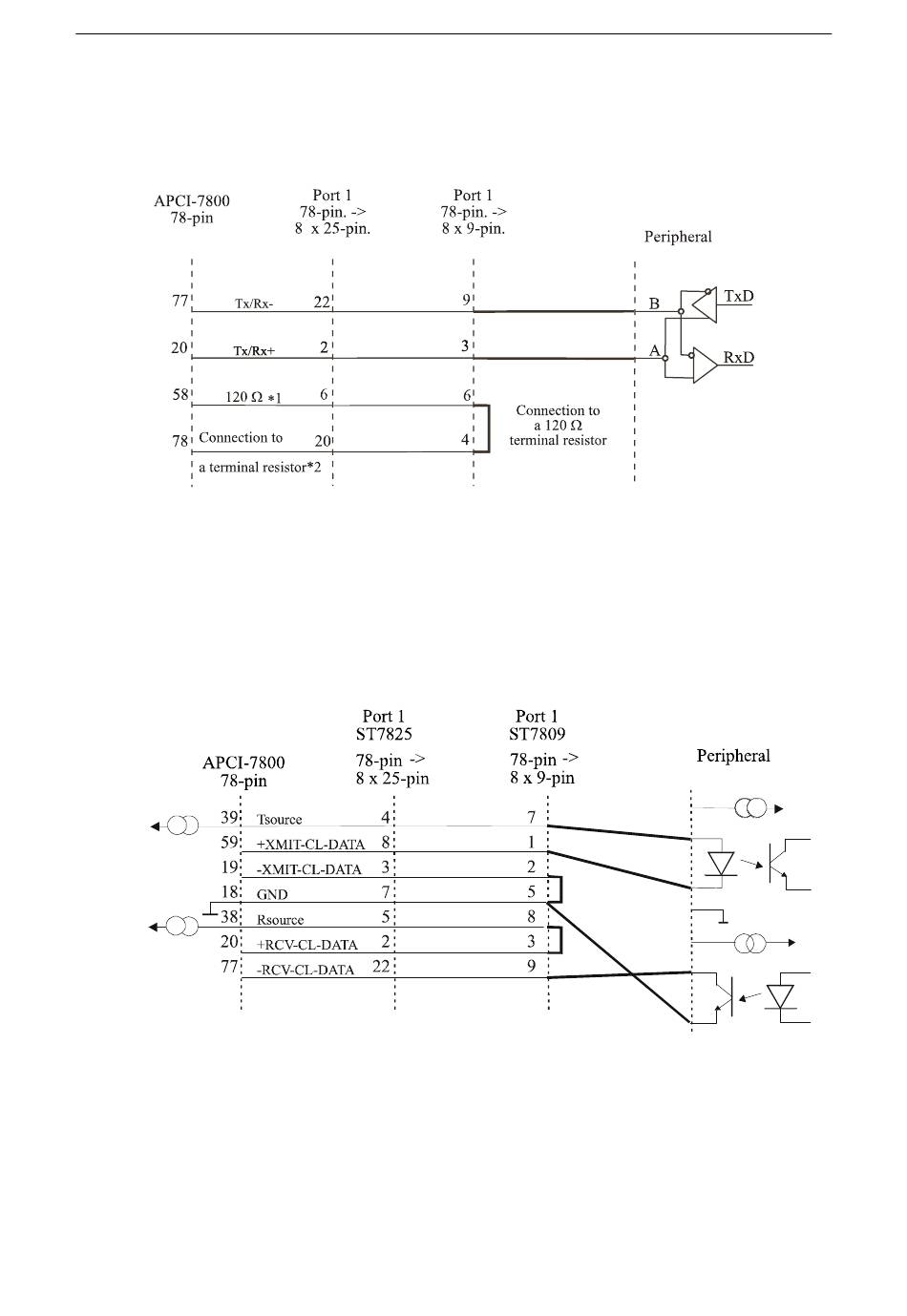

7.3.3 RS485 cabling

7.3.4 Current loop (20 mA) cabling

Active / passive : When a transmitter and a receiver communicate, one of
them has to supply the necessary current. If the transmitter supplies the
current, it is active. The receiver is passive. In reverse, if the receiver
supplies the current, it is active.

Fig. 7-7: Active transmission/active reception

36

Fig. 7-6: RS485 cabling

Connecting the peripheral
