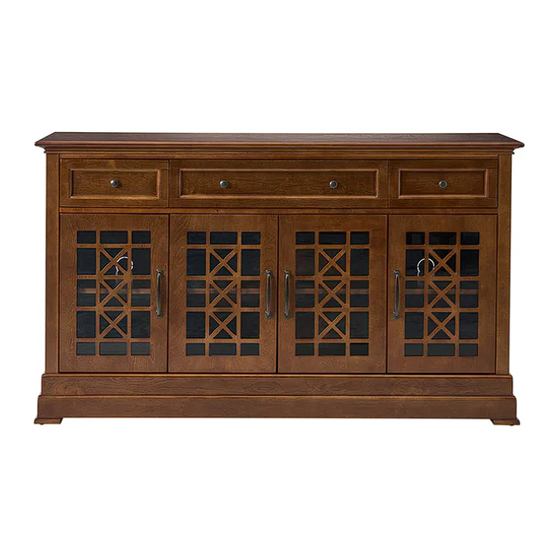

ITEM NO.SBYL0959
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/28

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBYL0959 and is the answer not in the manual?

Questions and answers

Related Manuals for HULALA HOME SBYL0959

Summary of Contents for HULALA HOME SBYL0959

  • Page 1 HULALA ITEM NO.SBYL0959 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/28...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.

  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSONENS 03/28...

  • Page 4: Parts List

    PARTS LIST 1 04/28...
  • Page 5 PARTS LIST 1 & 05/28...

  • Page 6: Hardware List

    HARDWARE LIST Ø4*25MM 5/32"*3/4" Ø3*15MM Ø3*15MM Ø4*20MM Ø4*39MM TOOL LIST 1/4" HARDWARE SPARE LIST Ø4*25MM 5/32"*3/4" Ø3*15MM Ø3*15MM 06/28...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-1 1.Use screw B 2 to attach magnetic catch （ B7&B8 ） to the corresponding hole of panel(A7), tighten screw with screwdriver B18. 2.Insert part (A7) into part (A4&A5),as picture show . Ø3*15MM 07/28...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-2 1.Insert side panel (A3&A2) into the corresponding hole of preassembled step 1 ， make sure all holes aligned and use allen key B17 to tighten it as picture show. 1/4" 08/28...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert bottom panel (A6) into the corresponding hole of preassembled step 2 ， make sure all holes aligned and use allen key B17 to tighten it as picture show. & & 1/4" 09/28...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert top panel(A1) into the corresponding hole of preassembled step 3.make sure all holes aligned and use allen key#17 to tighten it as picture show. & 1/4" 10/28...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-5 1.insert back panel(A8) into the groove of preassembled step 4,make sure all holes aligned and use screw#B2 to attach them ， tighten screw #B2 with screwdriverB18. Ø3*15MM 11/28...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-6 Attention: Before the next step, adjust the feet of the locker to keep it level. 12/28...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-7 1.Connect part (A15&A16&A20) to part A17 using screw B3 and tighten it with screwdriver B18 . 2 . Slide in the part (A18) into the groove in part (A15&A16). make sure they are also in groove in part A17. Ø4*25MM 13/28...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-8 1.Connect part (A15&A16&A20) to part A19 using screw B3 and tighten it with screwdriver B18. 2.Use bolt B4 to attach handle B10 to the corresponding hole of panel(A19), tighten screw with screwdriver B18. Ø4*25MM 5/32"*3/4" 14/28...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-9 1.Connect part (A22&A23) to part A21 using screw B3 and tighten it with screwdriver B18 . 2.Slide in the part (A24) into the groove in part (A22&A23). make sure they are also in groove in part A21. Ø4*25MM 15/28...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-10 1.Connect part (A22&A23) to part (A25 R L)using screw B3 and & tighten it with screwdriver B18. 2.Use bolt B4 to attach handle B10 to the corresponding hole of panel(A25 R L), tighten screw with screwdriver B18. &...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-11 Female slider Male slider Schematic diagram of Attention ： When installing the slide rail disassembly drawer,slide the steel ball slide rail of side panel to the most front as picture show. 17/28...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Insert shelf holder B9 into the corresponding hole of panel (A2)&(A4)&(A5)&(A3) and then attach panel (A9&A10) to it. Shelf holder can be adjusted up or down 18/28...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-13 1.Use screw B1 to attach hingeB5 to the corresponding hole of panel(A11&A14), tighten screw with screwdriver B18. When installing hinge ， please pay attention to distinguish the category of hinge!!!!! Ø3*15MM 19/28...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-14 1.Move door (A11) to corresponding position of side panel (A2) ， make sure all holes aligned and use screw B1 to attach them,tighten screwB1 with screwdriverB18. 2.Move door (A14) to corresponding position of side panel (A3) ， make sure all holes aligned and use screw B1 to attach them,tighten screwB1 with screwdriverB18.
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-15 1.Use screw B1 to attach hingeB6 to the corresponding hole of panel(A12&A13), tighten screw with screwdriver B18. When installing hinge ， please pay attention to distinguish the category of hinge!!!!! Ø3*15MM 21/28...
  • Page 22 ASSEMBLY INSTRUCTIONS STEP-16 1.Move door (A12) to corresponding position of side panel (A4) ， make sure all holes aligned and use screw B1 to attach them,tighten screwB1 with screwdriverB18. 2.Move door (A13) to corresponding position of side panel (A5) ， make sure all holes aligned and use screw B1 to attach them,tighten screwB1 with screwdriverB18.
  • Page 23 ASSEMBLY INSTRUCTIONS Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 23/28...
  • Page 24 ASSEMBLY INSTRUCTIONS STEP-17 1.Use bolt B4 to attach handle B11 to the corresponding hole of door(A11&A12&A13&A14), tighten bolt with screwdriver B18. 5/32"*3/4" 24/28...
  • Page 25 ASSEMBLY INSTRUCTIONS STEP-18 1.Use screw B14 to attach part B13 to preassemble unit at step 17 ,tighten screws with screwdriver B18. Ø4*20MM 25/28...
  • Page 26 ASSEMBLY INSTRUCTIONS STEP-19 Ø4*39MM 1.Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part B13 on the of panel (A1); Drill and insert the expandable screw B12 by hammer. 3.Assemble the part B13 to the wall. Align the hole in the part B13 with the expandable screw B12, use screw #15 to attach it and tighten by screwdriverB18.
  • Page 27 ASSEMBLY INSTRUCTIONS STEP-20 1.Let the plastic belt B16 pass through the both part B13 and pull tightly. 27/28...

  • Page 28: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
