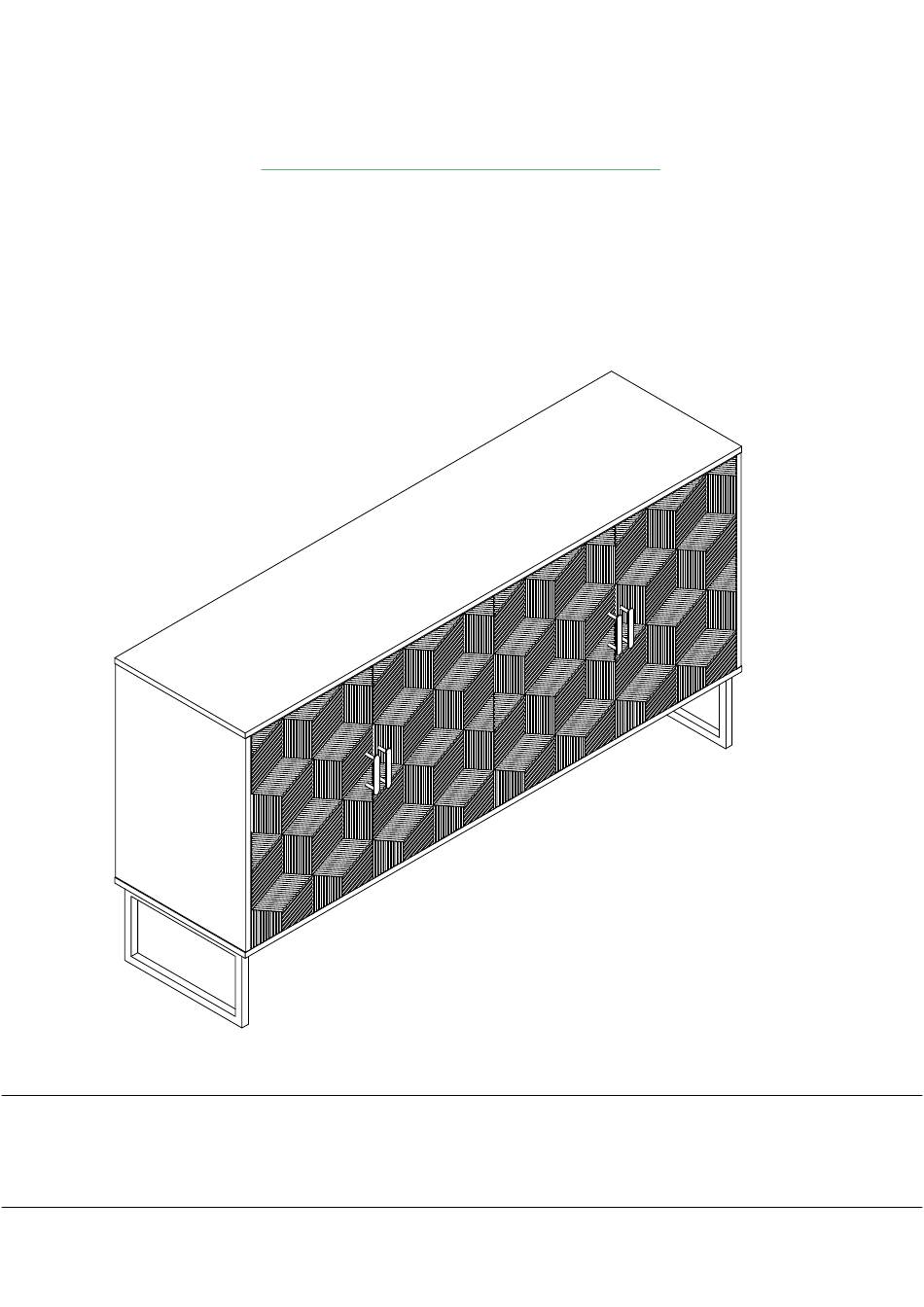

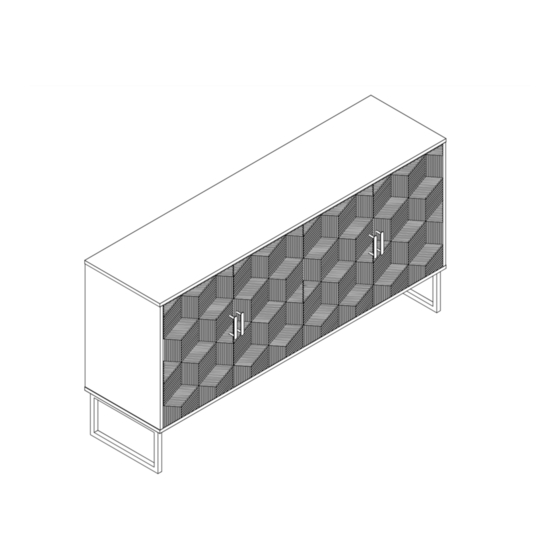

- Page 1 HULALA ITEM NO.SBRB0947 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/29...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/29... -
Page 4: Parts List
PARTS LIST 04/29... - Page 5 PARTS LIST 05/29...
-
Page 6: Hardware List
HARDWARE LIST Ø4*22 Ø3.5mm*14 Ø6*35mm Ø8*30mm Ø15*12mm Ø7*40mm Ø6*15mm Ø6mm*35 Ø4*35 TOOL LIST 06/29... - Page 7 HARDWARE SPARE LIST Ø4*22 Ø3.5mm*14 Ø6mm*35 Ø6*15mm 07/29...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-1 1.Prepare for part A. Align the holes in part A, insert wooden dowel #2 by hand, tighten with screwdriver #21 tighten #1 。 Ø6*35mm Ø8*30mm 08/29...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-2 1.Connect the part A with part C&D&E&F. align the hole in the part C&D&E&F,insert the bolt #1 and wooden dowel #2 in part A into part C&D&E&F. insert cam bolt #3 into the corresponding hole of side panel C&D&E&F,and tighten the nuts #3 with a screwdriver #21 .
- Page 10 ASSEMBLY INSTRUCTIONS STEP-3 1.slide in the part J,K into the groove in part D,E and E,F and F,E,and C,E . make sure they are also in groove in part A.Insert the wooden dowel #2 into the part C&D&E&F as the picture show. Ø8*30mm 10/29...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-4 1.Connect the part B the pre-assembled unit in step 3. Then align the holes in part B,Insert screw #4 and push it down so that it connects to parts C&D&E&F. Next,and tighten the screw #4 with an Allen key #20 . Ø7*40mm 11/29...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-5 1.Prepare the leg racks. Align the holes of the N&O part with the holes of the P part. Place the gasket #22 on the screw #10, insert the screw #10 , and tighten the screw #10 with the allen key #20 . Align the holes of part P, insert the bolt #19, and bolt the middle foot into the bolt #19 .
- Page 13 ASSEMBLY INSTRUCTIONS STEP-6 1.Prepare the leg racks. Align the holes of the M part with the holes of the N&O part, Place the gasket #22 on the screw #10, insert the screw #10 , and tighten the screw #10 with the allen key #20 . 06*15mm 13/29...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-7 1.connect the leg frame to the cabinet. Place the gasket #22 on the screw #11. Attach the leg frame to the pre-assembled unit in step 4 with a screw #11 and tighten #11 with a allen key #20 . Ø6mm*35 14/29...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-8 Attention: Before the next step, adjust the feet of the locker to keep it level. 15/29...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-9 1. Insert hardware #7 into part K&L as shown, screw in screw #6 using screwdriver #21 and tighten fully. Ø3.5mm*14 16/29...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-10 1.Use screw #6 to attach the hinges #8 to door panel (I&J) ， tighten screws #6 with screwdriver #21. Ø3.5mm*14 17/29...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-11 Use screw #6 to attach left door (I) and right door (J) to pre-assemble unit at step 9 ,tighten screw #6 with screwdriver #21 . Ø3.5mm*14 18/29...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-12 1.Use screw #6 to attach the hinges #9 to door panel (I&J) ， tighten screws #6 with screwdriver #21. Ø3.5mm*14 19/29...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-13 1.Use screw #6 to attach middle door (J) to pre-assemble unit at step 11 ,tighten screw #6 with screwdriver #21 . Ø3.5mm*14 20/29...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-14 1.Use screw #6 to attach middle door (I) to pre-assemble unit at step 13 ,tighten screw #6 with screwdriver #21 . Ø3.5mm*14 21/29...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-15 1.Use bolt #5 to attach handle #12 to door panel (I) ， tighten bolts #5 with screwdriver #21 . Ø4*22 22/29...
- Page 23 ASSEMBLY INSTRUCTIONS STEP-16 1.Use bolt #5 to attach handle #12 to door panel (J) ， tighten bolts #5 with screwdriver #21 . Ø4*22 23/29...
- Page 24 ASSEMBLY INSTRUCTIONS STEP-17 1.Insert shelf pin #14 into pre-assemble unit at step 16. attach adjustable shelf G&H to pin #14 . 24/29...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-18 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 25/29...
- Page 26 ASSEMBLY INSTRUCTIONS Ø3.5mm*14 STEP-19 Use screw #6 to attach part #16 to pre-assemble unit at step 17 , tighten screws with screwdriver #21 26/29...
- Page 27 ASSEMBLY INSTRUCTIONS #17 x4 Ø4*35 STEP-20 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part#16 on the of panel (A); Drill and insert the expandable screw by hammer. Assemble the part #16 to the wall. Align the hole in the part #16 with the expandable screw #17 , use screw #15 to attach it and tighten by screwdriver#21.
- Page 28 ASSEMBLY INSTRUCTIONS #18 x2 STEP-21 1.Let the plastic belt #18 pass through the both part #16 and pull tightly. #18x2 #18x2 28/29...
-
Page 29: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
