HULALA HOME SBYL1019 Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

HULALA
H
O
M
E
SBYL1019
ITEM NO.
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBYL1019 and is the answer not in the manual?

Questions and answers

Related Manuals for HULALA HOME SBYL1019

Summary of Contents for HULALA HOME SBYL1019

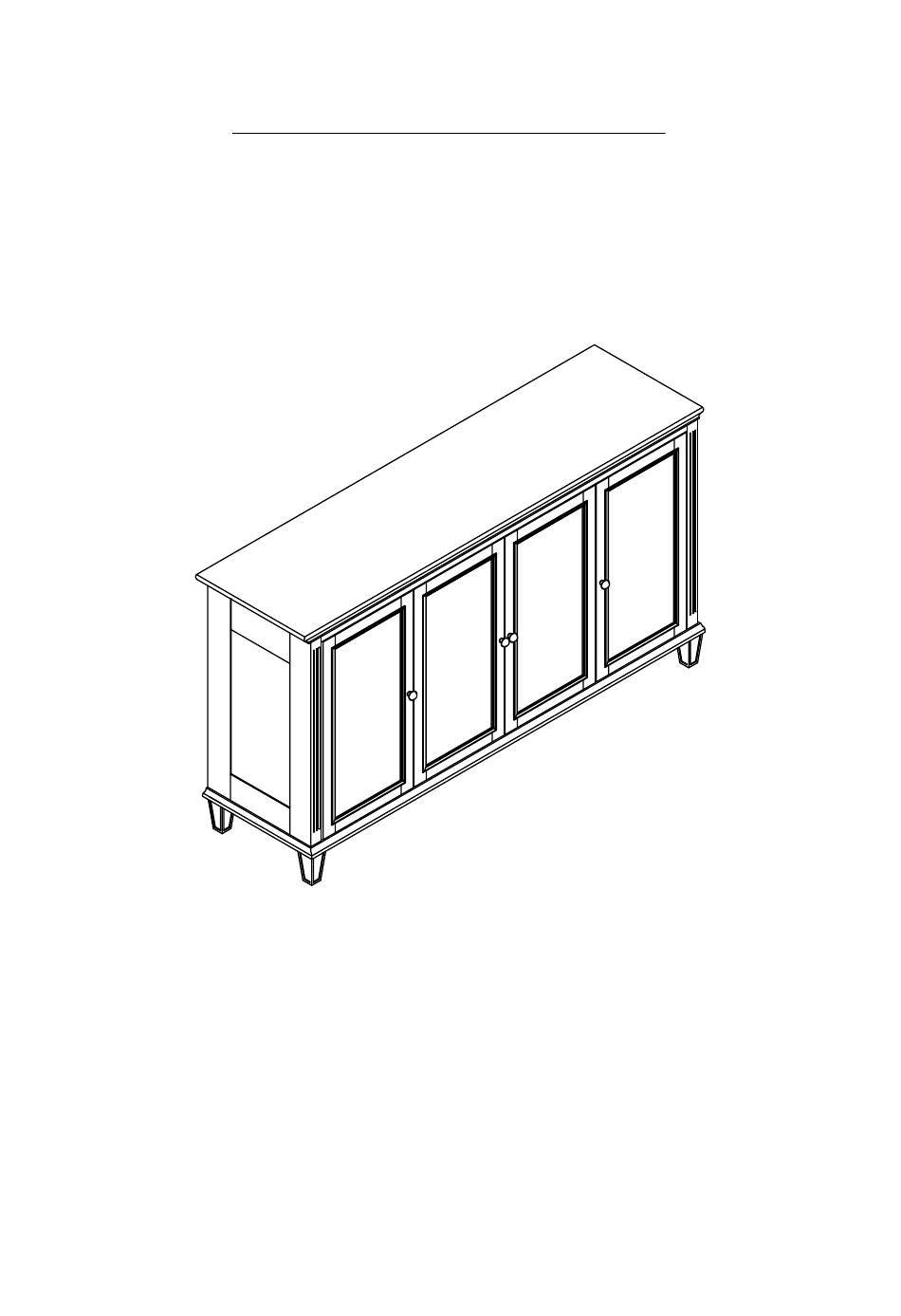

  • Page 1 HULALA SBYL1019 ITEM NO. NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/26...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soap with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
  • Page 3 2PERSONEN 03/26...

  • Page 4: Parts List

    PARTS LIST 04/26...
  • Page 5 PARTS LIST 05/26...

  • Page 6: Hardware List

    HARDWARE LIST ∅ ∅ 3*15mm 3*15mm ∅ 3*20mm ∅ 1/4"*58mm ∅ 4*25mm ∅ ∅ ∅ 5/32"*18mm 4"*38mm 4"*38mm TOOL LIST 1/4" 06/26...
  • Page 7 HARDWARE SPARE LIST ∅ ∅ 1/4"*58mm 3*15mm ∅ 4"*25mm 07/25...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-1 1.Connect part(A3) to part (A) with screw #1, tight screw with screwdriver #15. ∅ 3*15mm 08/26...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-2 1.Connect part(J/K) to part (B) with bolt #2, tight bolt with allen wrench #16.. ∅ 1/4"*58mm 9/26...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert the part (D/E) into the corresponding holes in the part(C/F), make sure all the holes line up and tighten it with allen wrench #16 as shown in the picture. 10/26...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert the part (G/H) and the unit pre-assembled at step 3 into the corresponding holes in the part(B), make sure all the holes line up and tighten it with allen wrench #16 as shown in the picture. C&F C&F G&H...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-5 1.Insert top panel (A) into the corresponding holes in the unit pre-assembled at step 4, make sure all the holes line up and tighten it with allen wrench #16 as shown in the picture. C&F C&F G&H 12/26...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-6 1.Insert back panel (I) into the groove of the unit pre-assembled at step 5, make sure all the holes aligned and use screw 3# to attach them , tight screw with screwdriver 15#. ∅ ∅ 3*15mm 3*20mm 13/26...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-7 1.Insert shelf holder 6# to the unit pre-assembled at step 5 and attach the part(N/O) to them. Shelf holder can be adjusted up or down 6 x20 N x2 N x2 14/26...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-8 1.Connect part (R/P) to part (Q) with screw #7, tight screw with screwdriver #15, slid part(V) to part (R/P). please pay attention to the direction of the groove on the part (V). （ 2.slid part (S) to part R/P), make sure it also in the groove of part (Q).
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-9 1.Connect the unit pre-assembled at step8 to part (t) with screw #7, tight screw with screwdriver #15, connect part(U) to the drawer bottom with screw#7, tight screw with screwdriver #15. ∅ 4*25mm 16/26...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-10 1.Slide the part (W) to the drawer as picture, attach the part( A4) to the drawer . 17/26...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-11 1.Connect part (X/Z) to part (Y) with screw #7, tight screw with screwdriver （ #15, slid part (A1) to part X/Z), make sure it also in the groove of part (Y). （ connect the part (X/Z) to the part A2) with screw #7, tight screw with screwdriver #15.
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-12 1.Attache the big drawer to the unit pre-assembled at step 7 . Attention When installing the ： drawer slide the steel ball slide rail of side panel to the most front as picture show Female slider Male slider Schematic diagram of slide rail disassembly 19/26...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-13 1.Connect the part #8 and #9 to the unit pre-assembled at step 12 with screw #3, tight screw with screwdriver #15. ∅ 3*15mm 20/26...
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-14 1.Connect the part(L/M) to the unit pre-assembled at step 13 as picture, connect the knob #10 to the door with bolt #11, tight bolt with screwdriver #15. ∅ 5/32"*18mm 21/26...
  • Page 22 ASSEMBLY INSTRUCTIONS STEP-15 1.Attache the small drawer to the unit pre-assembled at step 14 . Attention When installing the ： drawer slide the steel ball slide rail of side panel to the most front as picture show Female slider Male slider Schematic diagram of slide rail disassembly 22/26...
  • Page 23 ASSEMBLY INSTRUCTIONS STEP-16 Attention: After installation, adjust the adjustable leveler to keep the cabinet balanced . 23/26...
  • Page 24 ASSEMBLY INSTRUCTIONS STEP-17 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part #5 on the back of panel (I); Drill and insert the expandable screw #12 by hammer. Assemble the part #5 to the wall. Align the hole in the part #5 with the expandable screw #12 , use screw #13 to attach it and tighten by screwdriver #15 .
  • Page 25 ASSEMBLY INSTRUCTIONS STEP-18 Let the plastic belt #14 pass through the both part #5 and pull tightly. 14 x2 14 x2 25/26...

  • Page 26: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
