HULALA
H
O
M
E

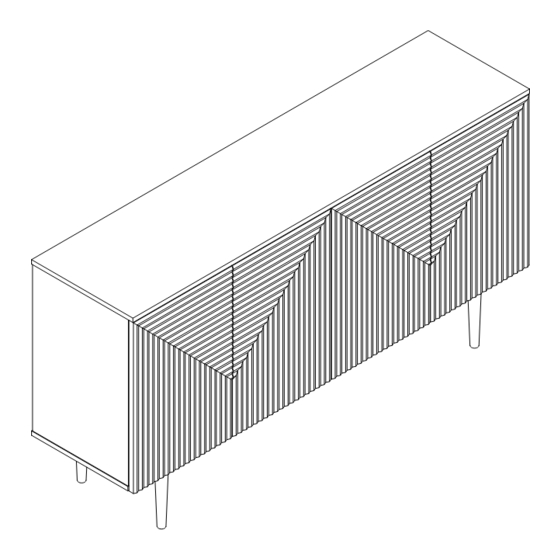

ITEM NO.SBSD0922
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/41

Advertisement

loading
Need help?

Need help?

Do you have a question about the SBSD0922 and is the answer not in the manual?

Questions and answers

Related Manuals for HULALA HOME SBSD0922

Summary of Contents for HULALA HOME SBSD0922

  • Page 1 HULALA ITEM NO.SBSD0922 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/41...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.

  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSONEN 03/41...

  • Page 4: Parts List

    PARTS LIST 04/41...
  • Page 5 PARTS LIST 05/41...

  • Page 6: Hardware List

    HARDWARE LIST x130 Ø6/35mm Ø6*30mm Ø3.5*14mm Ø6*50mm Ø6*40mm Ø7*50mm Ø8*30mm Ø15*11 Ø20 Ø4*35mm Ø8*30MM two pairs Ø6*30mm TOOL LIST 06/41...
  • Page 7 HARDWARE SPARE LIST Ø6/35MM Ø3.5*14mm Ø6*50mm Ø6*40mm Ø7*50mm Ø6*30mm Ø4*35mm Ø6*30mm 07/41...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-1 Align the holes in part D&F, insert wooden dowel #7 by hand. Ø8*30mm 08/41...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-2 Use #21 screws to fix the wood M to the corresponding position of the panel (D), and tighten the screws with a #23 Allen key. Use #21 screws to fix the wood L to the corresponding position of the panel (F), and tighten the screws with a #23 Allen key.
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-3 Lift the black button up with your hand and pull out the movable rail. Female slider Male slider two pairs 10/41...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-4 Use #1 screws to fix the slide rail #19 to the corresponding position of the part (M&L), and tighten the screws with a screwdriver#24. Ø3.5*14mm 11/41...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-5 Use #1 screws to fix the slide rail #19 to the corresponding position of the part (G), and tighten the screws with a screwdriver#24. Ø3.5*14mm 12/41...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-6 Prepare for part A. Align the holes in part A, insert wooden dowel #7 by hand, tighten with screwdriver #24 tighten #5. Ø8*30mm Ø6/35mm 13/41...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-7 Connect the part A with part C&D&E&F&G. align the hole in the part C&D&E&F&G. ,insert the bolt #5 and wooden dowel #7 in part A into part C&D&E&F&G . insert cam bolt #8 into the corresponding hole of side panel C&D&E&F&G,and tighten the nuts #8 with a screwdriver #24.
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-8 1.Manually insert #7 wooden dowels (C&D&E&F&G),Use screw #1 to attach wine glass holder #20 to the corresponding hole of panel(A), tighten screw with screwdriver #24. Ø3.5*14mm Ø8*30mm 15/41...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-9 1.slide in the part J into the groove in part D,G and C&E ,slide in the part K into the groove in part G&F and F&E. make sure they are also in groove in part A. 16/41...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-10 Connect the part B the pre-assembled unit in step 8. Then align the holes in part B,Insert screw #4 and push it down so that it connects to parts C&D&E&F&G. Next,and tighten the screw #4 with an Allen key #23. Ø7*50mm 17/41...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-11 1.Align the holes of part b, insert the bolt #6, and bolt the middle foot into the bolt #Q . Ø6*30mm 18/41...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-12 1.Prepare the leg racks. Align the holes of the a part with the holes of the b part, insert the screw #3 , and tighten the screw #3 with the allen key #23 . Ø6*40mm 19/41...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-13 1.connect the leg frame to the cabinet.Attach the leg frame to the pre-assembled unit in step 9 with a screw #2 and tighten #2 with a allen key #23 . After all the screw rods are put into the screw holes, tighten them all again.
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-14 1.Insert hardware #9 into part K&J as shown, screw in screw #1 using screwdriver # and tighten fully. #1x24 Ø3.5*14mm 21/41...
  • Page 22 ASSEMBLY INSTRUCTIONS STEP-15 22/41...
  • Page 23 ASSEMBLY INSTRUCTIONS STEP-16 Prepare for part T&V. Align the holes in part A, i tighten with screwdriver #24 tighten #5. Ø6/35mm 23/41...
  • Page 24 ASSEMBLY INSTRUCTIONS STEP-17 Connect the part R with part T&V align the hole in the part R. ,insert the bolt #5 in part T&V into part R . insert cam bolt #8 into the corresponding hole of side panel R ,and tighten the nuts #8 with a screwdriver #24.
  • Page 25 ASSEMBLY INSTRUCTIONS STEP-18 1.Attach the part X to the pre-assembled unit in step 16 with a screw #12 and tighten #12 with a screwdriver #24 T&V Ø4*35mm 25/41...
  • Page 26 ASSEMBLY INSTRUCTIONS STEP-19 Use #1 screws to fix the slide rail #19 to the corresponding position of the part (T&V), and tighten the screws with a screwdriver#24. T&V Ø3.5*14mm 26/41...
  • Page 27 ASSEMBLY INSTRUCTIONS STEP-20 1.Connect part (U&S) to part W using screw #12 and tighten it with screwdriver #24 .Slide in the part (Y) into the groove in part (S&U). make sure they are also in groove in part (W). Ø4*35mm 27/41...
  • Page 28 ASSEMBLY INSTRUCTIONS STEP-21 Align the holes in part P, tighten with screwdriver #24 tighten #5. Connect the part P with part S&U align the hole in the part S&U. ,insert the bolt #5 in part P into part S&U . insert cam bolt #8 into the corresponding hole of side panel S&U ,and tighten the nuts #8 with a screwdriver #24.
  • Page 29 ASSEMBLY INSTRUCTIONS STEP-22 1.Use screw# 1 to attach hinge #22 to the corresponding hole of panel(W&X), tighten screw with screwdriver #24. Ø3.5*14mm 29/41...
  • Page 30 ASSEMBLY INSTRUCTIONS STEP-23 1.Use screw #1 to attach the hinges #18 to door panel (O&N) ， tighten screws #6 with screwdriver #24. 1.Use screw# 1 to attach handle #11 to the corresponding hole of panel(O&N), tighten screw with screwdriver #24. #1 #1 #1 #1 #11 x2...
  • Page 31 ASSEMBLY INSTRUCTIONS STEP-24 1.Use screw #1 to attach left door (N) and right door (O) to pre-assemble unit at step 14 ,tighten screw #1 with screwdriver #24 . Ø3.5*14mm 31/41...
  • Page 32 ASSEMBLY INSTRUCTIONS STEP-25 1.Use screw #1 to attach the hinges #17 to door panel (O&N) ， tighten screws #6 with screwdriver #24. 1.Use screw# 1 to attach handle #11 to the corresponding hole of panel(O&N), tighten screw with screwdriver #24. #1 #1 #11 x2 Ø3.5*14mm...
  • Page 33 ASSEMBLY INSTRUCTIONS STEP-26 1.Use screw #1 to attach middle door (O) to pre-assemble unit at step 25 ,tighten screw #1 with screwdriver #24 . Ø3.5*14mm 33/41...
  • Page 34 ASSEMBLY INSTRUCTIONS STEP-27 1.Use screw #1 to attach middle door (N) to pre-assemble unit at step 27 ,tighten screw #1 with screwdriver #24 . Ø3.5*14mm 34/41...
  • Page 35 ASSEMBLY INSTRUCTIONS STEP-28 CM ncealed hinges are three-way adjustable: HM rizM ntal by screw adjustment! CM ncealed hinges are three-way adjustable: In-and-M ut by lM M sening the hinge arm mM unting screw M r via cam adjustment! CM ncealed hinges are three-way adjustable: Vertical via slM ts in the mM unting Nlate M r via cam adjustment!
  • Page 36 ASSEMBLY INSTRUCTIONS STEP-29 Female slider Male slider 36/41...
  • Page 37 ASSEMBLY INSTRUCTIONS STEP-30 Place the adjustable shelf #H&I into the pre-assembled unit in step 30 and insert the shelf pins #16 into the side panels C&E&F. #16x12 37/41...
  • Page 38 ASSEMBLY INSTRUCTIONS Ø3.5*14mm STEP-31 Use screw #1 to attach part #13 to pre-assemble unit at step 31 , tighten screws with screwdriver #24 38/41...
  • Page 39 ASSEMBLY INSTRUCTIONS Ø4*35mm STEP-32 Install the anti-collapse device. 2.Mark the position on the wall, that corresponds to the location of part#13 on the of panel (A); Drill and insert the expandable screw by hammer. Assemble the part #13 to the wall. Align the hole in the part #13 with the expandable screw #15 , use screw #12 to attach it and tighten by screwdriver#24.
  • Page 40 ASSEMBLY INSTRUCTIONS STEP-33 1.Let the plastic belt #14 pass through the both part #13 and pull tightly. #14x2 #14x2 40/41...

  • Page 41: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
