12. After assigning hard disk to the RAID Array, press F7.
13. The clear disk data prompt appears.
14. Press Y to clear all drive data, and the Array List window will appear.
15. Press B (Set Boot) to make the array bootable (the Boot column should read Yes).
16. Press Enter to access the Array Detail window which displays information on the selected Array.

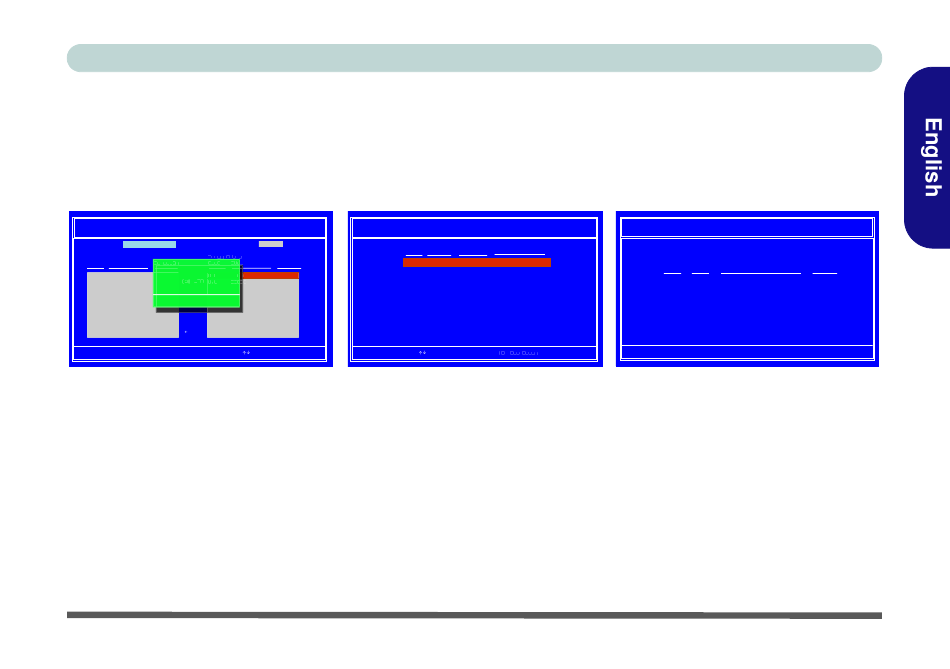

MediaShield Utility Jun 23 2005
- Define a New Array -
RAID Mode : Mirroring Striping Block:
Free Disks Array Disks y
Port Disk Model Capacity p y Port Dis s k Model
2.0 TOS S H H HIBA MK8032 74.53GB
Clear disk data?
[ ] Add
2.1 TOS S H HIBA MK8032 74.53GB H
[Y] YES [N] NO
[ ] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [
Figure 17 -
17. If you want to mark a disk as empty and wipe out all the contents (note: all data will be destroyed), then press C.
18. Press Y to wipe out all the data, otherwise press N.
19. Press Enter to return to the Array List window, and then press Ctrl + X to exit.
20. You will now need to install Windows XP.
21. Insert the Microsoft Windows OS CD into the CD/DVD drive, and connect the external USB floppy disk drive to the
notebook computer (make sure that the CD/DVD drive is set as the first device in the "Boot priority order").
22. Press a key when you see the message "Press any key to start up from the CD/Press any key to boot from CD".
23. Press the F6 key when you see the message "Press F6 if you need to install third party SCSI or RAID driver".
24. When the Windows Setup menu appears, press the <S> key to "Specify Additional Device".
