Use cable ties to bundle up cables properly. Please do not connect two or more cable ties to
bundle up cables.

After bundling up cables with cable ties, cut off the remaining part. The cut should be
smooth and trim, without sharp corners, as shown in

When cables need to be bent, please bundle them up but do not tie them where the cables
will be bent, as shown in

Cables not to be assembled or remaining parts of cables should be folded and placed in a
proper position of the rack or cable trough. The proper position refers to a position that does
not affect switch performance or damage the switch or cable.
220 V and –48 V power cords must not be bundled on the guide rails of moving parts.


Leave a margin for the power cords connecting moving parts such as door grounding wires
after they are connected to avoid suffering tension or stress. When the moving part is
installed, the remaining cable part should not touch heat sources or sharp corners. If heat
sources cannot be avoided, high-temperature cables should be adopted.
Bundling Up Cables (2)

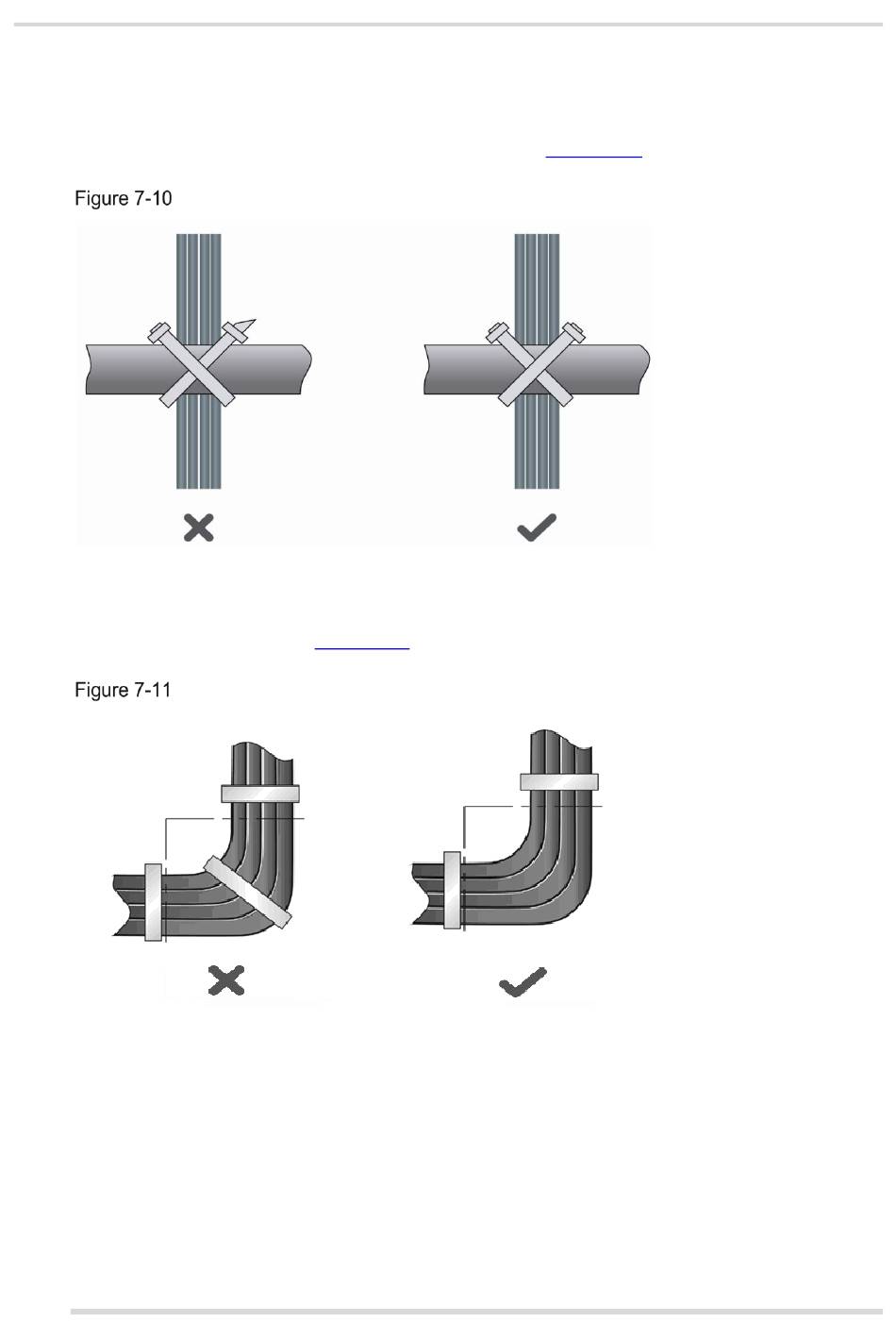

Figure 7-11.
Bundling Up Cables (3)
Figure 7-10.
