7.1.2

Pasting Labels

Fill in the label content on the full-page label paper before attaching the label, and then paste it
on the power cord or signboard wire buckle.
(1) Label pasting position
Paste the label 2 cm (0.79 in.) away from the plug. In some specific situations, avoid cable
bending or the position that affects power cord installation. The label is pasted on the
power cord with the long text area always facing right or downwards, as shown in
1. The flowchart is described as follows:
a
At the label attachment, keep the label facing right when the power cable is laid
vertically.
b Keep the label facing downwards when the power cord is laid horizontally.

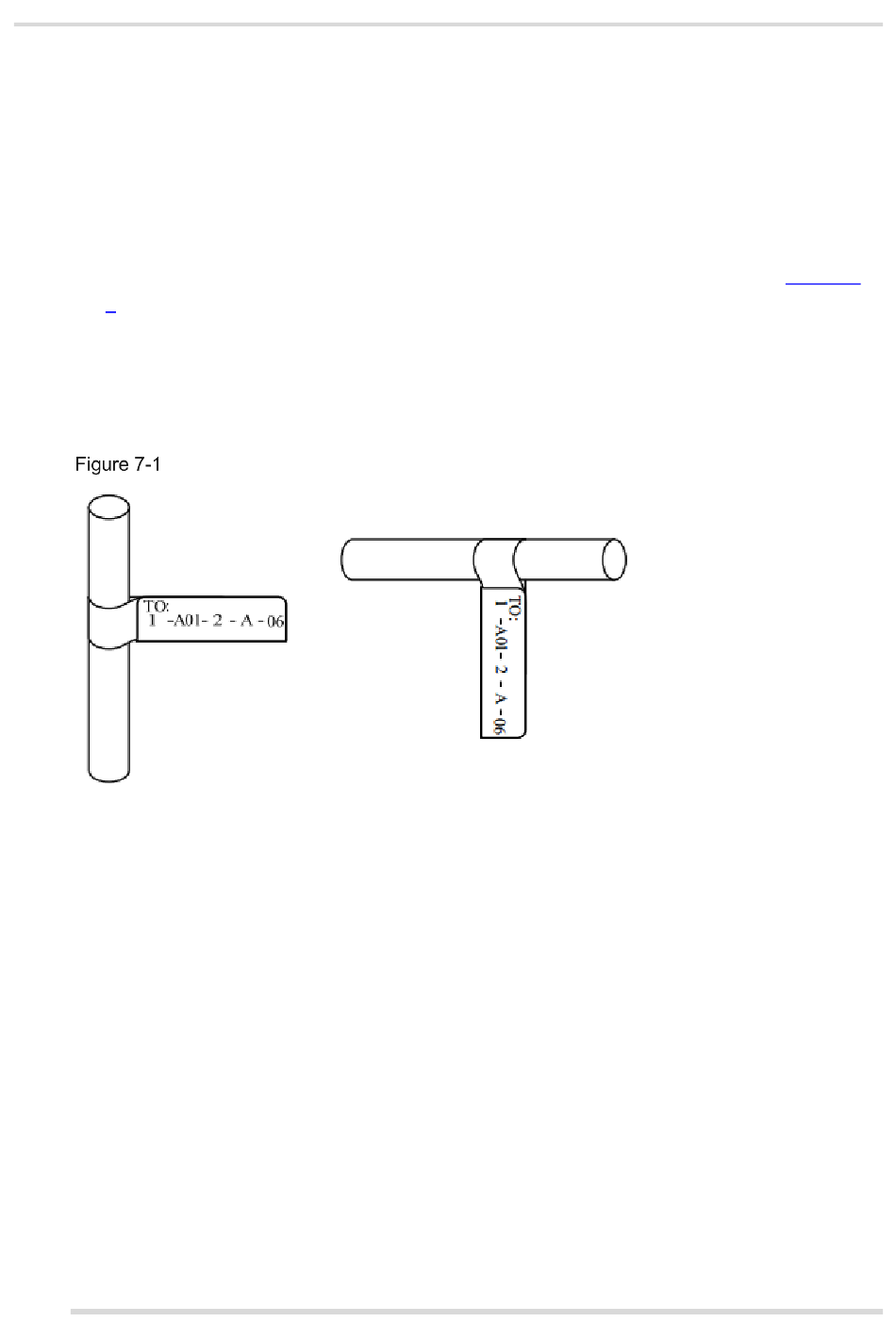

Keeping the Label Text Area Facing Right or Downwards
(2) Labeling procedure
62
