Hardware Installation and Reference Guide
Reliability
1.4.2

M6900-32CQ

1. Appearance

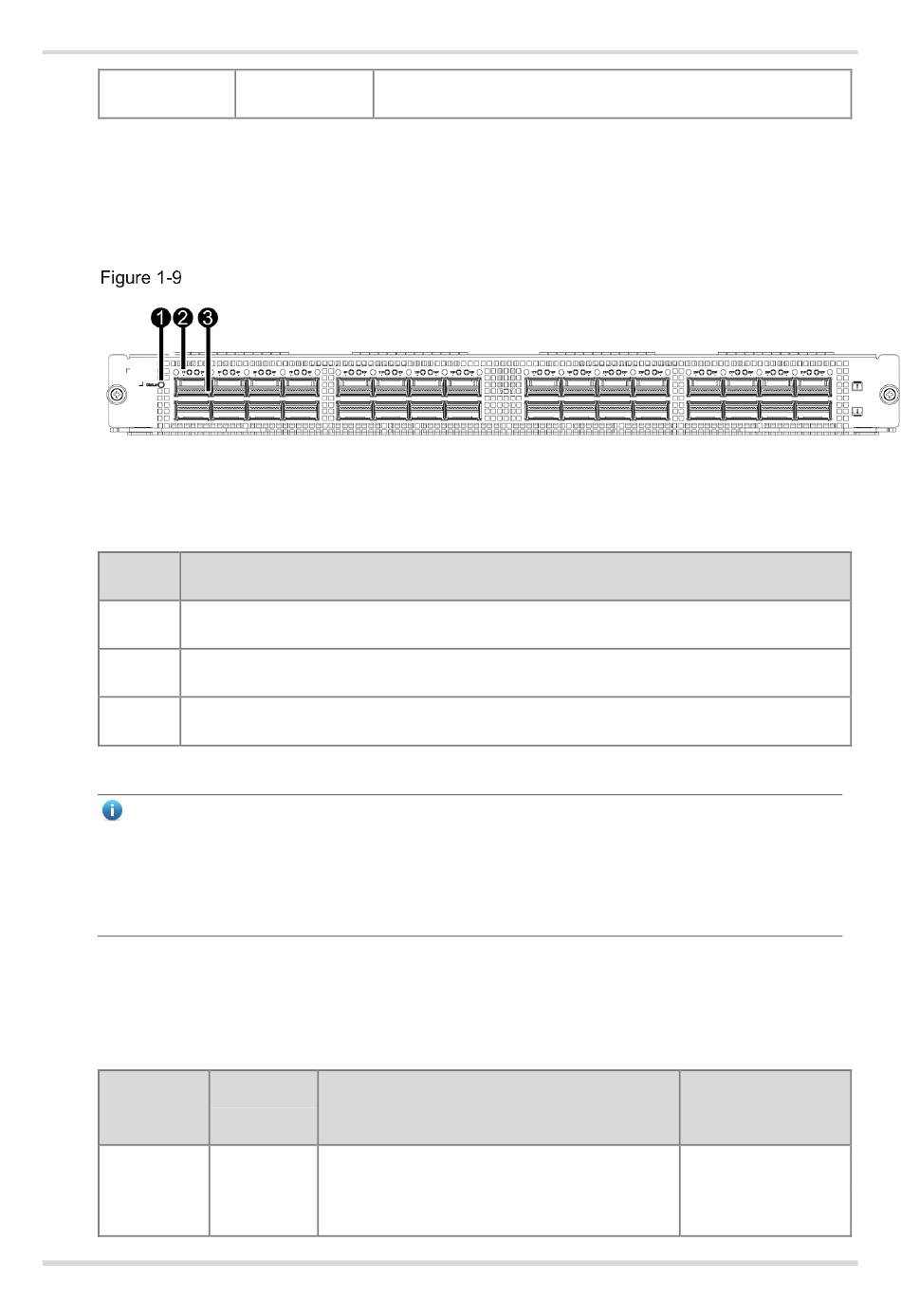

Front Panel Structure
Table 1-12
No. Component
1 Expansion module status LED
2 QSFP28 port LED
3 100GE QSFP28 port
Note

The M6900-32CQ has two rows of ports. The ports on the top row start with 1 followed by
the remaining odd-numbered ports, and the ports on the bottom row start with 2 followed
by the remaining even-numbered ports.

The port LEDs are numbered from left to right corresponding to ports 1F to 32F.
2. Ports
Table 1-13
Port
100GE
QSFP28
Hot swapping Supported
Front Panel Components
Ports
Connector
Description
Type
The 100GE QSFP28 port is backward
Subject to
compatible with 40GE and can be split into
the optical
four 10GE or 25GE ports for downlink data
16
Overview
Accessory
40GE optical
module
