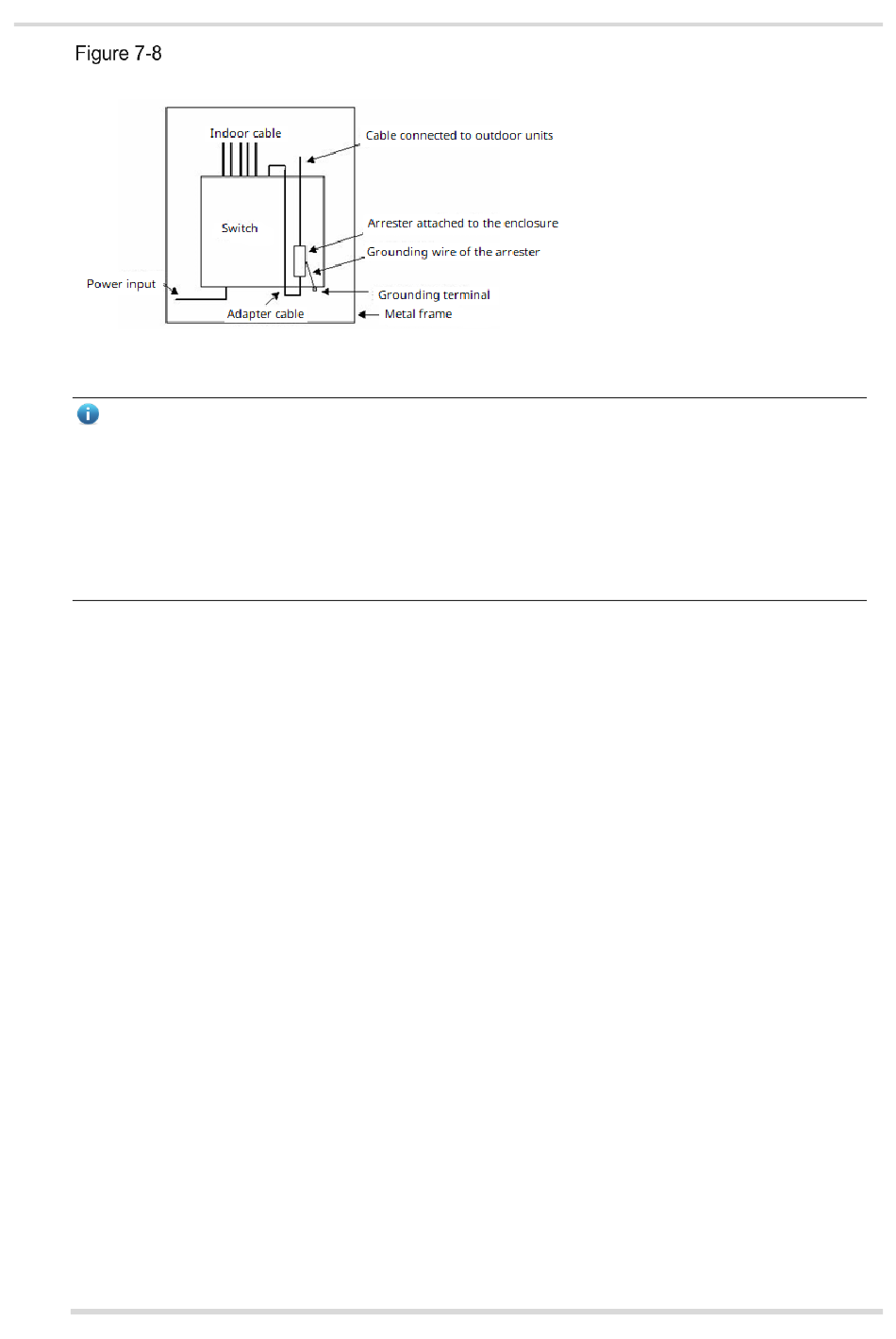

Installing an Ethernet Port Arrester
Note

The Ethernet port arrester is only for the 10/100 Mbps electrical ports with an RJ-45
connector.

The Ethernet port arrester is not delivered with the switch. Please purchase it as required.
The Ethernet port arrester user manual contains technical parameters and maintenance
and installation instructions for the Ethernet port arrester. Carefully read this manual
before installation.
Caution is needed to avoid the following cases:

Reversed installation direction of the arrester. Connect the external network cable to the IN
end and connect the Ethernet port of the switch to the OUT end.

Poor grounding of the arrester. The grounding wire of the arrester should be as short as
possible to ensure that it is in good contact with the grounding terminal of the switch. Use a
multimeter to confirm the contact condition after grounding.

Incomplete arrester installation. If there is more than one port connected to external power
cords, arresters need to be installed on all connection ports for the purpose of surge
protection.
7.4

Site Selection


The equipment room should be at least 5 km
sources, such as the smelter works, coal mine, and thermal power plant. The equipment
room should be at least 3.7 km
the chemical factory, rubber factory, and electroplating factory. The equipment room should
be at least 2 km
and leather plant. If the pollution source is unavoidable, the equipment room should be
located on the windward side of the pollution source perennially with advanced protection.

The equipment room should be at least 3.7 km
lake. Otherwise, the equipment room must be sealed, with air conditioner installed for
(12,139.11 ft.)
(6,561.68 ft.) away from light pollution sources, such as the food factory
(16,404.20 ft.) away from heavy pollution
away from medium pollution sources, such as
(12,139.11 ft.) away from the sea or salt
