Switch
Extend
Recovery
Note:
The numbers in the brackets indicate the ports where the feature takes effect. For example,
when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps. For
DS1018GMP, port 1–16 can provide power for PDs.
SFP Port
Designed to install the SFP module. DS1018GMP has 2 SFP ports which support 1000 Mbps SFP
module connection. An SFP Port (port 17F/port 18F) and the associated 10/100/1000 Mbps RJ45
Port (port 17/port 18) are called a "Combo" port, which means they cannnot be used simultaneously.
Rear Panel
■

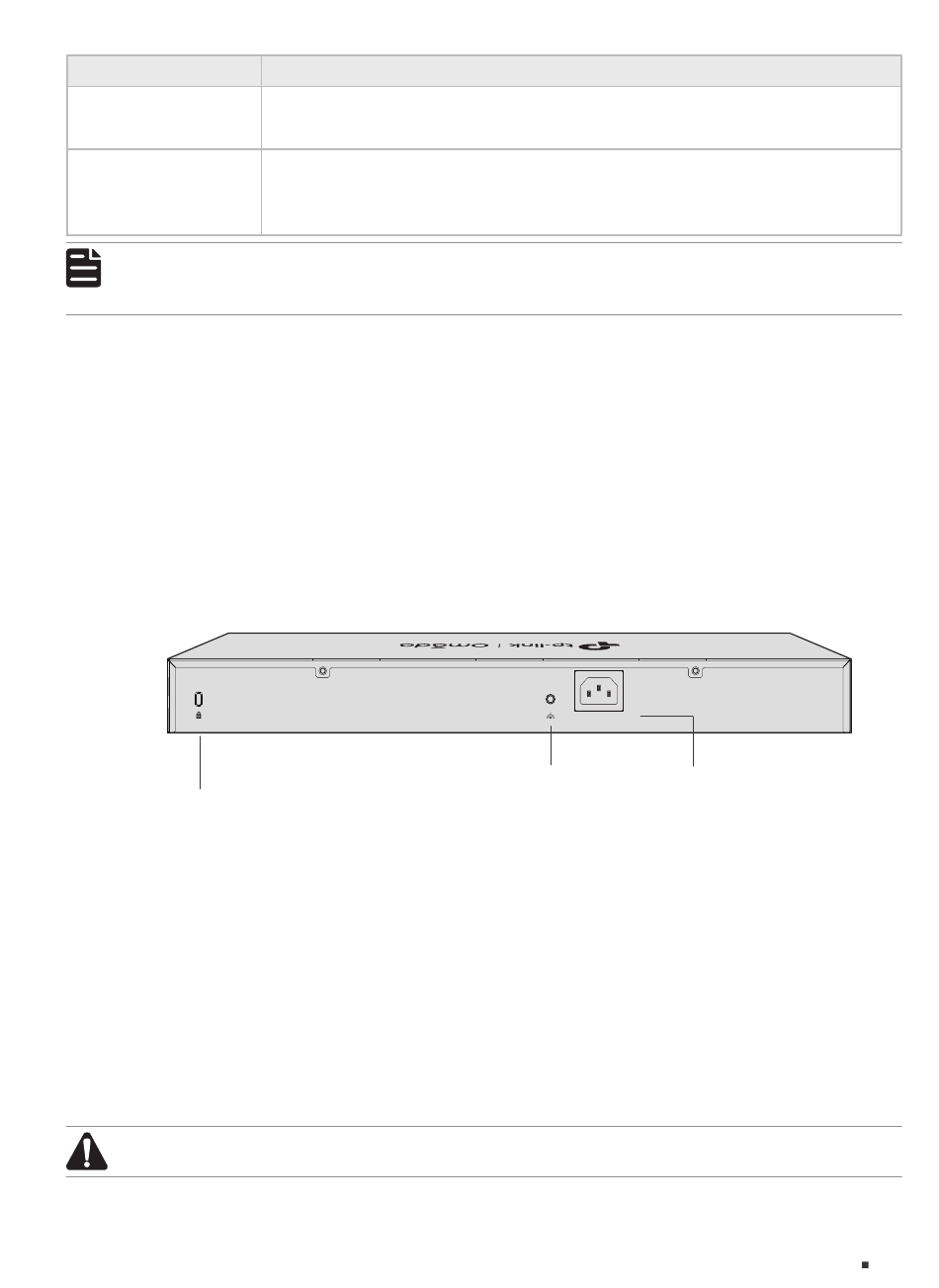

The rear panel is shown as the following figure.
Figure 1-2 Rear Panel
Kensington Security Slot
Kensington Security Slot
Secure the lock (not provided) into the security slot to prevent the device from being stolen.
Grounding Terminal
The switch already comes with lightning protection mechanism. You can also ground the switch through
the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed information, refer to the
Lightning Protection Guide from the Related Documents of our website:
https://www.tp-link.com/us/configuration-guides/lightning_protection_guide.
Power Socket
Plug the female connector of the power cord directly into the power socket and plug the male connector
into an AC outlet. Make sure that the voltage of the power supply meets the requirement of the input
voltage (100–240 V ~ 50/60 Hz).
Caution:
You should use the provided power cord.
Indication
Off: Ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch finds that the PD works abnormally, the switch will reboot it.
Unmanaged Rackmountable Switch
100-240V~ 50/60Hz 4.0A
Grounding Terminal
Power Socket
