TP-Link Omada DS110GMP Installation Manual

Installation Guide
Unmanaged Desktop PoE+ Switch
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Extend
(for DS108GPL/DS110GMP)
Off: Ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Priority
(for DS110GMP)
Off: All the ports transmit data with the same priority.
On: The specific ports transmit data with a higher priority than other ports.
Note: For simplicity, we will take DS108GPL for example throughout the Guide.

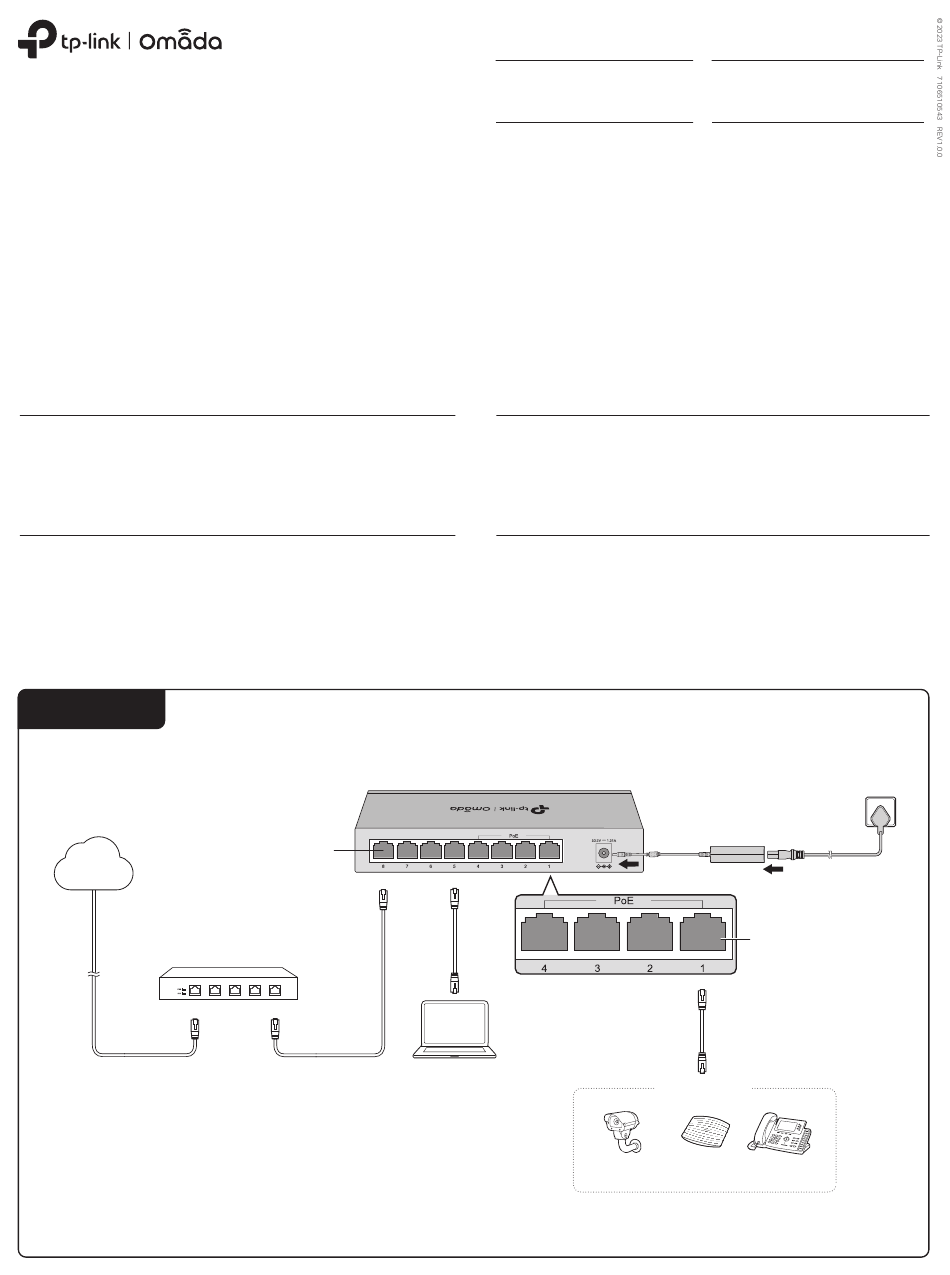

Connection
Internet
WAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. DS110GMP has two uplink ports, which typically connect to uplink devices like routers.
3. The combo port of DS110GMP consists of one RJ45 port and one SFP slot, which cannot be used
simultaneously.
4. The SFP slot of DS110GMP needs to work with a gigabit SFP module.

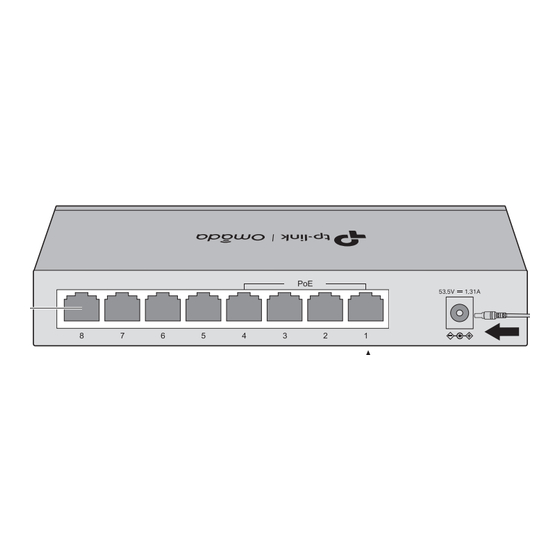

Ethernet Ports (1-8)
Router
LAN Port
LED Explanation
Power
On: Power on
Off: Power off
Link/Act; Uplink 1, Uplink 2
Green On:
Running at 1000 Mbps, but no activity.
Green Flashing:
Running at 1000 Mbps and is transmitting or
receiving data.
Yellow On:
Running at 10/100 Mbps, but no activity.
Yellow Flashing:
Running at 10/100 Mbps and is transmitting
or receiving data.
Off:
No device is linked to the corresponding port.
Recovery
(for DS108GPL/DS110GMP)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD).
When the switch finds that the PD works abnormally, the switch will reboot it.
Isolation
(for DS110GMP)
Off: Ports can transmit data with each other.
On: Specific ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports.
PC
IP Camera
PoE Status
On: Providing PoE power
Flashing: PoE fault
Off: Not providing PoE power
PoE Max
For DS108GPL:
On: 57 W≤Total power supply < 64 W
Flashing: Total power supply ≥ 64 W
Off: Total power supply < 57 W
For DS110GMP:
On: 116 W≤Total power supply < 123 W
Flashing: Total power supply ≥ 123 W
Off: Total power supply < 116 W
DC Power Adapter
AC Power Cord
PoE Ports (1-4)
PoE Devices
AP IP Phone
