Rack Installation
■
To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:
1. Check the efficiency of the grounding system and the stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as
illustrated in the following figure.

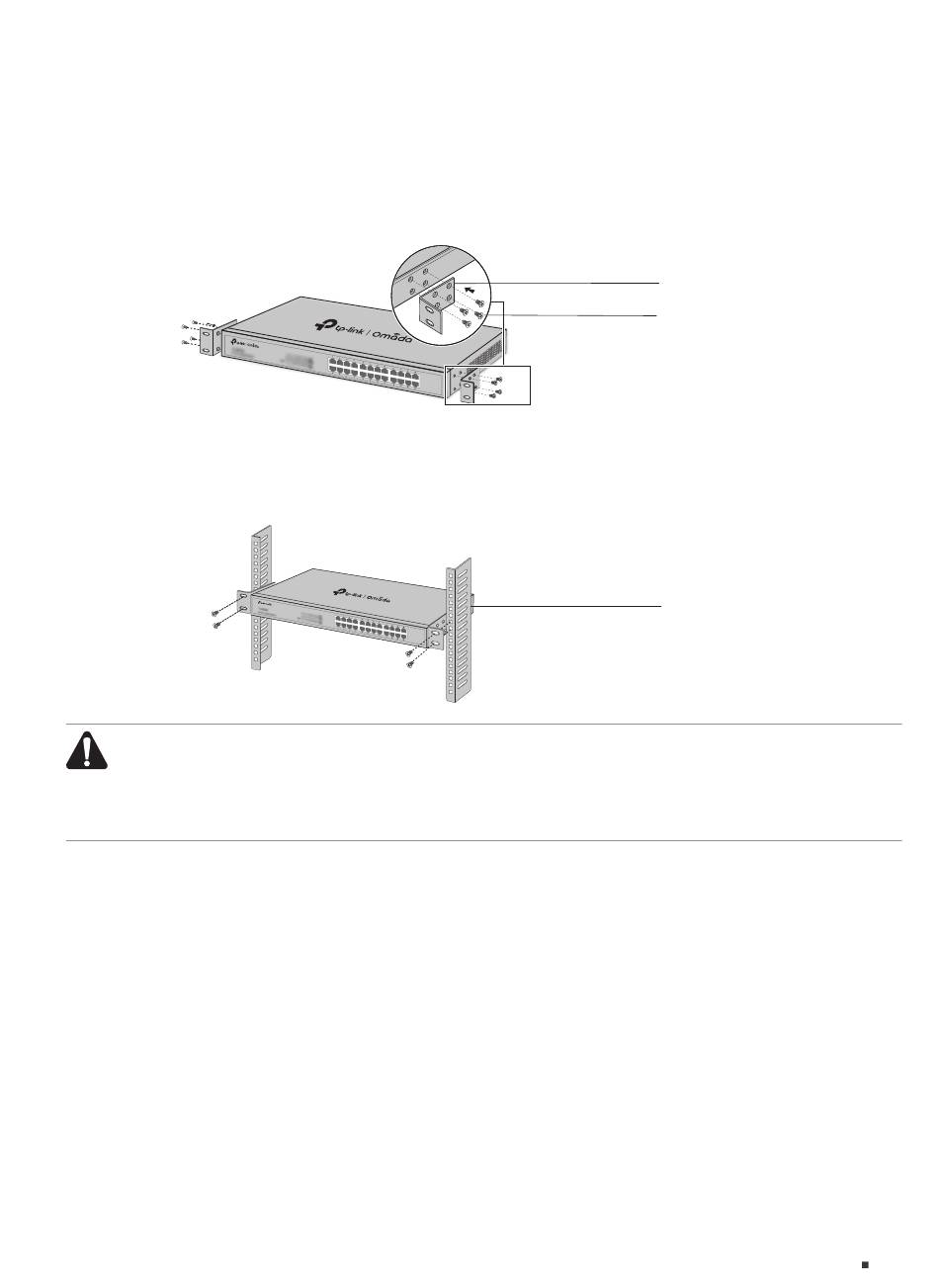

Figure 2-2
Bracket Installation
3. After the brackets are attached to the device, use suitable screws (not provided) to secure the
brackets to the rack, as illustrated in the following figure.
Figure 2-3
Rack Installation
Caution:
Leave 5 to 10 cm gaps around the devices for air circulation.
■
Avoid placing heavy things on the device.
■
Mount devices in sequence from the bottom to top of the rack and ensure a certain clearance
■
between devices for the purpose of heat dissipation.
Unmanaged Rackmountable Switch
Rack-mounting Bracket
Screw
Rack
Installation
7
