TP-Link Omada DS105GP Installation Manual

Installation Guide
5/6/8-Port Gigabit Desktop PoE Switch
Switches Explanation
Note: The port numbers in brackets indicate the ports where the feature takes effect. For example, when Extend (Port 1-2) is toggled to On, the Extend mode will be enabled for ports 1-2.
Extend
Off: The corresponding ports run at 10/100/1000 Mbps and support PoE power supply up to 100 m away.
On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m away.
Note: For simplicity, we will take DS105GP for example throughout this Guide.

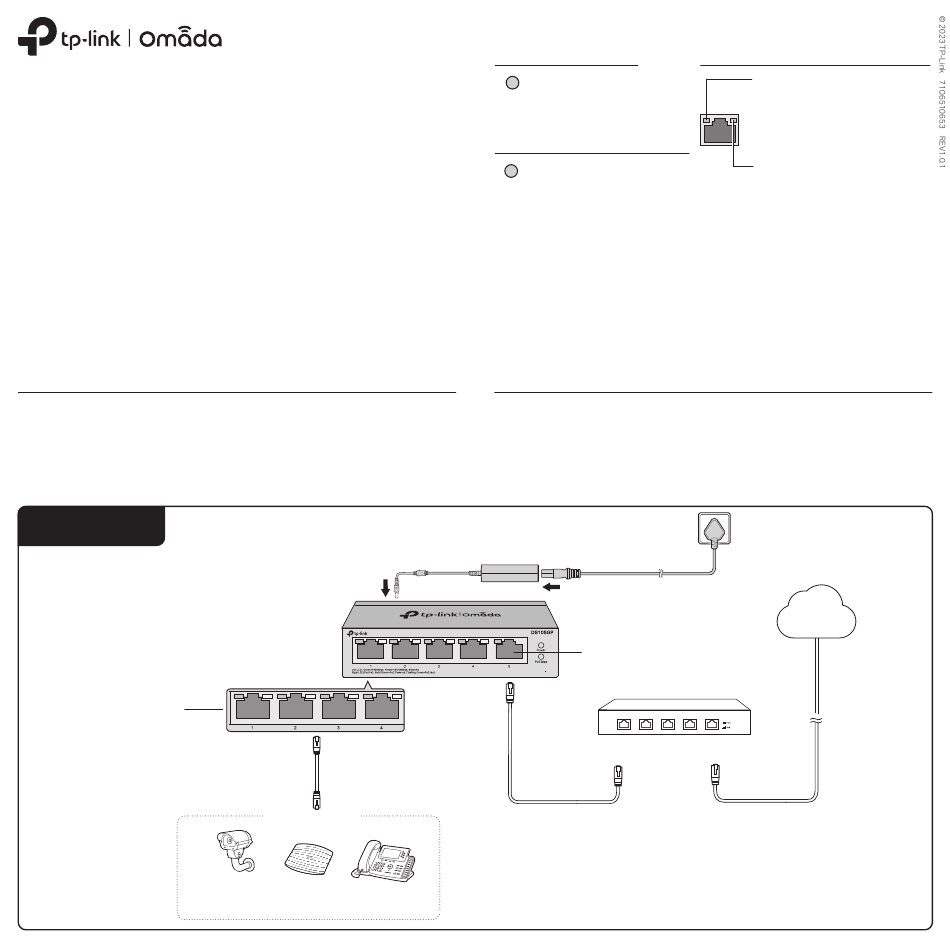

Connection
PoE Ports (1-4)
Omada 5-Port Gigabit Desktop Switch with 4-Port PoE+
PoE Devices
IP Camera AP IP Phone
LED Explanation
Power
On: Power on
Off: Power off
Power
PoE MAX
DS105GP/DS108GP
On: 58 W ≤ Total power supply < 65 W
PoE Max
Flashing: Total power supply ≥ 65 W
Off: Total power supply < 58W
DS106GPP
On: 57 W ≤ Total power supply < 64 W
Flashing: Total power supply ≥ 64 W
Off: Total power supply < 57W
Recovery
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When the switch
finds that the PD works abnormally, the switch will reboot it.
DC Power Adapter
Ethernet Ports (1-5)
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. DS105GP/DS108GP can supply up to 30 W for each PoE port and 65 W for all PoE ports.
3. DS106GPP can supply up to 60 W for port 1, 30W for other single PoE port, and 64 W for
all PoE ports.
Link/Act and PoE Status
On (Green): Connected to a 1000 Mbps
device
On (Yellow): Connected to a 10/100
Mbps device
Flashing: Transmitting/receiving data
Off: No device is connected to the
corresponding port.
On: Providing PoE power
Flashing: Current-overload/Short-circuit
Off: Not providing PoE power
AC Power Cord
Internet
Router
WAN Port
