Summary of Contents for TP-Link JetStream L2+

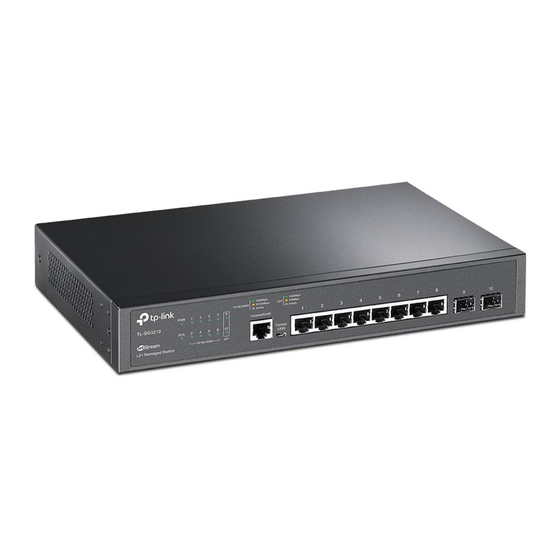

- Page 1 Business Networking Solution Installation Guide JetStream L2/L2+ Managed Switch...
- Page 3 Remind to take notice. The note contains the helpful information for a better use of the product. Related Document The User Guide and CLI Reference Guide of the product are provided on Download Center. To obtain the latest product information, visit the official website: https://www.tp-link.com.
-
Page 4: Table Of Contents
Contents Chapter 1 Introduction ——————————— 01 Product Overview ............01 Appearance ...............01 Chapter 2 Installation ——————————— 09 Package Contents ............09 Safety Precautions ............09 Installation Tools ..............11 Product Installation ............11 Chapter 3 Connection ——————————— 13 Ethernet Port ..............13 SFP/SFP+ Slot ..............13 Console Port ..............13 Verify Installation .............14 Power On ................15 Initialization ................15... -
Page 5: Chapter 1 Introduction
QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data. SNMP, RMON, WEB and CLI Log-in bring abundant management policies. TP-Link JetStream L2/L2+ Managed Switch integrates multiple functions with excellent performance, and is friendly to manage, which can fully meet the need of the users demanding higher networking performance. - Page 6 JetStream L2/L2+ Managed Switch The front panel of TL-SG3210XHP-M2 is shown as the following figure. Figure 1-3 Front Panel of TL-SG3210XHP-M2 Console Port 2.5G SFP+ Slot (RJ45/USB) RJ45 Port The front panel of TL-SG3428 V2.0 is shown as the following figure. Figure 1-4 Front Panel of TL-SG3428 V2.0 24-Port Gigabit L2+ Managed Switch...
- Page 7 JetStream L2/L2+ Managed Switch The front panel of TL-SG3428XMP is shown as the following figure. Figure 1-7 Front Panel of TL-SG3428XMP Console Port SFP+ Slot (RJ45/USB) RJ45 Port The front panel of TL-SG3452 is shown as the following figure. Figure 1-8 Front Panel of TL-SG3452 Console Port 1G RJ45 Port...
- Page 8 JetStream L2/L2+ Managed Switch LEDs For TL-SX3008F Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal. Flashing: Power supply is abnormal. Flashing: The switch works properly. On or Off: The switch works improperly. Green On: Running at 10 Gbps, but no activity.
- Page 9 JetStream L2/L2+ Managed Switch Indication Green On: Running at 10 Gbps, but no activity. Green Flashing: Running at 10 Gbps and transmitting or receiving data. Port 9–10 Yellow On: Running at 1 Gbps, but no activity. Yellow Flashing: Running at 1 Gbps and transmitting or receiving data. Off: No device is linked to the corresponding port.
- Page 10 JetStream L2/L2+ Managed Switch Indication On: Running at 1 Gbps, but no activity. Port 25–28 Flashing: Running at 1 Gbps and transmitting or receiving data. Off: No device is linked to the corresponding port. For TL-SG3428X Indication On: The switch is powered on. Off: The switch is powered off or power supply is abnormal.
- Page 11 JetStream L2/L2+ Managed Switch Indication Green On: Running at 1000 Mbps, but no activity. Green Flashing: Running at 1000 Mbps and transmitting or receiving data. Speed or PoE Yellow On: Running at 10/100 Mbps, but no activity. (When the Speed LED is on) Yellow Flashing: Running at 10/100 Mbps and transmitting or receiving data.
- Page 12 PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/.
-
Page 13: Chapter 2 Installation
JetStream L2/L2+ Managed Switch Chapter 2 Installation Package Contents Make sure that the package contains the following items. Please contact your distributor, if any of the listed items is damaged or missing. The figures are for demonstration only. The actual items may differ in appearance and quantity from the depicted. - Page 14 JetStream L2/L2+ Managed Switch Keep the equipment room at an appropriate level of temperature and humidity. Too much or too little humidity may lead to bad insulation, leakage of electricity, mechanical property changes, and corrosion. High temperatures may accelerate aging of the insulation materials, significantly shortening the service life of the device.
-
Page 15: Installation Tools
Use the signal SPD (Surge Protective Device) when wiring outdoor. ■ Note: For detailed lightning protection measures, go to https://www.tp-link.com/support, search the model number of your switch and go to the product Support web page, refer to the Lightning Protection Guide from the Related Documents: https://www.tp-link.com/us/configuration-guides/lightning_protection_guide/. - Page 16 JetStream L2/L2+ Managed Switch Figure 2-1 Desktop Installation Feet Bottom of the Device Notch Rack Installation ■ To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below: 1. Check the efficiency of the grounding system and the stability of the rack. 2.
-
Page 17: Chapter 3 Connection
JetStream L2/L2+ Managed Switch Chapter 3 Connection Ethernet Port Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shows. Figure 3-1 Connecting the RJ45 Port RJ45 Port RJ45 Cable SFP/SFP+ Slot The following figure demonstrates the connection of SFP/SFP+ slot to an SFP/SFP+ module. Figure 3-2 Inserting the SFP/SFP+ Module SFP/SFP+ Slot... -
Page 18: Verify Installation
JetStream L2/L2+ Managed Switch Connect the console (RJ45) port of the device with your computer by the console cable as the following figure shows. Figure 3-3 Connecting the Console (RJ45) Port Connect the console (USB) port of the device with your computer by the USB cable (not provided) as the following figure shows. -
Page 19: Power On
JetStream L2/L2+ Managed Switch Power On Plug the female connector of the provided power cord into the power socket of the device and plug the positive connector into a power outlet as the following figure shows. Make sure that the voltage of the power supply meets the requirement of the input voltage (100-240 V~ 50/60 Hz). -
Page 20: Chapter 4 Configuration
3. After a successful login, the main page will appear. You can click the menus on the top side and left side to configure the corresponding functions. For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/support/download/. Using the CLI ■... -
Page 21: Controller Mode
None For the detailed configurations, refer to the User Guide and CLI Guide. The guides can be found on the download center of our official website: https://www.tp-link.com/download-center.html Note: For certain devices, you may need to change the password the first time you log in, which will better protect your network and devices. - Page 22 2. Launch a web browser and enter https://omada.tplinkcloud.com in the address bar. 3. Enter your TP-Link ID and password to log in. A list of controllers that have been bound with your TP-Link ID will appear. Then you can click Launch to further configure the controller.
- Page 23 With the Omada app, you can also manage your controller at a local site or a remote site via your mobile device. For the detailed configurations, refer to the User Guide of the controller. The guide can be found on the download center of our official website: https://www.tp-link.com/support/download/. Configuration...
-
Page 24: Appendix A Troubleshooting
JetStream L2/L2+ Managed Switch Appendix A Troubleshooting Q1. What could I do if I forgot the username and password of the switch? Connect the console port of the PC to the console port of the switch and open a terminal emulation program. -
Page 25: Appendix B Specifications
JetStream L2/L2+ Managed Switch Appendix B Specifications Specifications for Switches with RJ45 Ports and SFP/SFP+ Slots Item Content IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab IEEE 802.3af/at (For TL-SG3210XHP-M2, TL-SG3428MP V2.0, TL-SG3428XMP, TL- SG3452P) Standards IEEE 802.3i (Except TL-SG3210XHP) IEEE 802.3ae... - Page 26 JetStream L2/L2+ Managed Switch TL-SG3210: PWR, SYS, 10/100/1000Mbps, SFP TL-SG3210XHP-M2: PWR, SYS, PoE Max, FAN, Speed, PoE, Port 9, Port 10 TL-SG3428MP V2.0: PWR, SYS, PoE Max, FAN, Speed or PoE, SFP, Speed, TL-SG3428 V2.0/TL-SG3428X: PWR, SYS, Link/Act, 1000Mbps, Port 25– TL-SG3428XMP: PWR, SYS, PoE Max, FAN, Speed or PoE, SFP+, Speed, TL-SG3452: PWR, SYS, 10/100/1000Mbps, Port 49–52 TL-SG3452P: PWR, SYS, Speed, PoE Max, FAN, PoE, Port 1–52...
- Page 27 EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
- Page 28 To ask questions, find answers, and communicate with TP-Link users or engineers, please visit https://community.tp-link.com to join TP-Link Community. For technical support, the user guide and other information, please visit https://www.tp-link.com/support, or simply scan the QR code. If you have any suggestions or needs on the product guides, welcome to email techwriter@tp-link.com.cn.
