Installation Guide
5-Port 10G Multi-Gigabit Desktop Switch
Note:
The images in this guide are for demonstration only and may differ from your actual product.

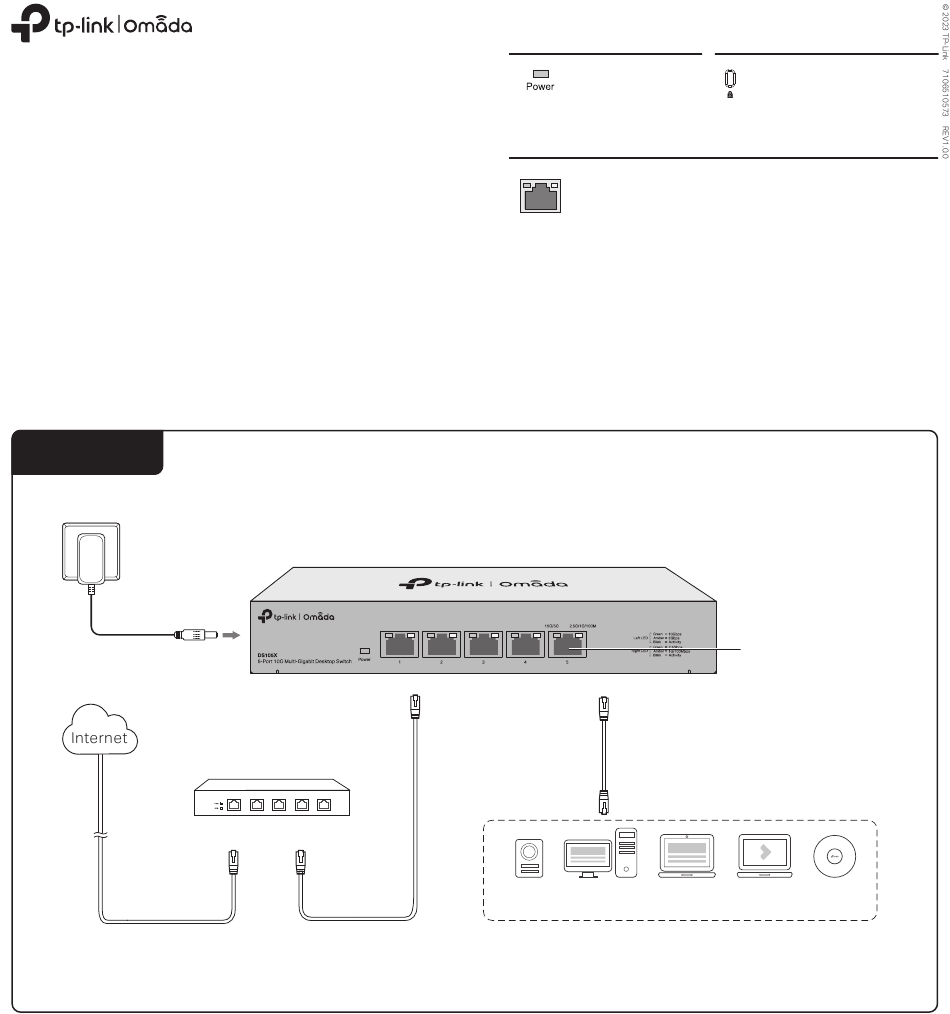

Connection
Power Adapter
Router
WAN Port
LAN Port
Panel Explanation
Power
On: Power on
Off: Power off
Port
When one of the LED is on/flashing:
10G/5G
2.5G/1G/100M
On: Connecting to a device but no activity.
Flashing: Transmitting or receiving data.
Left LED (10G/5G):
Green: Running at 10 Gbps.
Amber: Running at 5 Gbps.
Right LED (2.5G/1G/100M):
Green: Running at 2.5 Gbps.
Amber: Running at 100/1000 Mbps.
DS105X
10G
Workstation
NAS/Server
Kensington Security Slot
Secure the lock (not provided) into
the security slot to prevent the
device from being stolen.
Ethernet Ports (1–5)
Gaming
8K Video
2.5G
Computer
Wi-Fi 6 AP
Advertisement
Related Manuals for TP-Link Omada DS105X
Summary of Contents for TP-Link Omada DS105X
- Page 1 Panel Explanation Power Kensington Security Slot On: Power on Secure the lock (not provided) into Off: Power off the security slot to prevent the device from being stolen. Installation Guide Port When one of the LED is on/flashing: 5-Port 10G Multi-Gigabit Desktop Switch 10G/5G 2.5G/1G/100M On: Connecting to a device but no activity.
- Page 2 Keep the device away from water, fire, humidity or hot environments. TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
