TP-Link Omada 28DS106P Installation Manual

TP-Link Omada 28DS106P Installation Manual

Unmanaged desktop poe+ switch

Advertisement

Quick Links

Installation Guide
Unmanaged Desktop PoE+ Switch
Switches Explanation
Note: The numbers in brackets indicate the ports where the feature takes effect. For example, when Extend(1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.
Extend
(For DS106P/DS111P)
Off: Ports run at 10/100 Mbps and support PoE power supply up to 100 m away.
On: Ports run at 10 Mbps and support PoE power supply up to 250 m away.
Priority
(For DS106P)
Off: All the ports transmit data with the same priority.
On: The specific ports transmit data with a higher priority than other ports. When congestion
occurs, packets which are transmitted by the ports with higher priority occupy the whole
bandwidth.

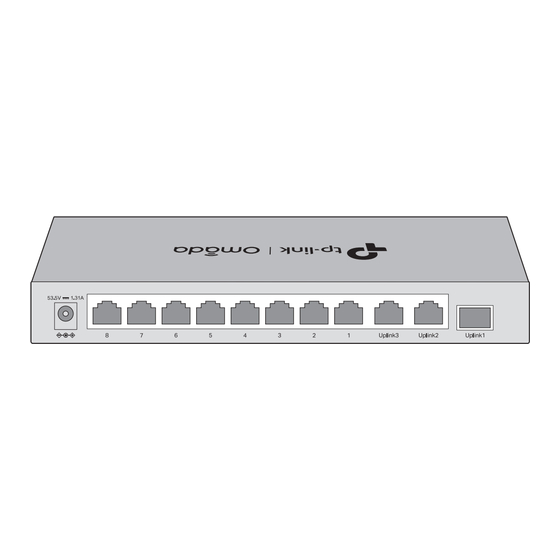

Note: Images may differ from your actual product. For simplicity, we will take DS111P for example throughout the Guide.
Connection
AC Power Cord
PoE Ports (1-8)
Powered Device (PD)
IP Camera
DC Power Adapter
PC
AP
IP Phone
LED Explanation
Power
On: Power on
Off: Power off
PoE Status
On: Providing PoE power
Flashing: Current-overload/ Short-circuit
Off: Not providing PoE power
Link/Act
On: Link present but no activity
Flashing: Transmitting/receiving data
Off: No link
Recovery
(For DS106P/DS111P)
Off: The PoE Auto Recovery function is disabled.
On: The switch will constantly detect the working status of a PoE powered device (PD). When
the switch finds that the PD works abnormally, the switch will reboot it.
Isolation
(For DS111P)
Off: Ports can transmit data with each other.
On: Specfic ports cannot transmit data with other downlink ports. They can transmit data
only with the uplink ports.
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. DS106P can supply up to 30 W for each PoE port and 67 W for all PoE ports.
3. DS111P can supply up to 30 W for each PoE port and 65 W for all PoE ports.
4. DS111P has three uplink ports, which typically connect to uplink devices like routers.
Uplink 1 is an SFP slot and works with a 1000 Mbps SFP module. Uplink 2 and uplink 3
are RJ45 ports.
PoE MAX
DS106P
Off: Total power supply < 60 W
On: 60 W ≤ Total power supply < 67 W
Flashing: Total power supply ≥ 67 W
DS111P
Off: Total power supply < 58 W
On: 58 W ≤ Total power supply < 65 W
Flashing: Total power supply ≥ 65 W
Router
WAN Port
LAN Port
Internet
