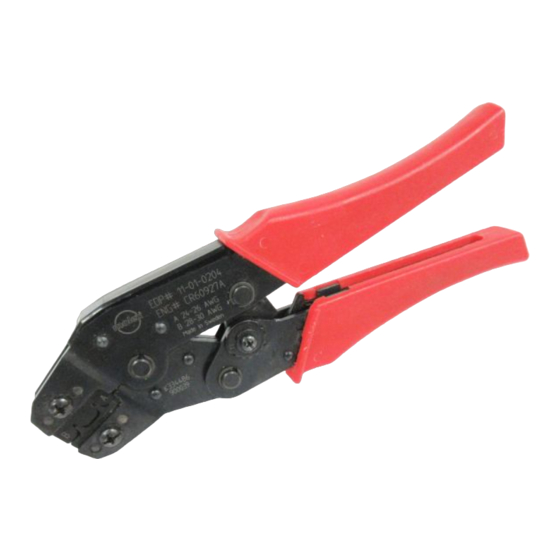

Hand Crimp Tool for Milli-Grid™ Crimp Terminal
FEATURES
Small handle spread which make this style tool ideally suited for end users
Ratchet with safety release that ensures consistent performance
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Products: Milli-Grid™ Crimp Terminal for 24-30 AWG.
Terminal
Series No.
Loose Piece
50394-8100 50394-8400 50394-8051 50394-8054
50394
50394-8200
DEFINITION OF TERMS
BRUSH
STRIP
LENGTH

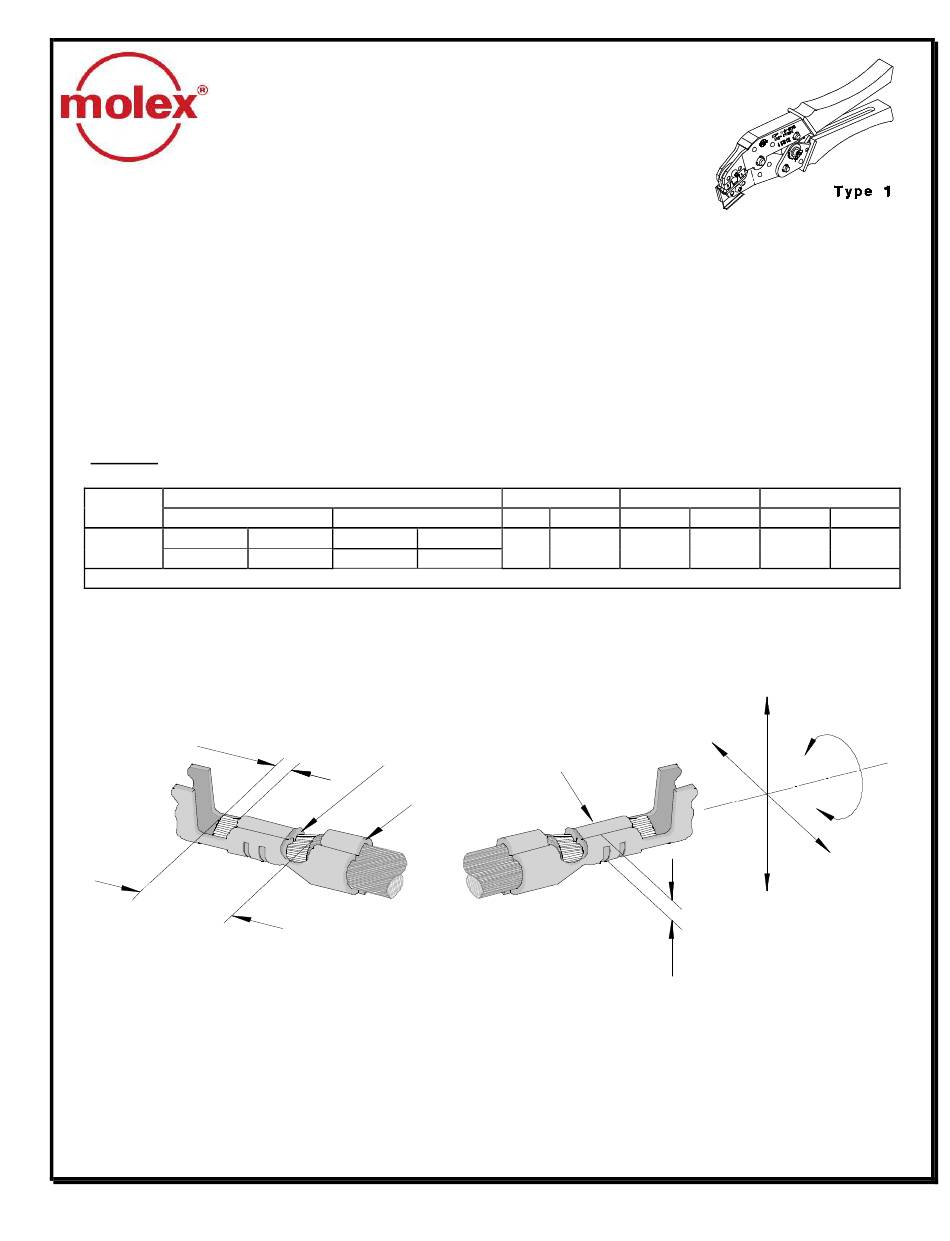

The above terminal drawing is a generic terminal representation. It is not an image of a terminal listed in the
scope.
Doc No: ATS-011010204
Revision: E
HAND CRIMP TOOL
SPECIFICATION SHEET
Order No. 11-01-0204
Engineering No. CR60927A
Terminal Order No.
Reel
50394-8052
Customer to cut off terminal from reel: 0.20mm (.008") maximum Cut-off Tab.
BELL MOUTH
INSULATION
CRIMP
Release Date: 03-02-93
Revision Date: 04-14-08
Wire Size
Insulation Diameter
AWG
mm²
mm
24-30 0.20-0.05 0.80-1.40 .031-.055 1.30-1.80 .051-.071
CONDUCTOR
CRIMP
CRIMP HEIGHT
UNCONTROLLED COPY
Strip Length
In.
mm
In.
BEND UP
ROLLING
TWISTING
BEND
DOWN
Page 1 of 5
