Stinger SR-RUN10H Manual

SR-RUN10H
Introduction and Features
The SR-RUN10H is a complete radio replacement kit for the installation of the Stinger HEIGH10
All modules, cables and adapters are included to retain important features of the factory system, including: steering wheel-mounted
radio controls, factory amplifier, factory reverse camera, factory USB port and AM/FM reception. Plug & Play wiring harnesses allow
for quick and easy installation without the need to cut or splice any wiring. The display mounting panel allows mounting the 10 inch
display without modifying/cutting any part of the vehicle's sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process prior to beginning the installation.
1. Adjustment of the vehicle settings through the original radio's vehicle settings menu will be disabled after installation of the new
radio. It is advised to make sure all settings are as you desire prior to removal of the original radio.
2. The RP4.2-TY11 does not retain Rear Seat Entertainment.
3. To retain SiriusXM Radio, a SXV300 Tuner is required and sold separately.
4. After installation, if you do not initially hear any audio, you may need to cycle the ignition again to initialize the factory amplifier.
5. Speaker fading on factory amplified systems is only supported with the "amplified output" connection of the RP4.2-TY11.
6. When using real time fade, if the fader setting is biased more to the front or rear, as the radio turns on the sound may begin at
the default setting and then quickly transition to your custom setting.
7. Radio features such as High Pass Filters (crossovers) will interfere with proper fader function. In order for the RP4.2-TY11's
fader function to work, the audio from the radio's output must match so it can compare the front and rear audio levels and
determine the proper fader setting for the factory amplifier.
8. If the truck is equipped with a factory 360° camera system, changing camera views using the touch screen will no longer be
available. Camera views can be changed using the steering wheel controls only.
Recommended Tools
10mm Socket
Ratchet

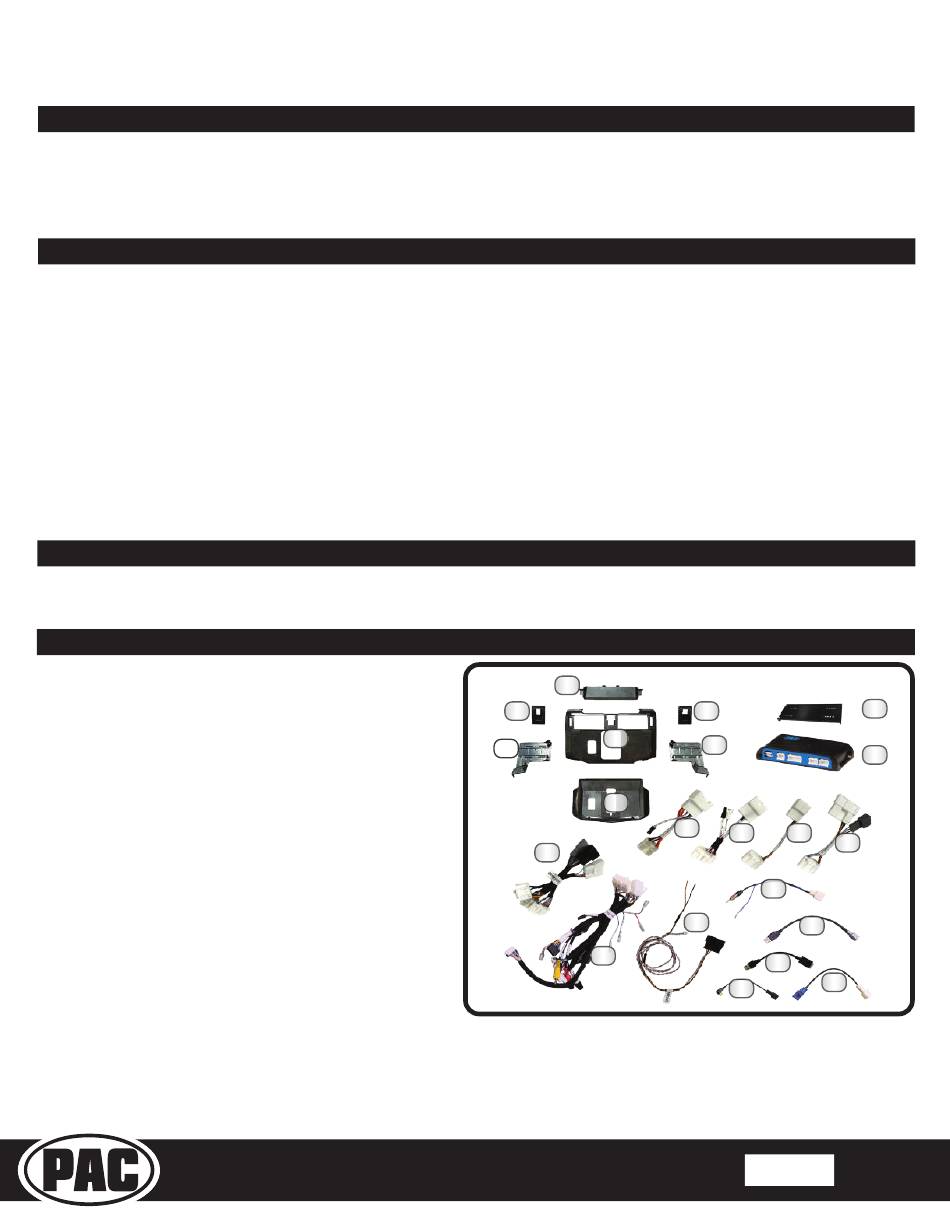

Included Components
1. Top Cover Panel (Installed on Main Frame)
2. Hazard Trim Panel 1
3. Hazard Trim Panel 2
4. Main Frame
5. LH Side Bracket (RUN10H_LH)
6. RH Side Bracket (RUN10H_RH)
7. HEIGH10 Display Bucket
8. Module Bracket
9. Radio Interface (RP4.2-TY11)
10. Main Harness (SR-RUN10H-ADAPT V1 (TY13)
11. Main Harness (SR-RUN10H-HAR)
12. Adapter Harness (SR-RUN10H-ADAPT V1 (JBL)
13. Adapter Harness (SR-RUN10H-ADAPT V1 (SWC)
14. Adapter Harness (SR-RUN10H-ADAPT V1 (CAM)
15. Adapter Harness (SR-RUN10H-ADAPT V1 (NAV)
16. OBD-2 V3
17. AM/FM Antenna Adapter (SR-BAA44)
18. USB Adapter (USB-TY1-HAR)
19. USB Adapter (USB-TY3-HAR)
20. Satellite Radio Antenna Adapter (SAT-01)
21. GPS Antenna Adapter (GPS-03)
®
© 2022 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global. PAC-audio.com
Pacific Accessory Corporation
Socket Extension
# 1/2 Phillips Screwdriver
Stinger HEIGH10 Radio Replacement Kit
Flush Cutters
Plastic Trim Tool
1
2
4
5
7
10
11
Included hardware: (Not shown in above image)
#10 x 3/8 Screw = 8
M3.5 x 10 Screw = 7
M4 x 12 Screw = 4
M5 x 10 Screw = 4
8 inch Zip Tie = 8 (Not shown in above image)
®
for 2010-2023 Toyota 4Runner
modular radio in Toyota 4RUNNER.
®
Small Flathead Screwdriver
Pick
3
6
12
13 14
15
17
16
18
19
21
20
Rev: V1
Date:080223
8
9
Page 1
