Stinger HEIGH10 SRK-JK11H Manual

SRK-JK11H
Introduction and Features
The SRK-JK11H is a complete radio installation kit for 2011-2018 Jeep Wrangler JK and the Stinger HEIGH10 Infotainment
system (sold separately). All modules and cables are included to retain important features of the factory system, including: steering
wheel-mounted radio controls, USB port, factory amplifier and AM/FM reception. Data integration with the vehicle and the Stinger
HEIGH10 adds advanced vehicle information, performance gauges, off-road enhancements, four programmable camera triggers,
and factory amplifier control. Plug & Play wiring harnesses, along with a "zero-modify" mounting system, allow for a quick and easy
installation without the need to cut or splice any factory wiring or modifying the vehicle trim panels or sub-dash.
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process prior to
beginning the installation. Although this kit does not require any modifications to the vehicle, it does
require following the steps as shown to ensure it is installed correctly with no damage to the vehicle.
1. Does not retain the following factory features:
● Uconnect
®
● SiriusXM Satellite Radio
®
2. To retain SiriusXM Satellite Radio would require purchasing a SXV300 SiriusXM tuner.
3. Directions for removing the HEIGH10 display panel are on page 17.
Recommended Tools
Plastic Panel Tool
7mm, 10mm Socket
Ratchet

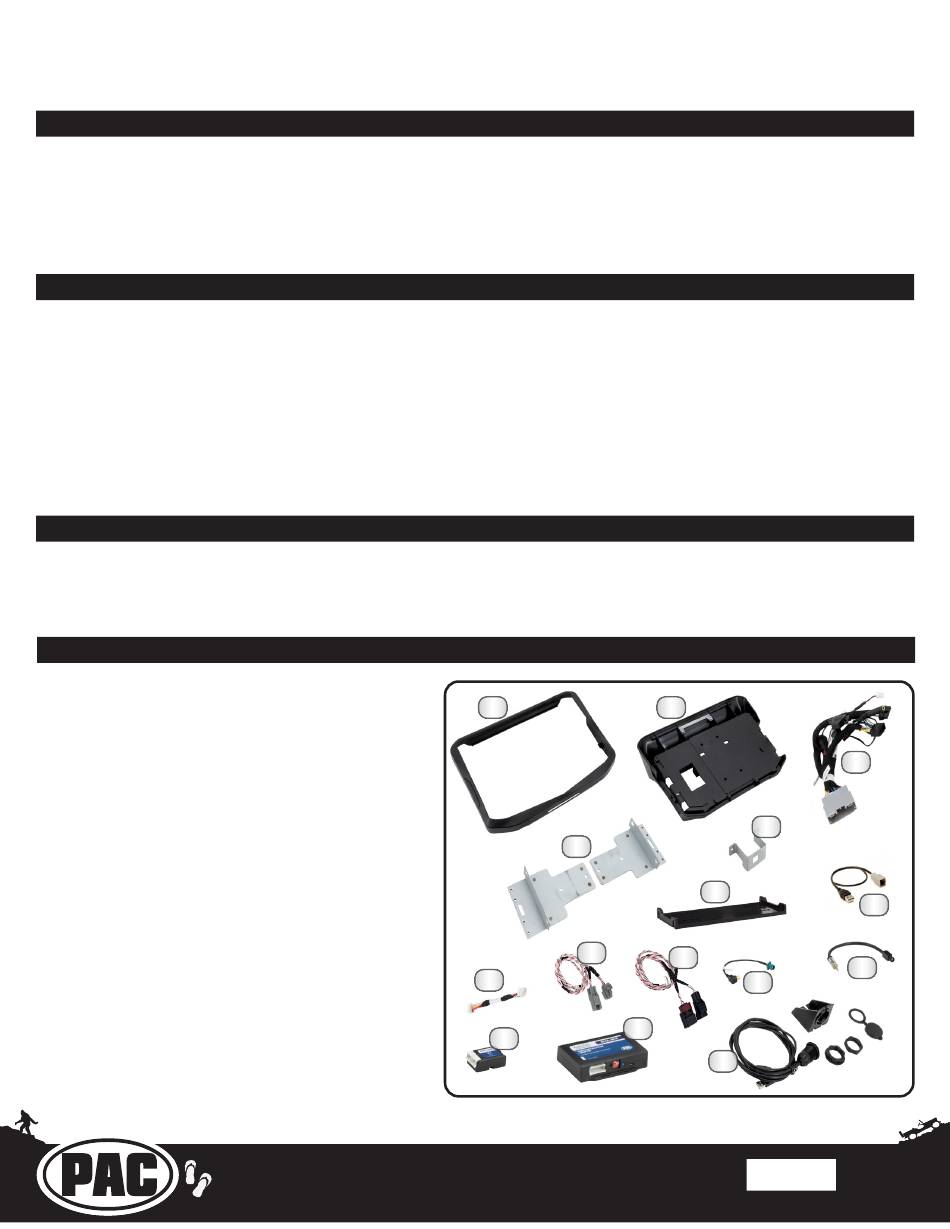

Included Components
1. Mounting Panel Front Frame
2. HEIGH10 Display Mounting Panel
3. Main Wiring Harness (SRK-CH1A-HAR)
4. Side Mounting Brackets (x2)
5. Module Bracket (H_MODULE_BRKT)
6. Top Support Bracket
7. 18" USB Adapter (USB-UN3)
8. PAC-LINK/Speed Sen Harness (10P-2-10P-6-HAR)
9. 2014-2018 CAN Harness (JK14-CAN-HAR)
10. 2011-2013 CAN Harness (JK07-CAN-HAR)
11. Satellite Antenna Adapter (SAT-01)
12. AM / FM Antenna Adapter (BAA22)
13. PAC-LINK Module (PL1)
14. Radio Replacement Interface Module (CH1A-SRK)
15. USB/HDMI Extension (HDMI-USB-CBL V2)
NOTE: Along with the SRK-JK11H components,
additional hardware and wire harnesses from the
HEIGH10 (UN1810) kit will also be used in the
installation. There is a component list, hardware
guide, wire harness descriptions and illustrations
in the UN1810 Installation Guide for reference.
®
Pacific Accessory Corporation
Phillips Screwdriver
Pick Tool
Flush Cutters
