TXFF15D10

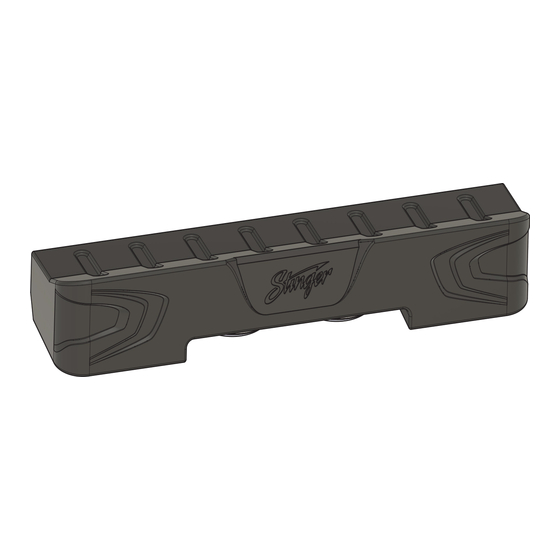

Dual 10" Under Seat Subwoofer Enclosure
FOR FORD Trucks
2015 + F150
2017 + F250 / F350 Super Duty
INSTALLATION GUIDE
NOTE! Read this installation guide thoroughly before disassembling or modifying the
vehicle. Installation of this product requires technical skill, experience and specialized
tools. If in doubt, it's recommended to have it professionally installed by an authorized
Stinger or AudioControl Dealer.
Installation Manual is available with the QR code below:
Advertisement
Related Manuals for Stinger AudioControl TXFF15D10
Summary of Contents for Stinger AudioControl TXFF15D10
- Page 1 NOTE! Read this installation guide thoroughly before disassembling or modifying the vehicle. Installation of this product requires technical skill, experience and specialized tools. If in doubt, it’s recommended to have it professionally installed by an authorized Stinger or AudioControl Dealer. Installation Manual is available with the QR code below:...
-
Page 2: Installation Notes
INSTALLATION NOTES The TXGM14D10 is designed to mount under the rear seat of GM Crew Cab Trucks. Some installation steps are more easily completed with a second person. Speaker wire is required. Final enclosure impedance: 2ohms. Recommended amplifier rating: 400-1,000 watts @ 2ohms. INCLUDED HARDWARE D = Driver P = Passenger... -
Page 3: Installation
INSTALLATION Step 1 Lift up the Rear seat to expose the 4 front seat mounting bolts. Use a 13mm socket to loosen the 4 hex bolts enough to allow the brackets to slide under the seat brackets. Seat Bolts Flathead Screwdriver Step 2 Use a large flathead screw driver and slide it under the seat frame. - Page 4 INSTALLATION Step 3 Place the speaker enclosure in the vehicle with the rear of the enclosure facing the back seat. Route speaker wire to the rear of the enclosure and connect using either the Push Terminals or the Quick-Plug connector. Red = Positive (+) Black = Negative (-) NOTE: Do not connect speaker...
-
Page 5: Specifications
Limited Warranty Stinger warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of pur- chase. This warranty is not transferable and applies only to the original purchaser from an authorized Stinger dealer in the United States of America only. - Page 6 Phone: 425-777-7723 Email: support@audiocontrolmobile.com As Technology advances, AudioControl reserves the right to continuously change our specifications. © 2024 Stinger. All rights reserved. AudioControl is a Stinger Technical Support Phone: 727-592-5991 Email: support@stingersolutions.com © 2024 AAMP Global. All rights reserved. | IG-TXFF15D10 REV 071224...
