Stinger SPXULED Quick Start Manual

UNIVERSAL LED UNDER-BODY/DOME
Before you start, review directions completely.
If your vehicle is not pre-wired for external lighting,
you may need the following:
Inline Fuse Holder (SPXATC16 or similiar)
3 Amp Fuse
Switch
Relay
2 Strand Primary Wire
Wire Connectors / Solder
Wire Cover
Zip-Ties
MOUNTING THE LED PODS
The rubber mounting pads allow the lights to
be mounted on a flat surface or a curved
surface like a roll bar or tubalar frame. The
lights can also be mounted flat, without the
rubber mounting pad.
Once you have choosen a mounting loca-
tion, decide how the cable will be routed. For
example, when mounting on a roll bar, is the
cable going to be routed inside the tube or
on the outside. The rubber mounting pads
allow you to route the cable outside, without
drilling a hole for the cable (FIG B).
Using the template below, mark and drill the
mounting holes. If you are running the cable
through the mounting surface (FIG A & D),
you will also need to drill a 1/4" hole for the
cable. Use the center hole when mounting
with the rubber mounting pads. Use the offset
hole if mounting the light only, no mounting
pad.
Offset Cable Hole
Mounting Hole
Center Cable Hole
Mounting Hole
WHAT'S INCLUDED
2 x CREE LED Pods
2 x Rubber Mounting Pads
4 x Mounting Hardware

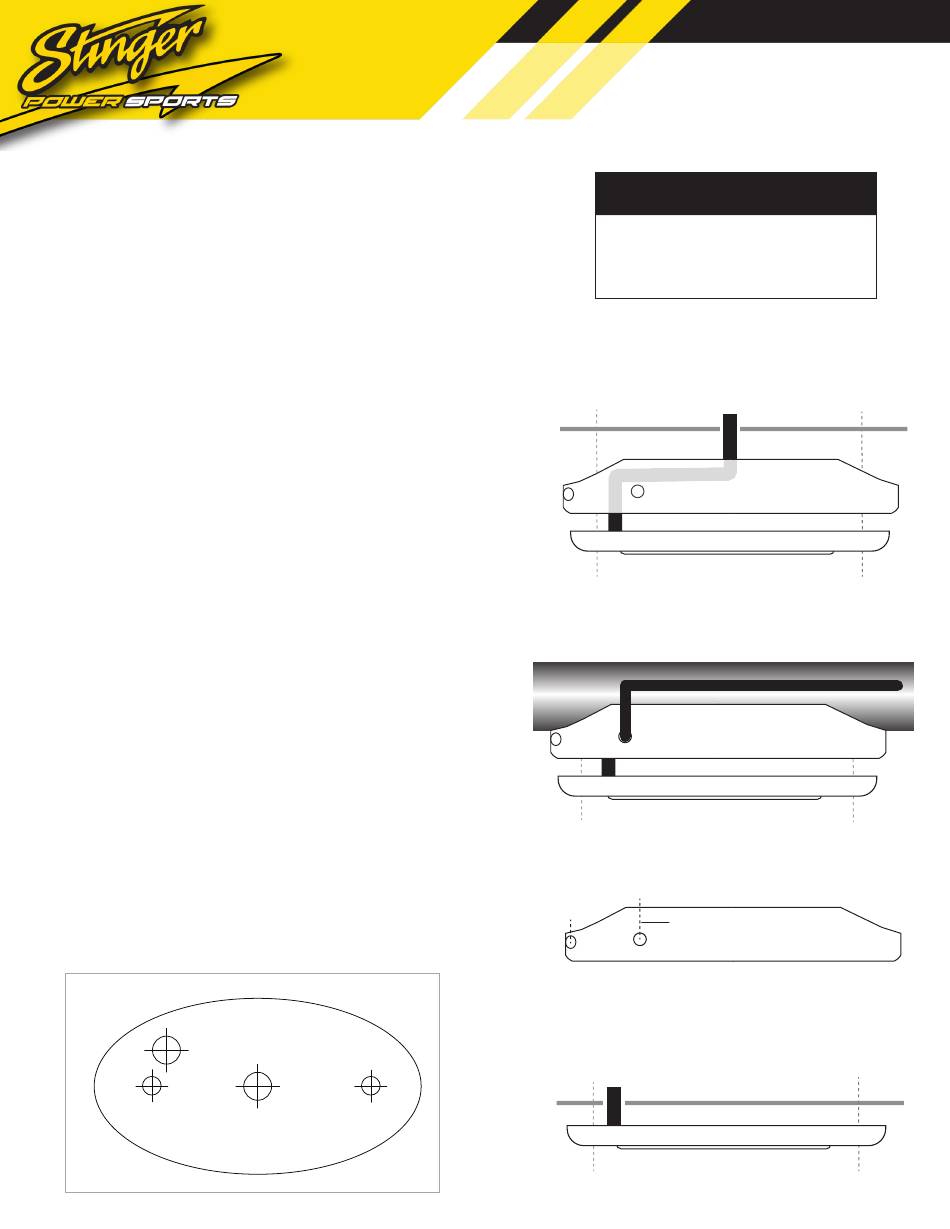

FIG A
Flat surface with mounting pad and cable going
through mounting surface
FIG B
Curved surface with mounting pad and cable routed
out the mounting pad.
FIG C
When running the cable through the mounting pad holes,
you will need to cut a slit in the rubber
Cut Line
FIG D
Flat surface without using the mounting pad. Cable will need to go
through the mounting surface.
SPXULED
