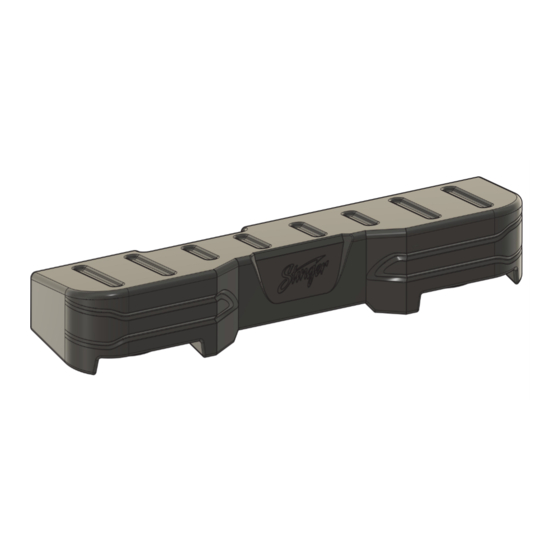

TXGM14D10
Dual 10" Under Seat Subwoofer Enclosure
For GM Chevrolet Crew Cab Trucks
2014-2018 Sierra / Silverado 1500
2014-2019 Sierra / Silverado 2500 / 3500
INSTALLATION GUIDE
NOTE! Read this installation guide thoroughly before disassembling or modifying the
vehicle. Installation of this product requires technical skill, experience and specialized
tools. If in doubt, it's recommended to have it professionally installed by an authorized
Stinger or AudioControl Dealer.
A video installation guide is available at:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Stinger TXGM14D10
Summary of Contents for Stinger TXGM14D10
- Page 1 NOTE! Read this installation guide thoroughly before disassembling or modifying the vehicle. Installation of this product requires technical skill, experience and specialized tools. If in doubt, it’s recommended to have it professionally installed by an authorized Stinger or AudioControl Dealer. A video installation guide is available at:...
-
Page 2: Installation Notes
INSTALLATION NOTES The TXGM14D10 is designed to mount under the rear seat of GM Crew Cab Trucks. Some installation steps are more easily completed with a second person. Speaker wire is required. Final enclosure impedance: 2ohms. Recommended amplifier rating: 400-1,200 watts @ 2ohms. -
Page 3: Installation
INSTALLATION Step 1 Lift up the Rear seat to expose the left and right seat mounting bolts. Use a 18mm socket to loosen the hex bolts enough to allow the brackets to slide under the seat brackets. Seat Bolts Seat Bolts Step 2 Attach the Driver and Passenger Enclosure... - Page 4 INSTALLATION Step 3 Place the speaker enclosure in the vehicle with the rear of the enclosure facing the back seat. Route speaker wire to the rear of the enclosure and connect using either the Push Terminals or the Quick-Plug connector. Red = Positive (+) Black = Negative (-) NOTE: Do not connect speaker...
-
Page 5: Specifications
Limited Warranty Stinger warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of pur- chase. This warranty is not transferable and applies only to the original purchaser from an authorized Stinger dealer in the United States of America only. - Page 6 Complimentary Layout Page (tape measure and calculator not included)
- Page 7 Complimentary Layout Page (tape measure and calculator not included)
- Page 8 Mobile audio support: Phone: 425-777-7723 Email: support@audiocontrolmobile.com As Technology advances, AudioControl reserves the right to © 2024 Stinger. All rights reserved. AudioControl is a Stinger Technical Support Phone: 727-592-5991 Email: support@stingersolutions.com © 2024 AAMP Global. All rights reserved. | IG-TXGM14D10 REV 091024...
