Stinger DSI Installation Manual

For optimal performance of the Stinger DSI it is
important to carefully follow the directions provided
in this installation manual. For questions please call Stinger
technical support at +31 252 41 49 50. For more information,
www.stinger.com
check
Please first confer with the customer to determine the desired
position for the Memory Display in the car. We advise to place
the DSI Display Holder so that the display will be easily visible
for - and within comfortable reach of - the driver.

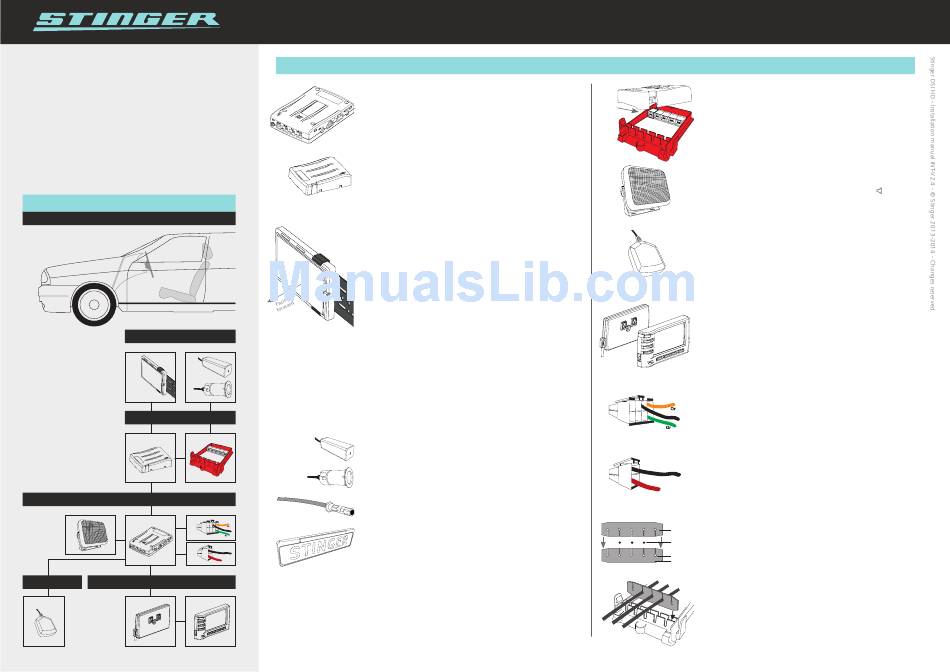

Schematic view
Module locations
K L
J
C
D
F
G H
B
E
A
In or behind the bumper/grill
A HD Antenna
B Laser square/round
A B
C Extention Box
D Laser Analyzer Box
E Speaker
F Computer Center
G I/O Plug
H Power Plug
Under the bonnet
J GPS Antenna
K Display Holder
C D
L Memory Display
Under the dashboard
E F G
H
Car specific In the cockpit
K
J L
1. Computer Center
The Computer Center must be placed in a humidity-free location
such as in or under the dashboard.
• Mount the CC with tie-wraps or screws.
2. Extension Box
Place the Extension Box horizontally (as depicted) under the
bonnet, in a reasonably humidity-free location.
• Connect the module to the FRONT port of the CC. Do not yet
close the lid of the Extension Box.
3. HD Antenna
Place the HD Antenna at the front of the car behind the bumber
or spoiler. Preferably behind flat and smooth plastic, and
certainly not behind metal.
• The large, smooth side that has no imprints, must face straight
forward in the driving direction, with the cable coming out on
the left or right side, as depicted.
• Connect it to any port of the Extension Box. The Antenna
must never be connected to the Laser Analyzer Box: this can
cause a short-circuit.
• For maximum performance, please make sure the antenna
receives sufficient airflow for cooling.
• Please see reverse side of this sheet for MultaRadar CD
optimized installation.
4. Lasers
Connect the Lasers to the Laser Analyzer Box port 1, 2, 3 or 4
(see Laser Analyzer Box). The Lasers need an unobstructed
'view' outwards.
Front Laser Square
Front Laser Round
Side Laser Fiber
Bl
Side Laser Plate
Bl
To ensure optimal laser functionality, please refer to the exact
Red
laser installation instructions in the provided Stinger Laser
Analyzer Installation Manual.
Download available at:
Step by Step inStructionS
Port to the
Extension Box
www.stinger.com/manuals
DSI with HD Antenna
Installation manual
5. Laser Analyzer Box
Place the Laser Analyzer Box horizontally (as depicted) under the
bonnet, in a reasonably humidity-free location.
• Connect the Laser Analyzer Box to the Extension Box with the
plug in the left "CC port" and connect the other end to any of
the ports on the Extension Box. Do not yet close the lid.
6. Speaker
Place the speaker under the dashboard.
• Connect the module to the Speaker port ( ) of the
Computer Center.
7. GPS Antenna
Place the antenna on the dashboard. If the car has a heat-
repelling windshield, it is better to place the antenna outside
the cabin of the car, for instance in a space at the top end of
the bonnet.
• Connect the cable of the antenna to the GPS port of the
Computer Center.

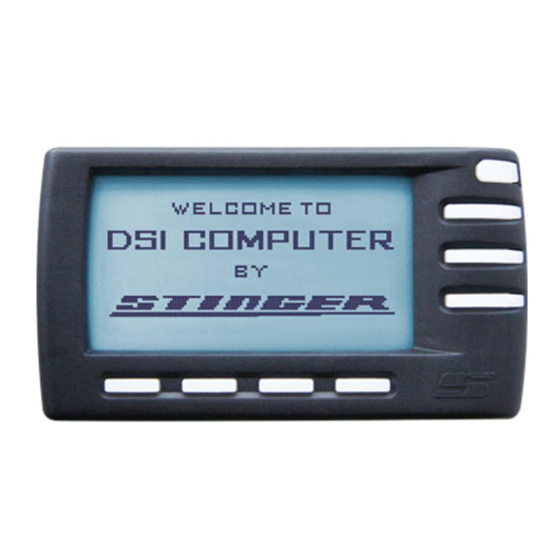

8. Memory Display & Display Holder
Place the Display Holder at a convenient location for the driver.
• Connect the module to the DISPLAY port of the
Computer Center.
• Place the Memory Display on the Display Holder.
9. 8-pole I/O plug
• Connect the orange wire to the ignition-actuated 13.8V
Bl
battery power (+15).
• If so desired, attach the green Mute-cable to the Mute-wire
of the radio.
• The black wire is for future use.
10. 2-pole power plug
Bl
• Connect the red wire to the 13.8V battery power (+30).
Red
• Connect the black wire to a 'clean' metal ground-point of
the car chassis.
Rubber
seal
11. Closing the Extension Box and Laser Analyzer Box
Cable
After all the cables have been connected, it is important to close
Cut outs
the boxes (see steps 2 and 5) in a water resistant manner. Place
Rubber
seal
the cables in the holes of the opposite facing 'rubber seals' (see
example). This prevents moisture from getting into the box.
Next, place the rubber seals with the now inserted cables into
the slot, as depicted in the example on the left. Make sure the
rubbers are pushed down all the way using silicone spray to
facilitate this. Put the lid back on so that it is tight and secure.
