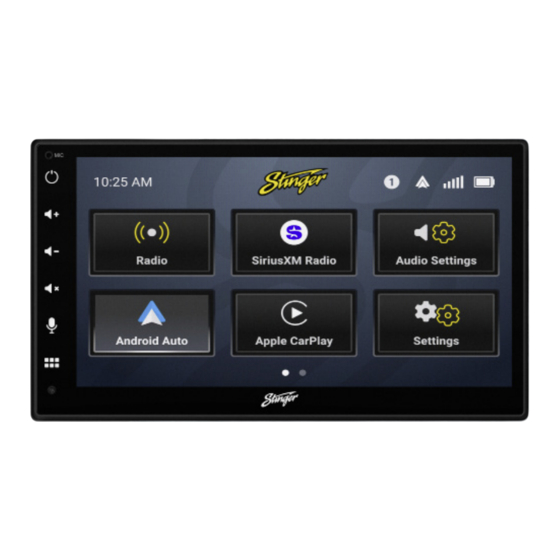

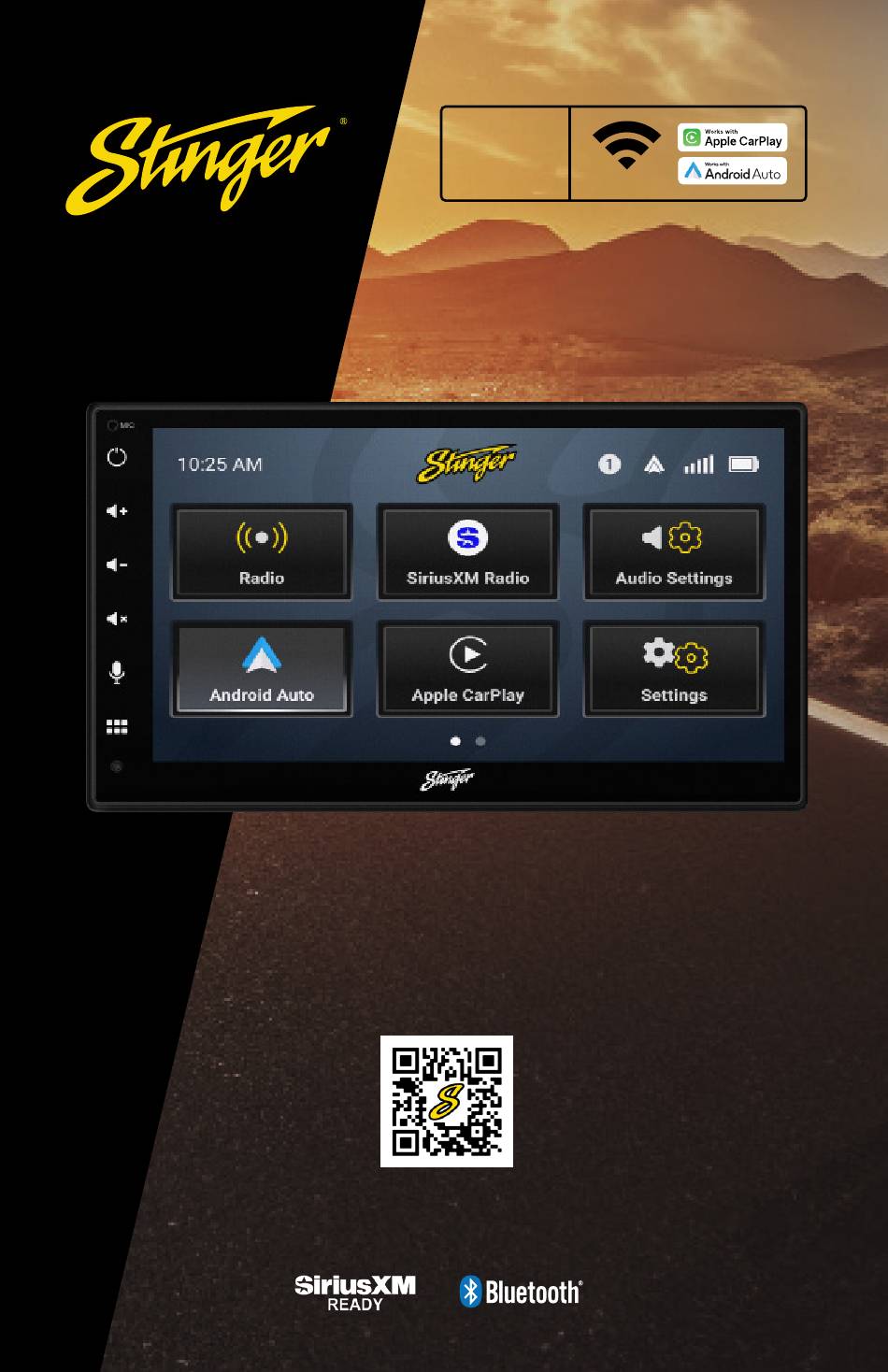

- Page 1 ” Infotainmen t Wireless System PN: IE268 IE268 Install / Quick Setup GUIDE Scan For Detailed User Guide Scan For Detailed User Guide https://stingersolutions.com/pages/welcome-ie268 https://stingersolutions.com/pages/welcome-ie268 stingersolutions.com...
-
Page 2: Included Parts
® Included Parts Description Part NO Radio Module IE268 Radio Harness GPS Antenna PSEH-1109 External Microphone PSEH-1108 Radio Trim Radio Cage Mounting Screws Radio Wiring Color Polarity Function Yellow Constant 12 volt power source regardless of key position. Accessory 12 volt power source requires turning of the key position. - Page 3 Radio Wiring Cont Color Polarity Function Blue/ Amplifier turn on, provides 12 volts from the White receiver when receiver is turned on. Pink V.S.S. – Vehicle speed sense (Recomended) White/ Camera 2 Trigger (Optional) Grey White/ Cammera 3 Trigger (Optional) Green White/ Cammera 4 Trigger (Optional)
-
Page 4: Installation Notes
When connecting optional steering wheel controls, please refer to SWC manufactures wiring instructions to connect. • • The IE268 Power harness should color match wire colors of vehicle specific harness being used to connect to vehicle. This harness is sold separately. • •... -
Page 5: Wire Diagram
Installation Notes Cont • If wires are unused, tape and secure wire ends for safety and to avoid unwanted failures. • • If Radio does not power on when vehicle is started, after installation is complete. Verify all wiring connections are correct and secure. Also, verify there are no blown fuses in vehicles fuse panels. -
Page 6: Radio Connections
® Radio Connections 1. Power Connection 6. USB-C Connection Main radio harness connection for Used for wired Car Play/Android power and factory wired speakers. Auto and phone charging. Additional Cable Required 2 . E x ternal M ic Connection 7. USB-A (optional) 3.5mm connection for External Used for Firmware updates, USB... - Page 7 THE BASICS 1. Reset Button 6. Power Button To Factory Reset Radio Long press to power unit off / on 2. Home Menu Button 7. Clock Tap: Access the Home Menu . Tap: Adjust Clock Settings Dimmed menu items are not 8.
-
Page 8: Getting Started
Press Home Button > Swipe left > powering down your IE268. Display Off to turn off your iE268. You can adjust the audio volume at start-up in Audio Settings on page 43. This is useful at night to prevent... -
Page 9: Get Connected
GET CONNECTED If your device does not appear in the device list, confirm it is discoverable Swipe left on the homescreen and tap Available Devices to rescan. and tap Device List. 4. Confirm PIN Code on the head unit screen and the device. 2. - Page 10 Stinger and the Stinger logo are Inc. Use of the Apple CarPlay logo means trademarks or registered trademarks that a vehicle user interface meets of Stinger in the United States and other Apple performance standards. Apple countries. is not responsible for the operation...
- Page 11 Make sure a thumb drive con- taining your firmware update is inserted into an available USB port and tap System Firmware Update. You can find firmware updates on the IE268 Product Page stingersolutions.com...
- Page 12 ® stingersolutions.com...
Need help?
Do you have a question about the IE268 and is the answer not in the manual?
Questions and answers
How to set T Stinger audio to default to Apple Car Play & forget Android
To set the Stinger IE268 to default to Apple CarPlay and forget Android:
1. Connect your iPhone to the head unit’s USB-C port or connect wirelessly.
2. Apple CarPlay will launch automatically if connected.
3. To prevent Android Auto from launching, do not connect an Android device.
4. To remove Android devices:
- Go to Device Settings > Device List.
- Find and delete any saved Android devices under Known Devices.
This will stop Android Auto from launching and prioritize Apple CarPlay when an iPhone is connected.
