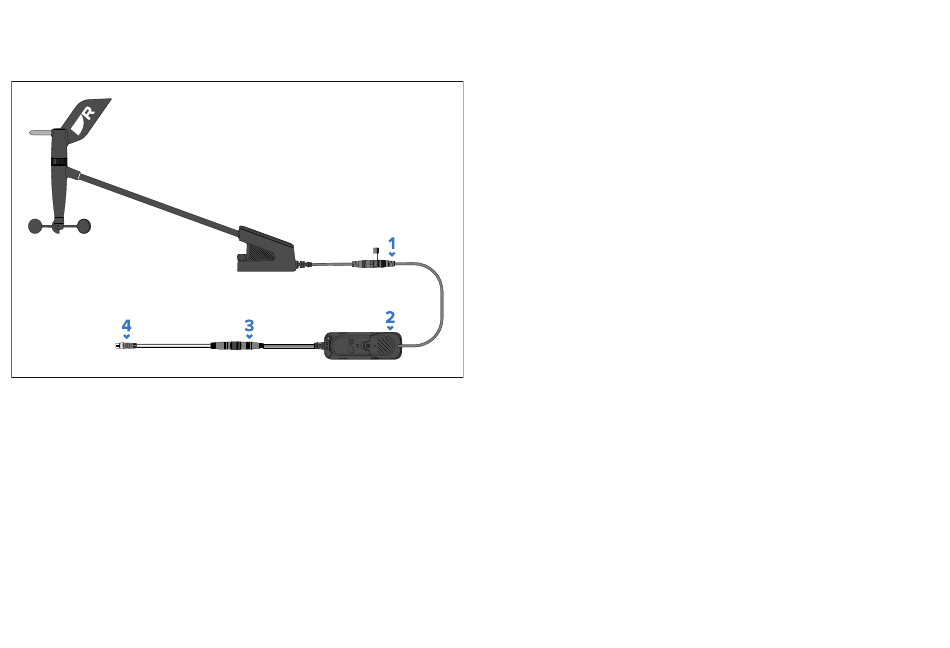

8.2 Connections overview

The wind transducer connects to the SeaTalkng ® / NMEA 2000 network

using the supplied adaptor cable and gateway.

Wind transducer connection — The wind transducer connects to the

supplied mast cable.

2. Gateway connection — The wires on the end of the mast cable connect

to the matching colored terminals on the gateway.

3. Gateway DeviceNet connection — The DeviceNet connector can

connect to the supplied SeaTalkng ® to DeviceNet adaptor cable, or

directly to a DeviceNet spur connection.

4. SeaTalkng ® connection — The supplied SeaTalkng ® to DeviceNet

adaptor cable is used to connect the wind transducer system to the

SeaTalkng ® network.

Cables and connections — General information

Follow the steps below to connect the cable(s) to your product.

1. Ensure that the vessel's power supply is switched off.

2. Ensure that the device being connected has been installed in accordance

with the installation instructions supplied with that device.

3. Ensuring correct orientation, push cable connectors fully onto the

corresponding connectors.

4. Engage any locking mechanism to ensure a secure connection (e.g.: turn

locking collars clockwise until tight, or in the locked position).

5. Ensure any bare ended wire connections are suitably insulated to prevent

shorting and corrosion due to water ingress.
