REALVISION

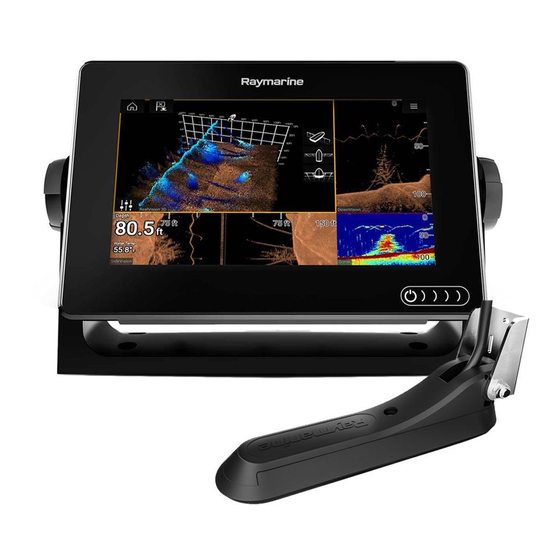

RV-100 3D Transom Transducer
Installation instructions
English (en-US)
Date: 04-2017
Document number: 88067-1
© 2017 Raymarine UK Limited

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RV-100 RealVision 3D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Raymarine RV-100 RealVision 3D

  • Page 1 REALVISION ™ RV-100 3D Transom Transducer Installation instructions English (en-US) Date: 04-2017 Document number: 88067-1 © 2017 Raymarine UK Limited...
  • Page 3: Obtain The Complete Documentation For Your Product

    Raymarine will not warrant products subjected to high-pressure washing. Disclaimer Raymarine does not warrant that this product is error-free or that it is compatible with products manufactured by any person or entity other than Raymarine.
  • Page 4: Declaration Of Conformity

    Raymarine is not responsible for damages or injuries caused by your use or inability to use the product, by the interaction of the product with products manufactured by others, or by errors in information utilized by the product supplied by third parties.
  • Page 5: Applicable Products

    Applicable products This document is applicable to the following products: RV–100 RealVision™ 3D Transom Mount Transducer Part number Description Construction Plastic A80464 RV-100 RealVision™ 3D Transom Mount Transducer • The RV-100 is a RealVision™ 3D transducer, capable of producing 3D sonar images. •...
  • Page 6 Power drill 2. Pozidrive screwdriver 3. Pair of 14 mm wrenches 4. Marine-grade neutral cure polyurethane sealant (non-acetate and non-silicone based) 5. 3.5 mm drill bit * 6. Adhesive tape 25 mm (1 inch) Hole saw (only required if you are routing the cable through a bulkhead.) Note: * Depending on the thickness and material of the mounting surface, you may require a different diameter drill bit.
  • Page 7: Testing The Transducer

    Channel). 6. Check that accurate depth and temperature readings are displayed. 7. If you experience difficulties obtaining readings then contact Raymarine Technical Support. Warning: Transducer operation Only test and operate the transducer in the water. Do NOT operate out of water as overheating may occur.
  • Page 8: Transducer Dimensions - Rv-100

    • Air trapped under the front of the vessel can travel under the hull and appear as aeration aft. Note: Optimum transducer location will vary depending on vessel type. Optimum transducer height and angle should be obtained by testing the transducer with the vessel in the water. Transducer dimensions —...
  • Page 9: Mounting The Transom Mount Bracket

    Mounting the transom mount bracket The transducer must be mounted on the transom using the mounting bracket provided. The steps below describe the initial mounting steps required in order to test your transducers performance. Finishing After testing the transducer you must finish the mounting following the instructions in the the transducer mounting section.
  • Page 10: Mounting The Transducer

    Mounting the transducer The transducer must be mounted on the transom using the mounting bracket provided. The steps below describe the initial mounting steps required in order to test your transducer’s performance. Finishing After testing the transducer you must finish the mounting following the instructions in the the transducer mounting section.
  • Page 11 5. Position the transducer hanger so that the bottom face of the transducer will be parallel with the waterline and tighten the mounting bolt until the hanger is held firmly in place. The transducer position will be adjusted further during testing. Note: Do not adjust the M5 screw located on top of the transducer hanger.
  • Page 12: Cable Routing

    Cable routing Cable routing requirements for the transducer cable. Important: To avoid interference, the cable must be routed as far away from VHF radio antenna cables as possible. Important: The transducer cable’s connector is supplied with a separate locking collar assembly, used to secure the cable firmly to your multifunction display.
  • Page 13: Mounting The Escutcheon Plate

    Mounting the escutcheon plate Your RV-100 transducer is supplied with an escutcheon plate. If you have chosen to route the transducer cable through the transom or through a bulkhead, you can use the escutcheon plate to cover the hole required to accommodate the cable. The plate is designed to fit over a 25 mm (1 inch) diameter hole.
  • Page 14: Attaching The Connector Locking Collar

    Attaching the connector locking collar The transducer cable’s connector is supplied with a separate locking collar assembly, used to secure the cable firmly to your multifunction display. This procedure describes how to attach the locking collar to the connector. The locking collar parts are supplied in a separate bag, in the box with your transducer.
  • Page 15 The split-ring slides easily for approximately 1 cm onto the connector, before butting up against the connector moulding. 3. Carefully insert the pointed end of the supplied tool into the split-ring’s gap (labelled ‘C’ in the illustration).
  • Page 16 The tool widens the gap in the split ring, enabling the split ring to be pushed further back onto the connector in the following step. Important: Always use the supplied tool when attaching the split ring. The split ring may become overstretched and break if you try to attach it without using the tool.
  • Page 17 6. Slide the locking collar towards the plug-end of the connector, rotating the collar as necessary to ensure that the lugs on the locking collar (labelled ‘D’ in the illustration) pass through the channels (labelled ‘E’) in the split-ring.
  • Page 18 The locking collar slides easily towards the plug-end of the connector, before butting up against the split-ring moulding. 7. Grasp the body of the connector with one hand, then with the other hand, pull the locking collar firmly towards the plug-end of the connector.
  • Page 19: Making Connections

    As you pull the locking collar, it clicks into place over the split-ring. The locking collar stays in position on the connector, but rotates freely. Making connections Follow the steps below to connect the cable(s) to your product. 1. Ensure that the vessel's power supply is switched off. 2.
  • Page 20 4. Angle and height adjustments should be made in small increments and re-tested each time until you obtain optimum performance. For best performance, you should ensure that the bottom half of the transducer assembly is positioned so that it is lower than the lowest point of the hull in the vicinity of the transducer. In the following illustrations, the dashed line indicates the lowest point of the hull in the vicinity of the transducer.
  • Page 21: Finalizing The Transducer Mounting

    Finalizing the transducer mounting Once you have achieved optimum performance at the desired vessel speeds the transducer must be locked into position to complete the installation. 1. Drill the locking hole location taking care not to damage the mounting bracket. 2.
