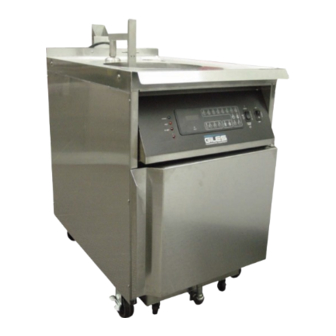

GILES GGF Series Operation & Service Manual

Hide thumbs Also See for GGF Series:
Table of Contents

Advertisement

Quick Links

Download this manual

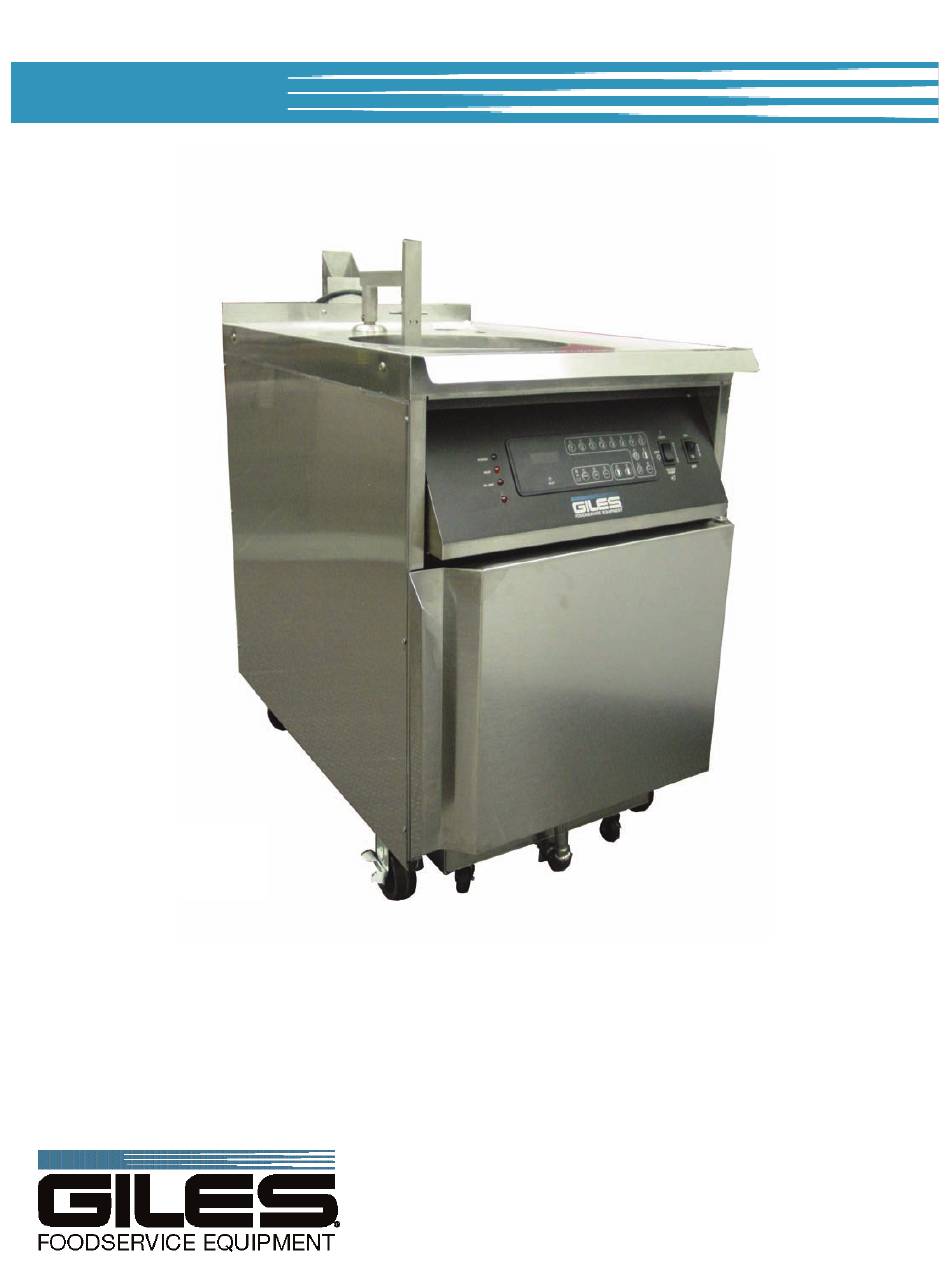

Operations & Service Manual
Models: GGF-400
GGF-720
Giles Enterprises, Inc.
An ISO9001 Registered Company • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Fax: 334.239.4117 • Website: www.gfsequipment.com
Service Hotline (Toll Free): 800.554.4537 (USA & Canada Only)
Form No. 65474 (Rev date: 10/12/10)
GGF SERIES
GGF-400, GGF-720

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GGF Series and is the answer not in the manual?

Questions and answers

Related Manuals for GILES GGF Series

Summary of Contents for GILES GGF Series

  • Page 1 GGF SERIES Operations & Service Manual GGF-400, GGF-720 Models: GGF-400 GGF-720 Giles Enterprises, Inc. An ISO9001 Registered Company • Committed to Quality 2750 Gunter Park Drive West • Montgomery, AL 36109 USA Fax: 334.239.4117 • Website: www.gfsequipment.com Service Hotline (Toll Free): 800.554.4537 (USA & Canada Only)
  • Page 2 IN A PROMINENT LOCATION, post instructions to be followed in the event the user smells gas. Such information can be obtained by consulting the local gas supplier. FOR YOUR SAFETY Do not store or use gasoline, other flammable liquids, or materials that can generate flammable vapors in the vicinity of this or any other appliance.
  • Page 3 Giles Enterprises, Inc., representative. • Giles Enterprises, Inc. reserves the right to change or improve its equipment and parts in any way without obligation to alter such equipment or parts previously manufactured.

  • Page 5: Table Of Contents

    Table Of Contents Model: GGF-400, GGF-720 Safety ............vii Safety Overview .
  • Page 6 Table Of Contents Model: GGF-400, GGF-720 4-5. Perform Boil Out Procedure ..........33 4-6.
  • Page 7 Table Of Contents Model: GGF-400, GGF-720...
  • Page 8 Table Of Contents Model: GGF-400, GGF-720 Notes:...

  • Page 9: Safety

    Safety Model: GGF-400, GGF-720 Safety Safety Overview The instructions contained in this manual have been prepared to aid you in learning the proper procedures for installing and servicing your new unit. Throughout this manual, safety precautions are identified through the use of the safety alert symbol and three signal words: DANGER, WARNING and CAUTION.

  • Page 10: Specific Safety Precautions

    Safety Model: GGF-400, GGF-720 Specific Safety Precautions For your safety, please observe the following precautions when operating or servicing your Giles, Model GGF Gas Fryer. Read the following important safety information to avoid personal injury and/or damage to the equipment.
  • Page 11 • Giles Fryers are available from the factory wired for various voltages, phase and Hz. Check the rating plate inside the front door of the fryer to determine correct supply power required.
  • Page 12 Safety Model: GGF-400, GGF-720 NOTE: GGF Fryer • If upon receipt, palletized unit shows any signs of damage, immediately inspect the and its associat- ed components, and notify the freight carrier of any and all damages. • To aid the electrician, an electrical wiring diagram is contained in this manual. Refer to the wiring diagram during installation or servicing.

  • Page 13: Introduction

    Model: GGF-400, GGF-720 1. Introduction Congratulations on the purchase of your new Giles equipment, Model GGF-400 or GGF-720 Gas Fryer, manufactured by Giles Enterprises, Inc., Montgomery, Alabama (USA), hereafter referred to as "Giles". Every unit is thoroughly inspected and tested prior to shipment. Proper care and maintenance will ensure years of trouble-free service.

  • Page 14: Specifications

    Introduction Model: GGF-400, GGF-720 1-4. Specifications 1-4.1. Overall Cabinet Dimensions for GGF-400, GGF-560, GGF-720 24 3/8 619mm...

  • Page 15: 1-4.2. Regulatory Listings

    Introduction Model: GGF-400, GGF-720 1-4.2. Regulatory Listings 1-4.3. Basket Sizes Model Basket Size (useable inside dim.) Volume Diameter Height cu. inch cu. meter GGF-400 12.37 314.19 10.25 260.35 1231.83 0.0201 GGF-720 14.50 368.30 13.03 331.35 2151.65 0.0353 1-4.4. Cooking Capacity Chicken Capacity Model Liquid Shortening Capacity **...
  • Page 16 Introduction Model: GGF-400, GGF-720...

  • Page 17: Installation

    Model: GGF-400, GGF-720 2. Installation This section provides a summary of the procedures necessary for proper installation of your new Giles equipment, Model GGF Gas Fryer. To prevent personal injury or equipment damage, please ensure the following steps are taken and the following check sheet is initialed and dated.

  • Page 18: Unpacking

    Installation Model: GGF-400, GGF-720 2-01. Unpacking The Fryer should arrive palletized on a wooden skid, secured with high-tensile plastic strapping and wrapped by machine applied stretch wrap. CAUTION • The Fryer must remain in the upright (vertical) position. • Exercise care when lifting or moving the unit. •...

  • Page 19: Clearances, Gas Supply And Electrical Locations

    Installation Model: GGF-400, GGF-720 2-02. Clearances, Gas Supply and Electrical Locations COMBUSTIBLES 18”[457 .2] NON-COMBUSTIBLES 4”[101.6] 4”[101.6] NON-COMBUSTIBLES 18”[457 .2] COMBUSTIBLES 24 3/8 619mm 120V ONLY SUPPLIED WITH 72” [1829] CORD 1/2” NPT GAS LINE CONNECTION INCHES [mm]...

  • Page 20: Location

    • Giles Gas Fryers are available from the factory in the voltage and phase listed below. Check the rating plate on the inside of the fryer’s front door to determine the correct power supply.

  • Page 21: Electrical Connections

    Installation Model: GGF-400, GGF-720 2-06. Electrical Connections All Fryers 1. Connect Fryer power plug to an appropriate receptacle which is protected by a properly sized circuit breaker, See Table 2-05.01. NOTE: • When installed, appliance must be electrically grounded in accordance with the local code, or in the absence of local code, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.2, as applicable.

  • Page 22: Power Test

    Installation Model: GGF-400, GGF-720 2-07. Power test The following test will ensure the unit has power. 1. Verify that the main circuit breaker supplying power to the unit is ON. 2. Ensure the Selector Switch is in the center position. 3.

  • Page 23: 2-08.01 Typical Gas Line Configuration

    Installation Model: GGF-400, GGF-720 2-08.01 Typical Gas Line Configuration NOTE: • Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1, as applicable, including: 1 The appliance must be disconnected from the incoming gas supply line, at the shut-off valve, during any testing of the piping at test pressures in excess of 1/2 psi (3.5kPa)

  • Page 24: Gas Orifice Configuration And Replacement

    Installation Model: GGF-400, GGF-720 2-09. Gas Orifice Configuration and Replacement NOTE: • This unit is shipped with factory installed gas Orifice(s) suited for 0 to 3,000 feet above sea level - Natural Gas or 0 to 4,000 feet above sea level - LP Gas. Gas flow varies at different elevations.

  • Page 25: Gas Pressure Setting And Adjustment

    Installation Model: GGF-400, GGF-720 2-10. Gas Pressure Setting and Adjustment Use the following procedure to set the Fryer manifold pressure to correct setting. This ensures that the BTU input of burner(s) is at the proper level. 1. Fill the Fry Pot with water to the FULL line. CAUTION •...

  • Page 26: Blower Vacuum Switch Setting And Adjustment

    Installation Model: GGF-400, GGF-720 2-11. Blower Vacuum Switch Setting and Adjustment The Blower Vacuum Switch ensures that the unit has the proper draft air-flow before allowing the gas valve to open for ignition. Ensure the Blower Vacuum Switch is set to the proper setting by using the following steps.

  • Page 27: Filter Pump Test

    Installation Model: GGF-400, GGF-720 2-12. Filter Pump Test The following test will ensure the Filter Pump is operating correctly. CAUTION • Before proceeding with this test, ensure the unit has thoroughly cooled. Contact with HOT parts is possible if not thoroughly cooled.

  • Page 28: Restraint Device

    Installation Model: GGF-400, GGF-720 2-13. Restraint Device This unit requires use of some type Restraint Device (not included with the unit) to prevent the unit from being unintentionally moved and to prevent strain on electrical and gas line connections. The Restraint Cable length must be shorter then both electrical cord, or conduit, and the flexible gas line.

  • Page 29: Overview

    Model: GGF-400, GGF-720 3. Overview The following section provides a brief overview of the components, functions and accessories associated with the Giles Model GGF-400 & GGF-720 Gas Fryer. Please review this section carefully before proceeding any further. Basket & Elevator...

  • Page 30: Control Panel

    Overview Model: GGF-400, GGF-720 3-1. Control Panel...
  • Page 31 Overview Model: GGF-400, GGF-720 3-1. Control Panel Item Description Function The Power Switch is a 2-position Switch. Move the switch Power Switch upward to the “ON” position for operation. The Selector Switch is a 3-position switch which is used to select either “COOK”...

  • Page 32: Lower Cabinet Area

    Overview Model: GGF-400, GGF-720 3-2. Lower Cabinet Area...
  • Page 33 Overview Model: GGF-400, GGF-720 3-2. Lower Cabinet Area Item Description Function Used to direct cooking oil flow when the pump is in Diverter Valve Handle operation, either to the cook vat or to the oil discharge hose. Quick Disconnect for Used to connect the Oil Discharge Hose to the Fryer for Oil Discharge Hose removal of used cooking oil.

  • Page 34: Filter Pan Assembly

    Overview Model: GGF-400, GGF-720 3-3. Filter Pan Assembly * Not standard item ... ordered separately...
  • Page 35 Overview Model: GGF-400, GGF-720 3-3. Filter Pan Assembly Item Description Function Designed to capture and filter larger particles of cooking Crumb Screen sediment and residue from the cooking oil as it drains into the Filter Pan. Used to tightly hold down the filter paper. Improper Hold Down Frame placement will likely affect filter pump performance.

  • Page 36: Basket And Elevator Assembly

    Overview Model: GGF-400, GGF-720 3-4. Basket and Elevator Assembly...
  • Page 37 Overview Model: GGF-400, GGF-720 3-4. Basket and Elevator Assembly Item Description Function Covers cook vat during the cooking cycle. When in place Basket Cover prevents hot cooking oil from splashing out of the vat. Holds Fry Basket as it is lifted or lower by the Auto-Basket Basket Carrier Lift.

  • Page 38: Accessories (Included)

    Overview Model: GGF-400, GGF-720 3-5. Accessories (Included) Description/ Part Function Part Number Kettle Drain Brush Use to clean the Fry Pot & pot P/N 71025 Drain. Stir Paddle Use to stir cooking oil and P/N 77775 products being cooked. 77775 Pot Brush Use to clean Fry Pot.
  • Page 39 Overview Model: GGF-400, GGF-720 3-5. Accessories (Included) Part Description/Part Number Function Small Teflon Brush, Use to clean space between heat P/N 73235 exchanger and pot wall. Use for removing liquid shortening from unit. Discharge Hose Assembly P/N 33667 33667 NOTE: DO NOT USE TO WASH DOWN THE COOK VAT! L-Shaped Teflon Brush P/N 73233...

  • Page 40: Accessories (Not Included)

    Overview Model: GGF-400, GGF-720 3-6. Accessories (Not Included) Description/ Part Function Part Number Filter Paper Use to filter the cooking oil. P/N 60810 60810 Filter Powder Use as an aid in filtering cooking P/N 72004 oil. 72004 Fryer Boil-Out Fry pot cleaning agent, add to P/N 72003 water during boil-out procedure.
  • Page 41 Description/ Part Function Part Number A portable oil disposal container with a capacity of 80-lbs of liquid Giles Oil Caddy shortening. P/N 79187 Note: For use with filtered, warm oil only. No crumbs or debris. Helps prevent larger crumb Filter Pan Crumb Screen...
  • Page 42 Overview Model: GGF-400, GGF-720 Notes:...

  • Page 43: Unit Preparation

    Model: GGF-400, GGF-720 4. Unit Preparation Giles Enterprises, Inc. takes pride in the quality of its workmanship. Every effort has been made to ensure that you have received a unit that is in excellent operating condition. Each unit must pass rigorous quality control tests prior to shipment.

  • Page 44: Power Test

    Unit Preparation Model: GGF-400, GGF-720 4-2. Power Test The following test will ensure the unit has power. 1. Follow steps shown in Section 4-1. 2. Ensure the main circuit breaker powering the unit is ON. 3. Place the Power Switch in the ON position.

  • Page 45: Filter Pump Test

    Unit Preparation Model: GGF-400, GGF-720 4-4. Filter Pump Test The following test will ensure the Filter Pump is operation correctly. 1. Follow steps shown in Section 4-1. 2. Press the Power Switch to the ON position. 3. Open Cabinet Door. 4.
  • Page 46 Unit Preparation Model: GGF-400, GGF-720 Notes:...

  • Page 47: Fryer Operation

    Model: GGF-400, GGF-720 5. Fryer Operation This section describes how to operate the Giles, Model GGF-400 & GGF-720 Gas Fryer. DANGER • Turn off the Fryer power switch and Fryer’s main supply power at the main circuit breaker box before cleaning or performing maintenance.

  • Page 48: Cooking Controller

    Fryer Operation Model: GGF-400, GGF-720 5-01. Cooking Controller The following section describes the functions, features and programming of the Cooking Controller.

  • Page 49: Button And Function

    Model: GGF-400, GEF-720 Fryer Operation 5-01.1. Buttons and Functions Use to set and display cooking temperature. Hold for 5 seconds to display current temperature. Use to increase or decrease cooking time and temperature, and to raise/lower basket. Also used to scroll through menu options.

  • Page 50: 5-1.2. Programming A Cooking Temperature And Time

    Fryer Operation Model: GGF-400, GGF-720 5-01.2. Programming the Cooking Temperature and Time To Begin Programming, Press Program Key For 5 Seconds Bottom Display To Read Upper Display To Read All Choose Menu PROG Press Button For Menu You Wish To Program Bottom Display To Read Upper Display To Read Product Selections...
  • Page 51 Fryer Operation Model: GGF-400, GGF-720 CONTINUE PROGRAMMING FROM PREVIOUS PAGE Bottom Display To Read Time or Temperature Press Temperature Key To Press Clock Key To Change Cook Change Cook Time Temperature Bottom Display To Read Upper Display To Read Press Up Or Down Time or Temperature Use Up And Down Arrow Keys To Select Desired...

  • Page 52: 5-1.3. Enter A Cooking Cycle

    Fryer Operation Model: GGF-400, GGF-720 5-01.3. Entering Cook Cycle Press Button For Menu You Wish To Run (Menu LED Will Illuminate and temperature will regulate to that setpoint ) Put product into the basket. Press the Press Down Arrow Key To Basket Key Lower Basket Press Button For Menu You Wish To Run (Menu LED Should Already Be Illuminated)

  • Page 53: Enter Cool Cycle

    Fryer Operation Model: GGF-400, GGF-720 5-01.5 Entering Cool Cycle To Begin Cool Cycle (Display Must Read “Ready”), Press Cool Key For 5 Seconds Temperature Setpoint Will Change To 275 Degrees. No Menus can Be Activated In This State. 5-01.6 Exit Cool Cycle To Exit Cool Cycle , Press Cool Key Temperature Setpoint Will Change To Preheat To Begin Heating To Setpoint...

  • Page 54: Enter Boil Out Cycle

    Fryer Operation Model: GGF-400, GGF-720 5-01.8 Entering Boil Out Cycle To Begin Boil Out Cycle (Display Must Read “Ready”), Press Boil Out Key For 5 Seconds Temperature Setpoint Will Change To 200 Degrees. Basket Will Raise. No Menus can Be Activated In This State. 5-01.9 Exit Boil Out Cycle To Exit Boil Out Cycle , Let 30 Minute Timer Expire and/or Cycle Power To Unit.

  • Page 55: Cooking Procedure

    Fryer Operation Model: GGF-400, GGF-720 5-2. Cooking Procedure This section describes the cooking process as if beginning with cold shortening. This process may vary during repetitious cooking cycles or depending on the user’s specific cooking procedures. 1. Raise and remove the Cooking Basket. See Section 5-1.7 .
  • Page 56 Fryer Operation Model: GGF-400, GGF-720 5-2. Cooking Procedure (Continued) 9. Use the supplied Stir Paddle and occasionally stir the shortening vigorously while Fryer is preheating. This will eliminate formation of cold spots, allowing for more even cooking of the product. 10.
  • Page 57 Fryer Operation Model: GGF-400, GGF-720 5-2. Cooking Procedure (Continued) 12. Uncooked product may be placed in the Cooking Basket before or after the basket has been lowered into the shortening. Use extreme caution when placing product into HOT cooking oil. HOT liquid shortening and any splash back from pot can cause severe burns.
  • Page 58 Fryer Operation Model: GGF-400, GGF-720 5-2. Cooking Procedure (Continued) 14. When a pre-determined percentage of the selected cooking time has elapsed, the stir product alert will sound. Press the Alarm silence key to silence, then using oven mitts remove the Basket Cover and stir the cooking product with the Stir Paddle .

  • Page 59: Filtering Liquid Shortening

    5. Ensure that Filter Pan contains properly installed Filter Paper. Only (1) sheet of paper is required. 6. Add one packet (4.8 oz) of filter powder into the Filter Pan, distribute evenly. (Product available from Giles - Part No. 72004) DANGER DANGER In this step liquid shortening is drained into the Filter Pan.
  • Page 60 Fryer Operation Model: GGF-400, GGF-720 5-3. Filtering Liquid Shortening (Continued) NOTE: If the Fry Pot does not drain, or drains very slowly, use the supplied Kettle Drain Brush to break up the crumbs & clean then from in the drain. Be careful to not puncture the filter paper in the filter pan;...

  • Page 61: Removal Of Liquid Shortening

    5-4. Removal of Liquid Shortening This section describes how to remove liquid shortening from the Fryer in preparation for a Boil-out procedure or for disposal. The Giles Oil Caddy (not included) is referenced in this section for disposing of used shortening.
  • Page 62 7 . Connect the Oil Discharge Hose to the quick-disconnect coupling 8. Place the discharge end into a suitable Hot Oil Disposal Container (Giles Oil Caddy is shown). 9. Turn the Oil Diverter Valve to the TO HOSE or ”RIGHT-HAND” position.
  • Page 63 Fryer Operation Model: GGF-400, GGF-720 5-4. Removal of Liquid Shortening (Continued) 11. After the Liquid Shortening is removed from the Filter Pan, place the Selector Switch in the OFF position. 12. Place Power Switch in the OFF position. 13. Turn the Oil Diverter Valve handle to the “TO VAT” or “LEFT-HAND”...

  • Page 64: Normal Shut-Down

    Fryer Operation Model: GGF-400, GGF-720 5-5. Normal Shut-Down This section explains the process of shutting the unit down. 1. Place the Selector Switch in the center OFF position. 2. Place the Power Switch in the OFF position, Power Light turns off. 3.

  • Page 65: Cleaning

    4. Follow the directions on the Boil-Out/Cleaner product being used ... add the recommend amount of product to the vat. CAUTION If using a product other than Giles Boil-Out (P/N 72003) pay close attention to the instructions listed on the container. Many commercially available cleaners are caustic requiring special precautions.
  • Page 66 Cleaning Model: GGF-400, GGF-720 6-1. Boil Out Procedure (Continued) 5. Place the Power Switch in the ON position. 6. Place Selector Switch in the HEAT position. 7 . Press & hold the Boil-Out button on the Controller until the unit enters Boil-Out mode. The Boil-Out solution will heat to 200°F (93°C).
  • Page 67 Cleaning Model: GGF-400, GGF-720 6-1. Boil Out Procedure (Continued) 14. Slowly turn the Drain Valve Handle to the CLOSE ”DOWN” position. 15. Clean Filter Pan and replace Filter Paper; follow directions in Section 6-2; Cleaning of Filter Pan Components after the Boil-Out procedure. 16.

  • Page 68: Cleaning The Filter Pan And Replacing Filter Paper After Boil Out

    Cleaning Model: GGF-400, GGF-720 6-2. Cleaning the Filter Pan & Replacing Filter Paper after Boil-Out This section explains the process for cleaning the Filter Pan and replacing Filter Paper. This process should be carried out each time a Boil-Out Procedure (Section 5-5) is performed. Use Thermal Mitts for protection from hot parts.

  • Page 69: Cleaning The Filter Pan And Replacing The Filter Paper Daily

    Cleaning Model: GGF-400, GGF-720 6-3. Cleaning the Filter Pan and replacing the Filter Paper daily This section explains the process of routine daily cleaning the Filter Pan and replacement of the Filter Paper. This process should be carried out daily, at a minimum. Use Thermal Mitts for protection from hot parts.
  • Page 70 Cleaning Model: GGF-400, GGF-720 Notes:...

  • Page 71: Troubleshooting

    Model: GGF-400, GGF-720 7. Troubleshooting This section describes troubleshooting procedures for the Giles, Model GGF Gas Fryer. Refer to the wiring diagram included with this manual, as needed, for more detailed analysis (a diagram is also attached to the unit’s Back Panel).
  • Page 72 Troubleshooting Model: GGF-400, GGF-720 7-01. Temperature Control System (Continued) Problem Probable Cause Repair Procedure A. Fryer main gas line valve Is A. OPEN the main gas line valve. FRYER WILL NOT HEAT: CLOSED. Power light on. Heat light not on. Alarm Sounding.
  • Page 73 Troubleshooting Model: GGF-400, GGF-720 7-01. Temperature Control System (Continued) Problem Probable Cause Repair Procedure FRYER HEATS SLOW: (slow A. Incorrect Cooking procedures. A. Consult Operations Manual for recovery) Heat light stays on. proper Cooking procedure. B. Check burner system. B. Burner system problem. C.

  • Page 74: Oil Filtration System

    Troubleshooting Model: GGF-400, GGF-720 7-02. Oil Filtration System Problem Probable Cause Repair Procedure OIL NOT RETURNING TO FRY A. Selector Switch not in A. Place Selector Switch in POT: “Filter/Pump” position. “Filter/Pump” position. B. Air Leak (hose, fittings, filter B. Repair Air Leak. paper).

  • Page 75: Parts List

    INTERNET: Please visit our website at: www.gfsequipment.com or e-mail us at services@gfsequipment.com. The goal of the Giles team is to provide you with the highest quality service and assistance possible. You can help us accomplish this by obtaining the following information and having it readily available when calling.

  • Page 76: Control Panel & Front Header

    Parts List Model: GGF-400, GGF-720 8-2. Control Panel & Front Header...
  • Page 77 Parts List Model: GGF-400, GGF-720 8-2. Control Panel & Front Header Item Part Number QTY. Description 20390 SWITCH, VACUUM 20390 23751 TERMINAL BLOCK 23751 24276 24276 TRANSFORMER, 120VAC X 24VAC 24275 TRANSFORMER, 208/240VAC X 24VAC 24275 38365 38365 INLINE FUSE, 1A, HEAT SHRINKED 23749 23749 THERMOSTAT, HI-LIMIT, WATLOW, 425DEG,120VAC...

  • Page 78: Front Lower Cabinet

    Parts List Model: GGF-400, GGF-720 8-3. Front Lower Cabinet * Not shown...
  • Page 79 Parts List Model: GGF-400, GGF-720 8-3. Front Lower Cabinet Item Part Number Description 41900 COUPLING, QUICK DISCONNECT,FEMALE,FILTER PAN 90891 VALVE HANDLE, WELD ASSY, DIVERTER VALVE 91017 91017 VALVE HANDLE, DRAIN, WELD ASSY, GGF 21157 21157 SWITCH, LIMIT, 15A, 250V DRAIN SWITCH 41699 COUPLING, QUICK DISCONNECT, FEMALE 38845...

  • Page 80: Rear Lower Cabinet

    Parts List Model: GGF-400, GGF-720 8-4. Rear Lower Cabinet...
  • Page 81 Parts List Model: GGF-400, GGF-720 8-4. Rear Lower Cabinet Item Part Number Qty. Description 90893 HANDLE, GAS SHUT OFF VALVE 90893 21801 21801 BLOWER, DRAFT, 115V 21800 21800 BLOWER, DRAFT, 208-240V 90872 90872 COVER, FILTER PAN 34955 GAS COCK, SHUTOFF VALVE 34955 91344 GAS CONTROL VALVE ASSEMBLY...

  • Page 82: Basket Cover And Basket

    Parts List Model: GGF-400, GGF-720 8-5. Basket Cover and Basket...
  • Page 83 Parts List Model: GGF-400, GGF-720 8-5. Basket Cover and Basket Item Part Number Qty. Description 33883 33883 BASKET COVER, ASSY, GGF-720 33884 BASKET COVER, ASSY, GGF-400 33884 38930 BASKET CARRIER, ASSY, GGF-720 38930 39165 BASKET CARRIER, ASSY, GGF-400 39165 91811 BASKET, WELD ASSY, GGF-720 91811 33718...

  • Page 84: Filter Pan

    Parts List Model: GGF-400, GGF-720 8-6. Filter Pan * Accessory item, Not included...
  • Page 85 Parts List Model: GGF-400, GGF-720 8-6. Filter Pan Item Part Number Qty. Description 40955 HOSE, 1/2NPT X 15.75 40649 CASTER, SWIVEL, 2-9/16, FILTER PAN 38834 FILTER PAN, ASSY, GGF GAS FRYER 38834 30040-4 30040-4 STUD, FILTER PAN HOLD DOWN FRAME 38841 HANDLE, SUPPORT FRAME, FILTER PAN, GGF 38841...

  • Page 86: Plumbing

    Parts List Model: GGF-400, GGF-720 8-7. Plumbing...
  • Page 87 Parts List Model: GGF-400, GGF-720 8-7. Plumbing Item Part Number Qty. Description 70912 PUMP AND MOTOR ASSY, VIKING 70910 PUMP ONLY 70911 70911 MOTOR ONLY 42250 STREET ELL, BLACK, 1/2” 42250 43850 NIPPLE, 1/2” CLOSE 41900 QUICK DISCONNECT, 1/2” 45755 45755 3-WAY VALVE 41699...
  • Page 88 Parts List Model: GGF-400, GGF-720 Notes:...
  • Page 89 FOODSERVICE EQUIPMENT Giles Enterprises, Inc. 2750 Gunter Park Drive West • Montgomery, Al 36109 USA 334.272.1457 • Service Hotline: 800.554.4537 (USA & Canada Only) • FAX 334.239.4117 • www.gfsequipment.com Form No. 65474 (Rev date: 10/12/2010)

This manual is also suitable for:

Ggf-400Ggf-720
