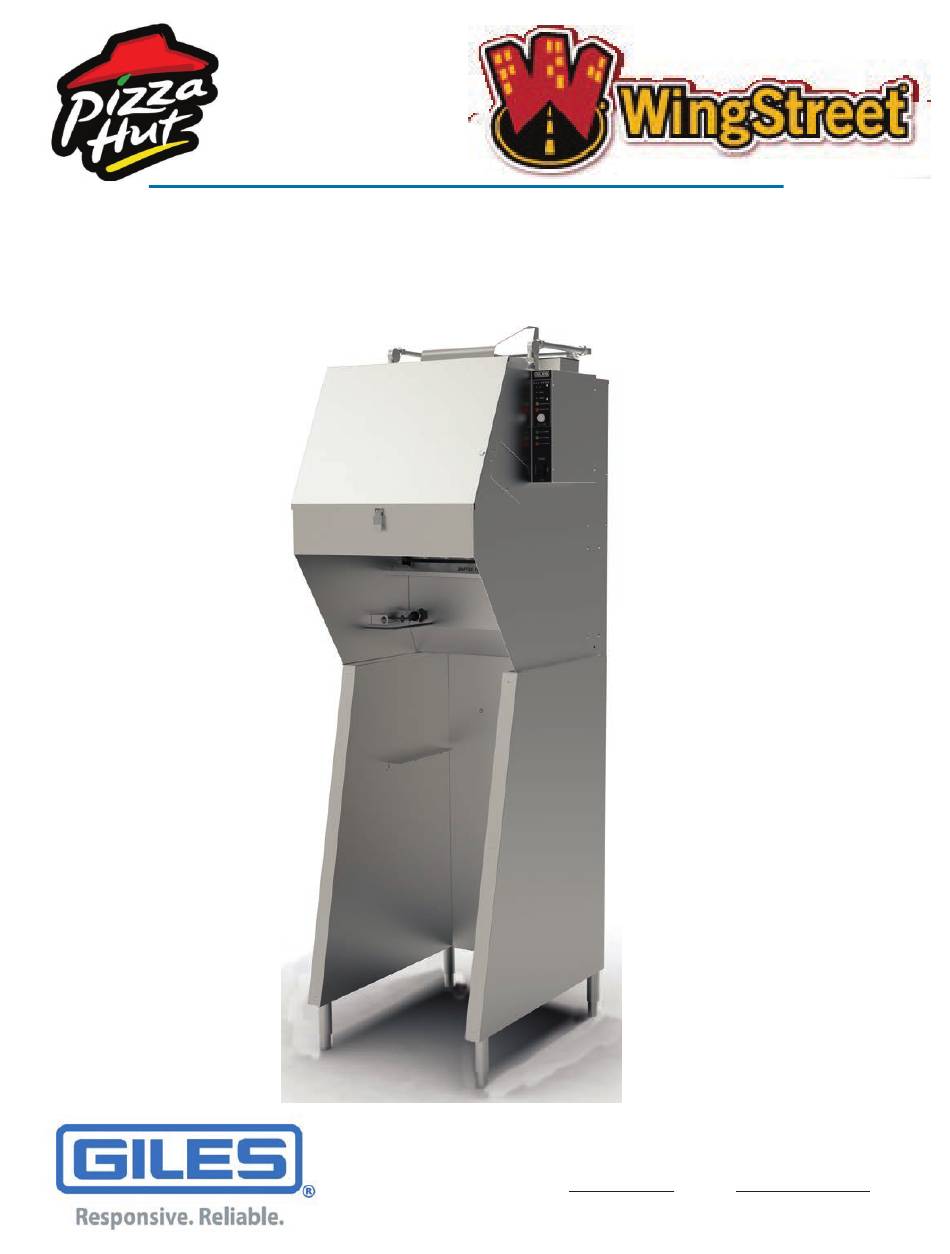

Model FSH-2-PH
Operation Manual - User Guide
ISO 9001­2015 Registered • Committed to Quality
2750 Gunter Park Drive West • Montgomery, AL 36109 USA
Toll Free: 800.554.4537
Other: 334.272.1457
(USA & Canada Only)
Fax: 334.239.4117 • Website: www.gfse.com • Email: services@gfse.com
Printed in USA, Form 64408 (Rel. Date: Feb.2014, Rev. Date: Feb.2022. Rev. I)

Advertisement

Table of Contents
loading

Related Manuals for GILES FSH-2-PH

Summary of Contents for GILES FSH-2-PH

  • Page 1 Model FSH-2-PH Operation Manual - User Guide ISO 9001­2015 Registered • Committed to Quality 2750 Gunter Park Drive West • Montgomery, AL 36109 USA Toll Free: 800.554.4537 Other: 334.272.1457 (USA & Canada Only) Fax: 334.239.4117 • Website: www.gfse.com • Email: services@gfse.com...
  • Page 2 ­ Site Architectural Plans • If code officials deny the plan due to Ventless Recirculating Hood concerns, please contact Giles Technical Service at 800.554.4537 or email services@gfse.com. Please have pertinent information available relating to the denial, including the code official’s contact information (name, phone number, email address).
  • Page 3 • During the Limited Warranty period, Giles will replace or recondition, at its factory, any part(s) of this unit which Giles inspectors judge defective, provided the unit has been properly installed, subjected to normal usage, and operated and maintained in accordance with specified procedures.

  • Page 5: Table Of Contents

    Table Of Contents FSH−2−PH Safety ..............v Safety Overview .
  • Page 6 Table Of Contents Model: FSH­2, FSH­2A­99 4.02.5 E.A.C. Collector Cell (or HEPA) Installation ..........30 4.02.6 Charcoal Filter Removal/Installation .

  • Page 7: Safety

    Safety Overview: The information contained in this manual has been prepared to describe the proper procedures for safely installing, operating and maintaining Giles Food Service Equipment. Throughout the manual, safety precautions are clearly identified and will immediately precede the procedures or processes to which they apply.

  • Page 8: Specific Safety Precautions

    Safety Specific Safety Precautions: For your safety, please observe all the following precautions when operating or servicing this GILES food service equipment. Adhering to the following important safety information will help to prevent personal injury and/or damage to the equipment or property.
  • Page 9 Safety FSH−2−PH Specific Safety Precautions: • Exercise care when uncrating and removing the unit from shipping pallet. The unit is top­heavy which presents a tipping hazard ... extreme care must be taken when moving it into position. • Once located, be sure unit is properly leveled and anchored. •...
  • Page 10 Comply with all appropriate state and/or local heath regulations regarding cleaning and sanitization of any food service equipment. • To clean difficult surface areas, having excessive build­up of grease residue, GILES recommends using a mild, biodegradable, non­toxic degreasing cleaner such as Simple Green® Crystal Foaming Spray Degreaser/Cleaner. •...

  • Page 11: Introduction

    FSH−2−PH Introduction 1. Introduction Thank you for selecting the GILES Free Standing Ventless Recirculating Hood, manufactured by Giles Enterprises, Inc., Montgomery, Alabama (USA), hereafter referred to as "Giles". Giles’ Ventless Hood technology is the result of extensive research, development and engineering.

  • Page 12: Specifications ­ Overall Dimensions

    SYM. DESCRIPTION REVISIONS RESTRICTED CONFID THIS DRAWING AND ALL THE INFORMATIO 28 1/8 EXCLUSIVE PROPERTY OF GILES ENTERP ON A CONFIDENTIAL BASIS. THE RECIPIEN DRAWING, TO RETURN IT UPON REQUEST ENTERPRISES, INC. DRAWING OR THE INFORMATION SHOWN 22 3/16 MONTGOMERY, ALABAMA...

  • Page 13: Agency Certifications

    Introduction FSH−2−PH 1.04 Agency Certifications 1.06 Unit Weight Weights Model Crated − lbs [kg] Uncrated − lbs [kg] FSH­2­PH 462 [146] 327 [148]...
  • Page 14 Introduction FSH−2−PH...

  • Page 15: Installation

    Location • DO NOT ALTER, ADD ATTACHMENTS OR OTHERWISE MODIFY THE EQUIPMENT. • Failure to comply with installation requirements as specified by the Giles Hood Approval Letter will void the factory warranty. Before unpacking, review dimensions and clearances shown in Section 1.03 and determine whether the location selected for installation is suitable.

  • Page 16: Unpacking

    Installation FSH−2−PH 2.02 Unpacking IMPORTANT !! When received, if the load exhibited any sign of damage, the equipment and all included accessories should have been immediately inspected, and the freight company promptly notified of any damages. Typically, it will be the purchaser’s responsibility to report &...

  • Page 17: Electrical Specification (Hood Only)

    Installation FSH−2−PH 2.03 Electrical Specification (Hood Only) • Food service equipment must be properly grounded in accordance with local code, or in the absence of local code, with the National Electrical Code, ANSI/NFPA 70. Improper grounding may result in electrical shock to users.
  • Page 18 Installation FSH−2−PH 2.03.1 Electrical Connections − continued Figure 2.03.1‐A: 1‐Ph Hood ... Separate External Appliance Interlock Contactor ‐ Details As shown on page 7, a 1­phase FSH‐2‐PH hood requires a separate, field installed, appliance interlock circuit with an appropriately sized contactor, connected as shown by this diagram ... customer supplied. Remove upper rear hood panel to gain access to terminal blocks for connecting coil control wiring (P1, P2).
  • Page 19 Installation FSH−2−PH 2.03.1 Electrical Connections − continued Figure 2.03.1‐B: 3‐Ph Hood & Appliance on Same Power Supply, 208‐240V ... Appliance Receptacle Installed in the Hood. Fire alarm tie­In box Not used w/Receptacle Option DO NOT remove jumper wires...

  • Page 20: Hood Power Connection

    & purchaser. Work should be performed by a qualified professional electrical contactor. Installation must comply with all local code requirements. Giles assumes no responsibility with respect to code compliance regarding installation and use of this equipment. See Figures 2.03.1‐A ... 2.03.1‐B Install appropriate circuit breakers in electrical panel supplying power for the hood.

  • Page 21: Limitations & Clearances

    Installation Installation 2.04 Limitations & Clearances The following describes various appliance limitations and required clearances for appliances to be placed underneath the hood. FSH‐2 & FSH‐2A‐99 ventless recirculating hoods are only listed for use with electric fryers that comply with the following limitations. ONLY electrically heated fryers may be used ...

  • Page 22: Hood Clearances

    2.05 Fire Suppression System The fire suppression system installed in the Giles ventless hood is an ANSUL® R‐102 Restaurant Fire Suppression System (UL‐710B Listed). Final field set‐up, charging, certification and arming of the system must be performed by an authorized Ansul distributor/dealer in accordance with the system listing.

  • Page 23: Detector Fusible Link & Gas Cartridge Location

    Installation Installation 2.05.1 Detector Links & Gas Cartridge Location Damper Link 285°F factory­installed Plenum Link 165°F supplied & installed by Ansul Technicians Appliance Link: Use 165°F fusible link ... supplied & installed by Ansul Technicians Appliance cooking surface LT­20 R Cartridge supplied &...

  • Page 24: Fire Extinguishing Nozzle & Tank Location

    Installation FSH−2−PH 2.05.2 Fire Extinguisher Nozzles & Tank Location All nozzles are factory­installed and aligned in the proper operating position. DO NOT MOVE OR ADJUST. Plenum Nozzle Ansul: 1/2­N flow Plenum Nozzle Ansul: 1/2­N flow Appliance Nozzles Ansul: 1/2­N flow Ansul Tank, 1­1/2 Gallon...

  • Page 25: Remote Manual Activation Station

    Installation FSH−2−PH 2.05.3 Remote Manual Activation Station (Customer Supplied) Hood requires use of the ANSUL® R­102 Standard Manual Activation System. The manual pull station must be conspicuously mounted near a path of egress and connected to the hood for activating the fire extinguishing system from the remote location.
  • Page 26 Installation FSH−2−PH 2.05.3 Remote Manual Activation Station − continued Cut 1/2 EMT conduit to lengths, as indicated below, and mount the specified pieces to the wall, as shown. Note: Conduit pieces marked with (*) will not to be affixed to the wall. Connection point on hood back Ansul Manual Pull Assembly location and conduit...
  • Page 27 Installation FSH−2−PH 2.05.3 Remote Manual Activation Station − continued The conduit hinge section of this configuration will allow the hood & fryer to be moved straight out from the wall for cleaning and service, without need to disconnect the manual pull system, risking an accidental system discharge, or need to disrupt other appliances in the cook line.

  • Page 28: Restraining Device

    Installation FSH−2−PH 2.06 Restraining Device (customer provided) Code officials in many jurisdictions may require that the fryer under this hood must be secured so that it can not move from beneath the hood. The following diagram depicts an example of a typical suitable restraining configuration.

  • Page 29: Overview

    Overview FSH-2-PH 3. Overview The following provides a brief overview of the components, functions, and accessories of the Free Standing Ventless Hood, Model FSH‐2‐PH. Please review this section carefully before proceeding further. Filter Chamber Section 3.01 Control Box Figure 3.02...

  • Page 30: Filter Chamber & Hood Front

    Overview FSH-2-PH 3.01 Filter Chamber & Hood Front Not Shown CE Listed Models must use HEPA Filter...
  • Page 31 Helps to control undesirable cooking aromas. It should be replaced monthly (approx.). DO NOT attempt to clean & re‐ Charcoal Filter use filter. Have a standby filter (Giles #30248) for quick exchange to avoid lost time! NO FILTER WILL COMPLETELY ELIMINATE COOKING ODOR.

  • Page 32: Control Box W/Timer

    Overview FSH-2-PH 3.02 Control Box w/Timer NOTE: Timer feature is NOT included on FSH‐2 Models. Not present on HEPA Filter Models...
  • Page 33 Overview FSH-2-PH 3.02 Control Box w/Timer Item Description Function LED light cluster indicates status of the Electronic Air Cleaner (E.A.C.) system. [ON] ­ Turns ON when hood is powered­up. Indicates that the E.A.C. system is powered and functioning normally to clean the air. This is the only light ON when system is operating normally.

  • Page 34: Accessory Items Included W/Hood

    Overview FSH-2-PH 3.03 Items Included w/Hood Part Description/Part Number Function Baffle Filter Removes large particle P/N 42300 contaminant from the air stream. EAC Filter P/N 20520 Removes smoke and fine particle Replaced by P/N 41254 HEPA  contaminant from the air stream.

  • Page 35: Accessory Items Not Included W/Hood

    EAC collector cell. Foaming Crystal Sample can of GILES recommended Cleaner/Degreaser collector cell cleaner. P/N 41510 It is readily available from Giles 12‐count Case and on­line distributors, as well as NSF approved many nationwide retail outlets. 3.04 Items Not Included w/Hood...
  • Page 36 Overview FSH-2-PH...

  • Page 37: Operation

    Operation FSH-2-PH 4. Operation This section explains hood operation and filter maintenance procedures. 4.01 Hood Operation This section describes starting the ventless hood. Be sure that all filters are in place and properly seated before attempting to start. Hood will not start unless the Filter Access Cover is in position and secured properly .

  • Page 38: Baffle Filter Removal

    Operation FSH-2-PH 4.02.2 Baffle Filter Removal The Baffle Filter has sharp exposed edges, which may cause cuts. Use due caution when handling and cleaning. Heavy duty rubber gloves are advised. Turn OFF hood power ... ①Lift rear edge of filter enough to clear the edge of rear support channel.

  • Page 39: Baffle Filter Installation

    Operation FSH-2-PH 4.02.3 Baffle Filter Installation The Baffle Filter has sharp exposed edges, which may cause cuts. Use due caution when handling and cleaning. Heavy duty rubber gloves are advised. Switch arm must be actuated by the Baffle Filter when...

  • Page 40: Collector Cell (Or Hepa) Removal

    Operation FSH-2-PH 4.02.4 E.A.C. Collector Cell / HEPA Filter Removal ① Unlatch Access Cover and lift off. ② Grasp E.A.C. Collector Cell / HEPA Filter and pull straight out, at a slightly upward angle. 4.02.5 E.A.C. Collector Cell / HEPA Filter Installation Pin must align &...

  • Page 41: Charcoal Filter Removal/Installation

    Operation FSH-2-PH 4.02.6 Charcoal Filter Removal & Installation Switch must be actuated by Note airflow arrow the filter when installed. on label; “Blue fiber‐fill side UP” ① Align in guide channels, slide straight into hood. Filter must fit flush with front. Blue fiber‐fill side ①...

  • Page 42: Hood Alarm Conditions

    Operation FSH-2-PH 4.03 Hood Alarm Conditions 4.03.1 Filter Missing − Baffle, Charcoal, or HEPA If either the baffle, charcoal, or HEPA filters is not in place, or not positioned correctly, the red [FILTER MISSING] light will turn ON. Power to the fryer under the hood is shutdown until the condition is corrected;...

  • Page 43: Filter Status & Alarm

    Operation FSH-2-PH 4.03.3 E.A.C. Filter Status & Alarm Three LED lights on the control box panel indicate the operational status of the Electronic Air Cleaner (E.A.C.) system. [ON] Indicates that the E.A.C. cell is installed, powered and operating. It will be the only light ON if the cleaning system is operating normally.

  • Page 44: E.a.c. Filter Cell Cleaning Timer Operation

    Operation FSH-2-PH 4.04 E.A.C. Filter Cell Cleaning Timer Operation The hood is equipped with a Filter Cell Cleaning Timer. This feature is intended to help users maintain a proper cleaning routine for the sustainable E.A.C. Collector Cell. Timely cleaning is essential to ensure that the cleaning system continues to effectively remove grease­laden cooking vapor particulate from the recirculated air.
  • Page 45 Operation FSH-2-PH NOTES:...

  • Page 46: Cleaning & Maintenance

    Use a non­scratch pad to remove residue, as needed, rinse throughly with clean hot water. Stand upright so that water will drain and allow to air dry overnight. Giles recommends Simple Green® Crystal Foaming Spray Cleaner and alternative cleaning product.
  • Page 47 A complimentary sample is supplied with new equipment. It can be ordered from Giles, item #41510 (12‐count case) and is also available from various on­line sources and retail outlets. When used as directed, a case of cleaner should be a 4 to 5 week supply, approximately, depending on equipment model.
  • Page 48 1. Cleaning with this method requires a suitable, leakproof container, such as a trash bin, recycle bin, plastic tote, or a Giles soaking tank. The container must be large enough to hold the cell long with enough cleaning solution for it to be completely submerged, either standing on end, on edge, or lying flat.

  • Page 49: Charcoal Filter Maintenance

    Installation). It CANNOT be cleaned and reused. Typical replacement cycle is every 30 to 40 days, depending on usage. Use GILES replacement Item No. 30248. Record replacement date on new filter. IMPORTANT: Failure to use Giles OEM parts and OEM replacement filters may void the factory warranty. 5.01.4 HEPA Filter Maintenance [HEPA version only] Hood is available equipped with a replaceable HEPA Filter as an alternative to the electronic air cleaning (E.A.C.) system...

  • Page 50: General Hood Cleaning

    Cleaning & Maintenance FSH−2−PH 5.02 General Hood Cleaning DO NOT wash down hood with water from a spray hose. DO NOT steam clean or use any type pressure washing equipment. DO NOT use products containing chlorine or other caustic chemicals. DO NOT use abrasive products, steel wool or scouring pads.

  • Page 51: Hood Maintenance

    [FRYER POWER] light should turn ON again. Should any of these tests fail to yield the described results, contact a factory­authorized service company and have the unit evaluated and repaired. Call GILES Services at 800.554.4537 for assistance in locating a service provider in your area.

  • Page 52: Semi­annual Fire System Inspection & Maintenance

    Cleaning & Maintenance FSH−2−PH 5.04.2 Annual Fire Suppression System Inspection & Maintenance Same as Semi‐annual Inspection & Maintenance except: • All detector links must be replaced with new. See Section 2.05.1, Fire Suppression Detector Link Specification & Location . 5.04.3 12−Year Fire Suppression System Inspection & Maintenance Same as Annual Inspection &...
  • Page 53 Cleaning & Maintenance FSH−2−PH...

  • Page 54: Troubleshooting

    Troubleshooting FSH−2−PH 6. Troubleshooting This section describes troubleshooting procedures for the FSH‐2, FSH‐2A‐99 Ventless Hoods. Refer to the wiring diagram provided with the unit as needed for more detailed analysis. • Electrical troubleshooting procedures should be performed ONLY by qualified service personnel. Death or serious injury will result from contact with energized electrical components.
  • Page 55 Troubleshooting FSH−2−PH 6.01 Troubleshooting Procedures − continued Problem Probable Cause Corrective Action Fryer will not power­up: a. Baffle filter is missing or not Install filter / check positioning. • light ON [HOOD POWER] properly installed • [ light ON FILTER MISSING] b.
  • Page 56 Troubleshooting FSH−2−PH...

  • Page 57: Parts List

    Website: Email: Our goal at Giles is to provide the highest possible quality of service and assistance. To help us accomplish this, please have the following information readily available when calling, along with a brief description of the problem being experienced. Please record the unit information in the table below for quick reference.

  • Page 58: Ventless Hood ­ Front

    Parts List FSH−2−PH 7.02 Ventless Hood − Front Not shown...
  • Page 59 Parts List FSH−2−PH 7.02 Parts List for Ventless Hood − Front Item Part No. Qty. Description 90254 FILTER ACCESS PANEL Assembly 20520 EAC FILTER, 20” 41254 HEPA FILTER, 20” (FOR HEPA FILTER VERSION ONLY) 30248 CHARCOAL FILTER, ASSY, 20” X 12­3/8” 23200 SWITCH, SNAP ACTION, ROLLER TYPE 21125...

  • Page 60: Ventless Hood ­ Control Box

    Parts List FSH−2−PH 7.03 Control Box + 15 ILS Only + Not Shown...
  • Page 61 Parts List FSH−2−PH 7.03 Parts List for Control Box Item Part No. Qty. Description 24209 L.E.D. CLUSTER, AIR FILTER, E.A.C. 20694 PILOT LIGHT, YELLOW, EAC TIMER 20693 PILOT LIGHT, RED, EAC TIMER 20692 SWITCH, MOMENTARY PUSH­BUTTON, EAC TIMER 20398 INDICATOR LIGHT, GREEN, 250V, 0.5W 20399 INDICATOR LIGHT, AMBER, 250V, 0.5W 20402...

  • Page 62: Ventless Hood ­ Rear

    Parts List FSH−2−PH 7.04 Ventless Hood − Rear...
  • Page 63 Parts List FSH−2−PH 7.04 Parts List for Ventless Hood − Rear Item Part No. Qty. Description 39272 TANK, ANSUL, 1.5­GAL SS 23778 SWITCH, SIDE ROTARY, 240V, 30A, W/O ARM 23779 ACTUATOR, ROTARY SWITCH 33589 BLOWER ASSEMBLY 41115 DAMPER, FIRE, 10 X 10, SHALLOW 24237 1 or 2 SWITCH, PLUNGER, 250V, 15A...
  • Page 64 Parts List FSH−2−PH Notes:...
  • Page 66 P.O. Box 210247 • 2750 Gunter Park Drive West • Montgomery, Al 36121­0247 USA Phone: 334.272.1457 • Toll Free: 800.554.4537 (USA & Canada Only) • FAX: 334.239.4117 • www.gfse.com Form No. 64408 (Rel. Date: Oct.2008, Rev. Date: Feb.2022, Rev. I)
