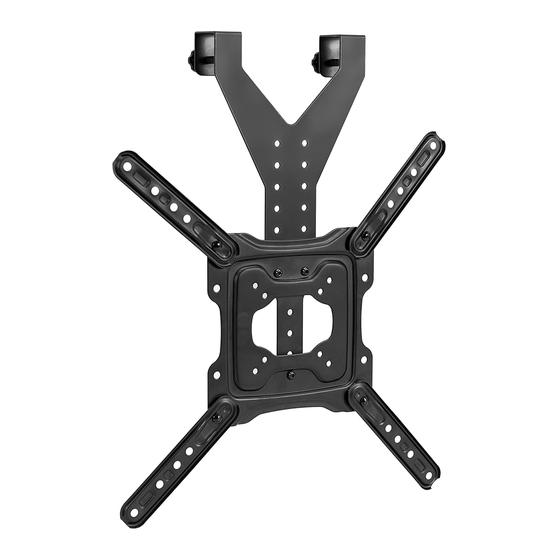

Loft Bed TV Mount
Instruction Manual
SKU: MOUNT-TV01LB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-tv01lb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-TV01LB
Summary of Contents for Vivo MOUNT-TV01LB
- Page 1 Loft Bed TV Mount Instruction Manual SKU: MOUNT-TV01LB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-tv01lb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Assemble VESA Brackets (C) to VESA Plate (B) in the appropriate configuration to fit your TV’s VESA pattern using M6x12mm Carriage Bolts (S-D) and M6 Nuts (S-C). Tighten using Wrench (T-A). NOTE: For 200x200mm and lower, do not use VESA Brackets (C). 300x300mm, 400x400mm 400x200mm, 300x400mm 400x300mm... - Page 4 STEP 2 OPTION A: Flat Back Monitor For flat back monitors, assemble VESA Plate (B) with VESA Brackets (C) using M6x14mm Screws (M-A) or M8x16mm Screws (M-B) with M8 Washers (M-E) and a Phillips screwdriver. OPTION B: Curved Back Monitor For curved back monitors, assemble VESA Plate (B) with VESA Brackets (C) using M6x30mm Screws (M-C) or M8x35mm Screws (M-D) with M8 Washers (M-E) and Spacers (M-F and/or M-G).
- Page 5 STEP 3 Place Hanger (A) onto VESA Plate (B) at the desired height.
- Page 6 STEP 4 Assemble Hanger (A) to VESA Plate (B) using M6 Nuts (S-C) and Wrench (T-A). STEP 5 Thread Clamp Screws (S-A) into Hanger (A). Place Screw Caps (S-B) on the ends of Clamp Screws (S-A). OPTIONAL: Pads (D) have been provided for mounting locations where Hanger (A) will touch or rest against a hard surface when mounted.
- Page 7 STEP 6 Place Hanger (A) over loft bed frame and tighten Clamp Screws (S-A) to secure the assembly in place. NOTE: Max clamping thickness is 1.25” (32mm).
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
