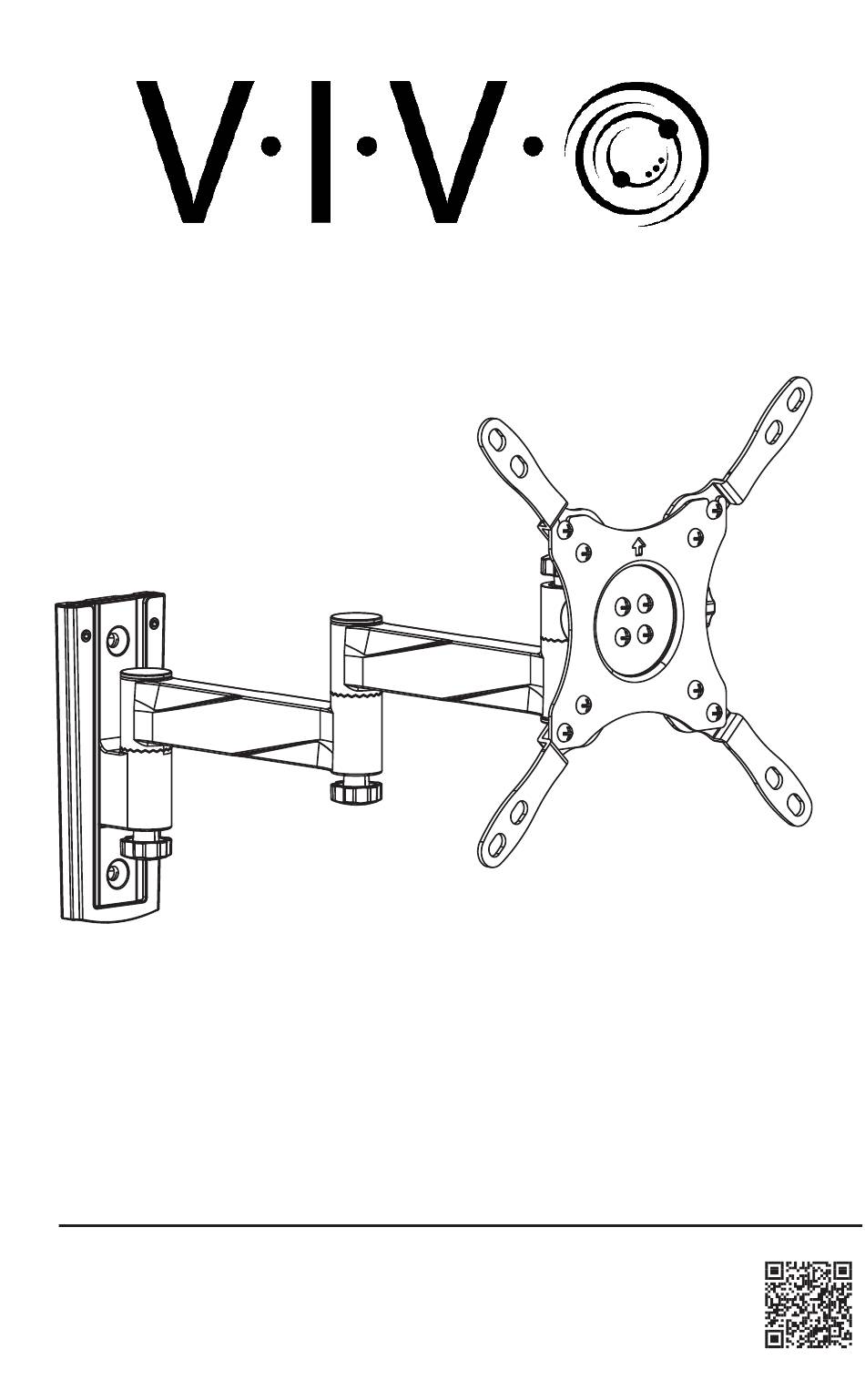

- Page 1 Quick Release TV Wall Mount SKU: MOUNT-TVQR1 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-tvqr1...
-
Page 2: We're Here For You
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Package Contents
Package Contents A (x1) B (x2) C (x1) D (x4) Wall Plate VESA Plate VESA Extension Included Hardware & Tools S-A (x8) S-B (x8) S-C (x4) M-A (x4) M-B (x4) M5x10mm Screw M5 Nut M6x6mm Set Screw M4x14mm Screw M5x14mm Screw M-C (x4) M-D (x4) M-E (x4) -
Page 4: Assembly Options
ASSEMBLY OPTIONS: OPTION 1: Quick Release Allows for quick installation and removal of TV. Quick Release Plate allows Mount Arm to slide on and off for easy storage in RV’s & homes. Compatible with wood or concrete walls. Wood Wall Installation | pg 5-6 Concrete Wall Installation | pg 7-8 Note: Two wall plates are provided to allow for secondary installation location. -
Page 5: Quick Release
Option 1a Quick Release: Wood Wall Installation STEP 1 Hold Wall Plate (B) up to your desired mounting location and use the buit-in Bubble Level on plate to level. Use a pencil to mark holes. Remove Plate and two drill 2.2” (55mm) deep holes using a 3/16” (4.5mm) drill bit. - Page 6 STEP 2 Secure Wall Plate (B) to mounting location using ST6.3x50mm Screws (W-A) and a drill. Use of a level is highly recommended. W-A (x2) Slide Arm (A) into one of your installed Wall Plates (B), then secure using the M6x6mm Set Screws (S-C) and 3mm Allen Wrench (T-A).
- Page 7 Option 1b Quick Release: Concrete Installation STEP 1 Hold Wall Plate (B) up to your desired mounting location and use the buit-in Bubble Level on plate to level. Use a pencil to mark holes. Remove Plate and drill two 2.4” (60mm) deep holes using a 3/8” (10mm) drill bit.
- Page 8 STEP 2 Press Concrete Anchors (W-B) into the drilled holes, then secure Wall Plate (B) using ST6.3x50mm Screws (W-A) and a drill. Use of a level is highly recommended. W-A (x2) W-B (x2) Slide Arm (A) into one of your installed Wall Plates (B), then secure using the M6x6mm Set Screws (S-C) and 3mm Allen Wrench (T-A).
- Page 9 Option 2a Standard Wall Mount: Wood Wall Installation STEP 1 WOOD STUD INSTALLATION: Hold Arm (A) up to your desired mounting location and mark the hole locations using a pencil. Use of a level is highly recommended. Drill 2.2” (55mm) deep holes using a 3/16” (4.5mm) drill bit. 3/16”...
- Page 10 Option 2b Standard Wall Mount: Concrete Wall Installation STEP 1 Hold Arm (A) up to your desired mounting location and mark the hole locations using a pencil. Use of a level is highly recommended. Drill 2.4” (60mm) deep holes using a ⅜” (10mm) drill bit. 3/8”...
- Page 11 ALL ASSEMBLIES TV Mounting Instructions STEP 1 For 100x100mm or 75x75mm VESA Patterns: Extensions are not needed. Proceed to Step 2. For 200x100 or 200x200 VESA Patterns: Based on your VESA pattern, assemble VESA Extension Set (D) to VESA Plate (C) following the appropriate image below.
- Page 12 STEP 2 Attach VESA Plate (C) onto your display using Screws (M-A through M-D) and Washers (M-E or M-F). Spacers (M-G) may be required depending on the display. Use appropriate Use appropriate washers from screws from (x4) M-E/M-F (x4) chart above chart above Use Spacers as needed...
- Page 13 STEP 3 Remove the Pre-Installed Knob and Washer on Arm (A). Slide VESA Plate (C) onto the Arm and reinstall the removed knob and washer. Once you have set your desired position of the arm, lock down the knobs using 5mm Allen Wrench (T-B). Pre-Installed Knob Washer...
- Page 14 STEP 4 Remove the arm covers using a Phillips screwdriver and route cables through arm and reinstall covers.
- Page 15 STEP 5 Adjust screen tilt and swivel using Adjustment Knobs and 5mm Allen Wrench (T-B). Adjustment Knob Adjustment Knob WARNING Always use Allen Wrench to tighten knobs and hold mount when adjusting. DO NOT attempt to hand-tighten to adjust. Failure to follow these instructions may result in damage or accidental injury.
-
Page 16: Last Updated
LAST UPDATED: 12/26/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
