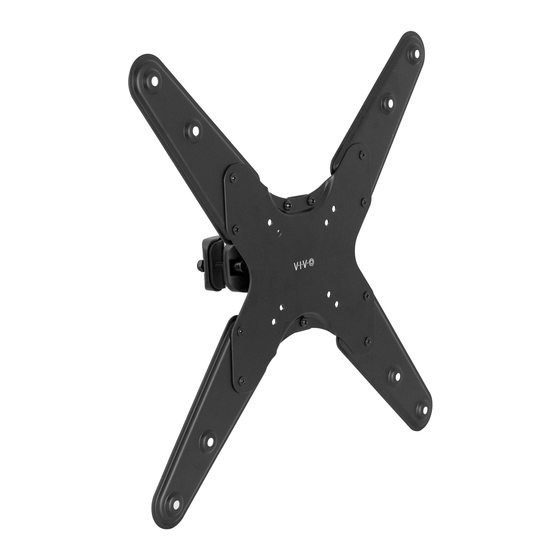

Pole Mount TV Bracket
Instruction Manual
SKU: MOUNT-POLE4
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-pole4
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOUNT-POLE4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-POLE4

  • Page 1 Pole Mount TV Bracket Instruction Manual SKU: MOUNT-POLE4 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-pole4 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 ASSEMBLY STEPS STEP 1 Remove the nuts that hold the mounting bracket (A2) to the VESA plate (A1) using the wrench (J) Keep these aside for re-attaching the brackets. Remove the mounting bracket from the VESA plate. STEP 2 Attached the mounting bracket (A2) around a compatible pole to the clamp (D) using the allen wrench (I), clamp bolts (E), and nuts (F) as shown below NOTE: These are NOT the nuts removed in STEP 1.
  • Page 4 STEP 3 Determine the VESA pattern you are needing and follow the corresponding bracket orientation. Attach the left and right brackets (B, C) using a screwdriver and the bracket bolts (G).
  • Page 5 STEP 4 Determine the correct length screws and spacer combination for your TV. Attach the VESA bracket assembly to the TV using that combination. STEP 5 Attach the TV and VESA assembly to the mounting bracket A2 using the nuts removed in STEP 1 and the wrench (J).
  • Page 6 STEP 6 Use the allen wrench (H) to loosen and tighten the tilt joint adjustment bolts as shown below. Adjust as Desired...
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
