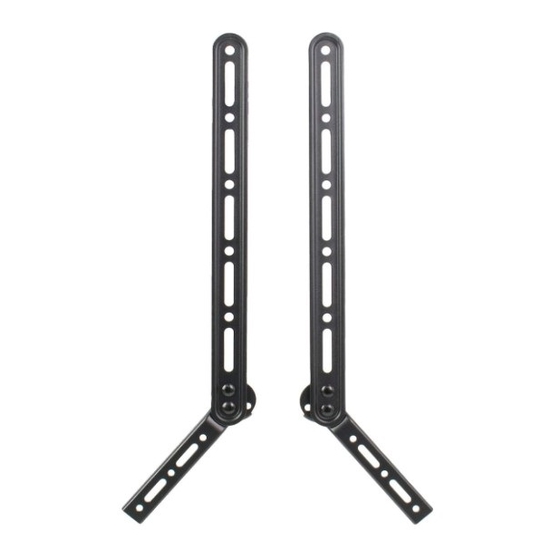

Universal Soundbar TV Mount
Instruction Manual
SKU: MOUNT-SPSB2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-spsb2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-SPSB2
Summary of Contents for Vivo MOUNT-SPSB2
- Page 1 Universal Soundbar TV Mount Instruction Manual SKU: MOUNT-SPSB2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-spsb2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TV. 1A-2 Assemble soundbar with MOUNT-SPSB2 adapter and VESA brackets from your TV mount to TV. Use one of the five following methods, depending on your TV’s requirements. The adapter should be mounted between the TV and the VESA brackets.
- Page 4 STEP 1 (Continued) OPTION 1: For top two holes, use spacers (P) between TV and brackets, and secure with screws (K). For lower two holes, secure VESA brackets and adapter using screws (K). OPTION 2: For top two holes, use L/ M L/ M spacers (P, R) between TV and VESA...
- Page 5 STEP 1 (Continued) The soundbar and TV are now assembled together, and are ready to be assembled to the wall. 1B-1 Install short arms (B) to long arms (A) using carriage bolts (C) and nyloc nuts (D). Assemble straight or at an angle, depending on your soundbar and TV’s requirements.
- Page 6 STEP 1 (Continued) 1B-3 Assemble soundbar with adapter and VESA brackets from your TV mount to TV. Use one of the five following methods, depending on your TV’s requirements. The adapter should be mounted between the TV and the VESA brackets. OPTION 1: For top two holes, use spacers (P) between TV and brackets, and secure with screws (K).
- Page 7 STEP 1 (Continued) OPTION 5: For top two holes, use spacers (P, Q, and R) between TV and VESA brackets, and secure with screws (N or O). For lower two holes, use spacers (P and Q) and secure VESA brackets and adapter using screws (N or O).
- Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! AVG. RESOLUTION TIME : 5M 4S 309-278-5303 (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
