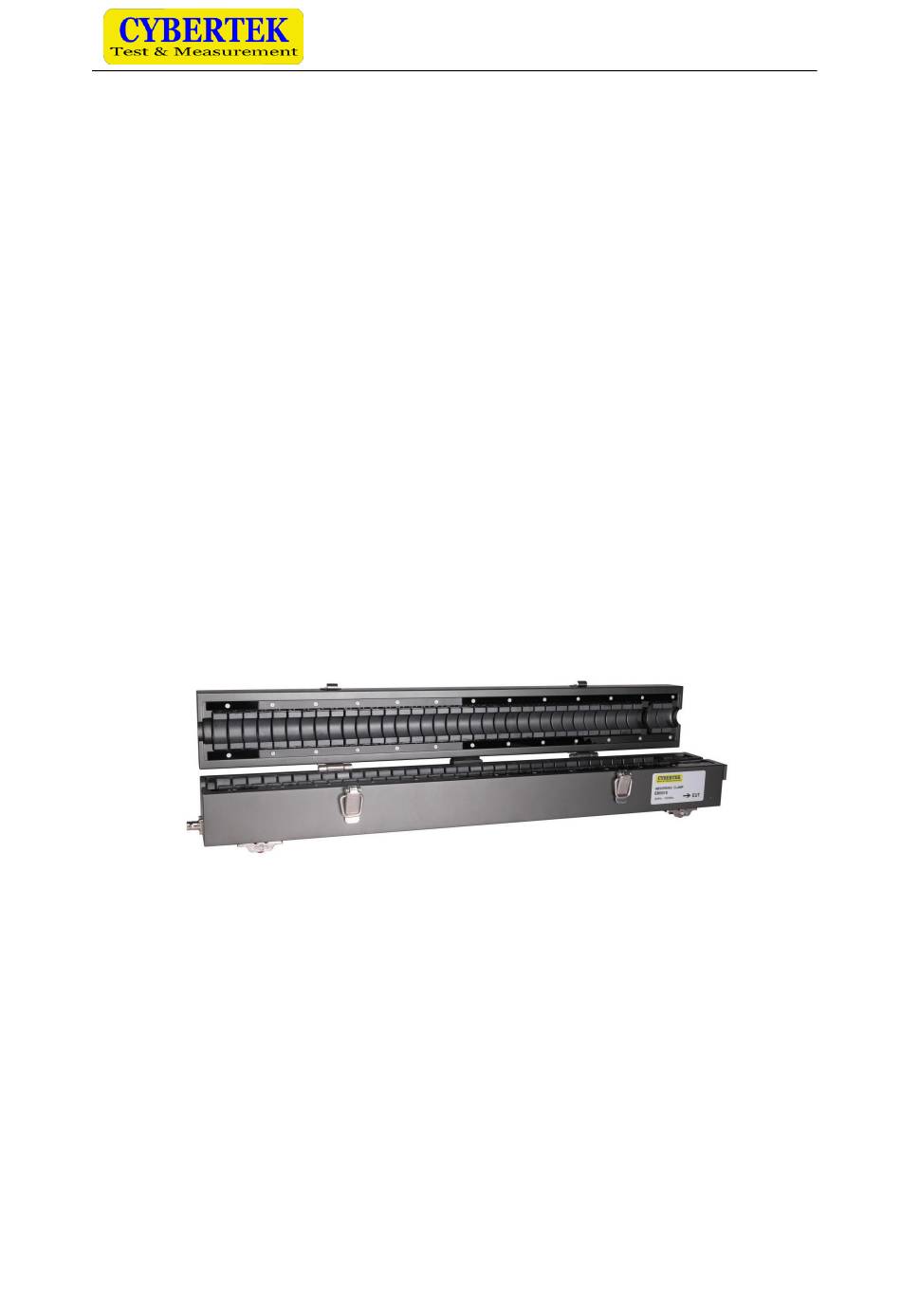

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd Absorbing Clamp EM5018 （30MHz～1000MHz） Shenzhen Zhiyong Eletronics Co., Ltd www.cybertek.cn...

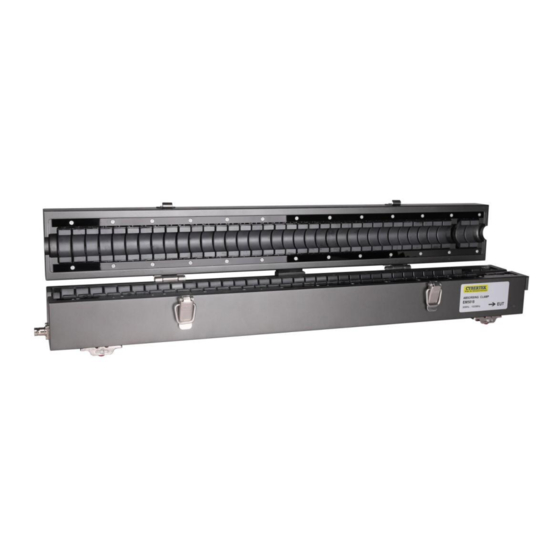

- Page 2 EM5018 Absorbing Clamp is mainly used for measuring the power interference signal from the power cable of EUT, frequency ranging from 30MHz to 1000MHz. EM5018 is in accordance with CISPR 16-1-3 regulation, with operating current over 25A, pore diameter around 20mm, can be widely used in the measurement of testing the interference signal of the standard power supply cable like CISPR 13/EN 55013, CISPR 14-1/EN 55014-1.
- Page 3 The side with EUT mark should be close to the EUT, absorbing clamp cannot be installed reversely. Find maximum value of all frequency point by moving absorbing clamp on the trail. Interference signal measured P (dB(pW)) = Voltage measured V(dB(uV)) + Clamp factor (dB(pW/uV)) www.cybertek.cn...
- Page 4 Shenzhen Zhiyong Electronics Co., Ltd 5. Packing List Packing List EM5018 6dB attenuator （CK-AT6） BNC Cable 5m Instruction Manual Warranty Card Test Report CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO.,LTD. Addr：Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China...
