Step 10: Test Project using Data View Monitor

In this next step, use the Data View Monitor to test the ladder logic
program by manually overriding the status of the internal C1 bit that
was programmed. The purpose of this will be to have the C1 bit

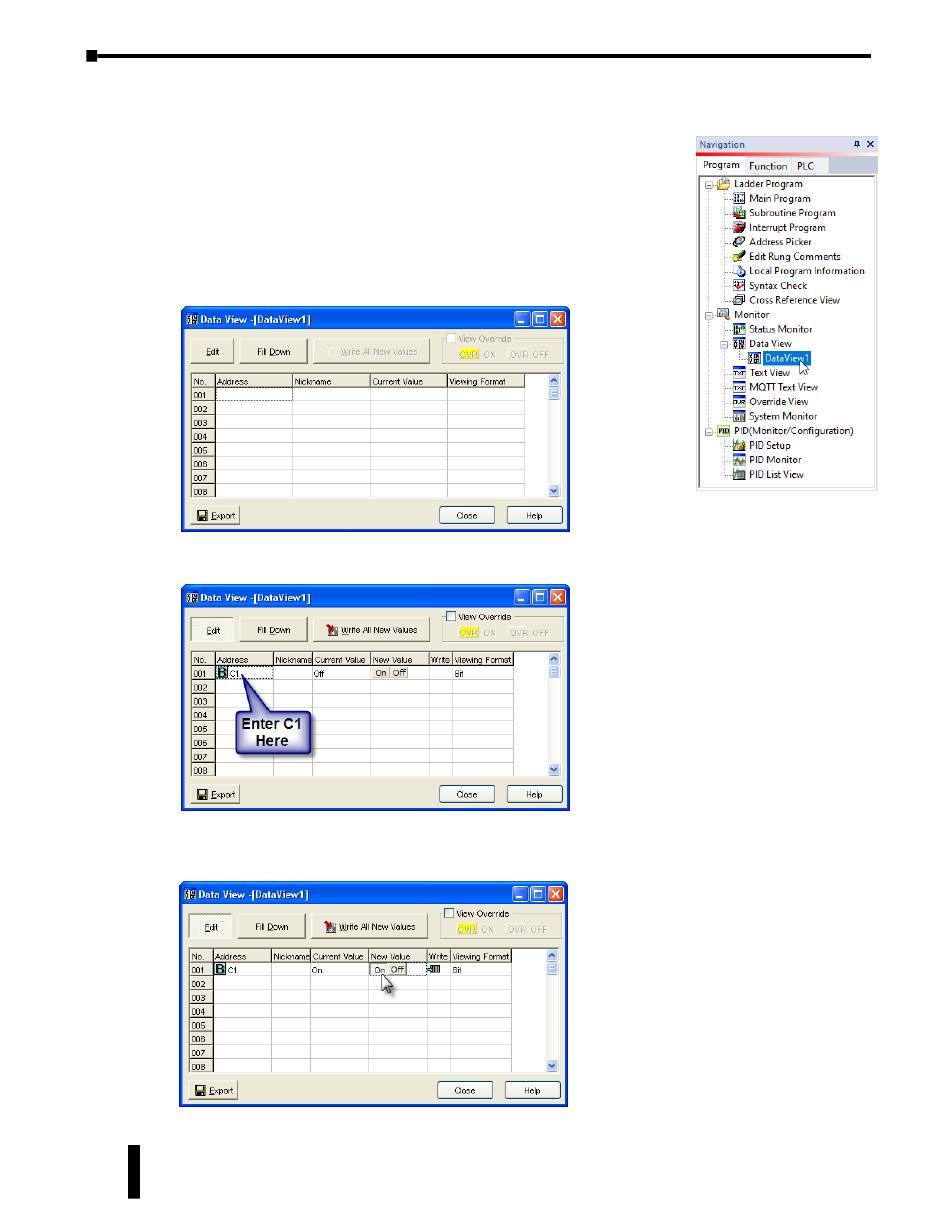

enable Timer T1. From the Navigation window on the left side of
the development screen, select the Program tab, open the Data View
folder under Monitor and double click on DataView1.
The Data View window is displayed.
Click the Edit button and type in C1 as the Address as shown below.
Double click the ON button in the New Value column. The Current Value of the C1 bit
changes from OFF to ON. Go to Step 10: "Y001 Output On?"
