Chapter 1: Getting Started
Step 4: Create a Project (cont'd)
Rung #2

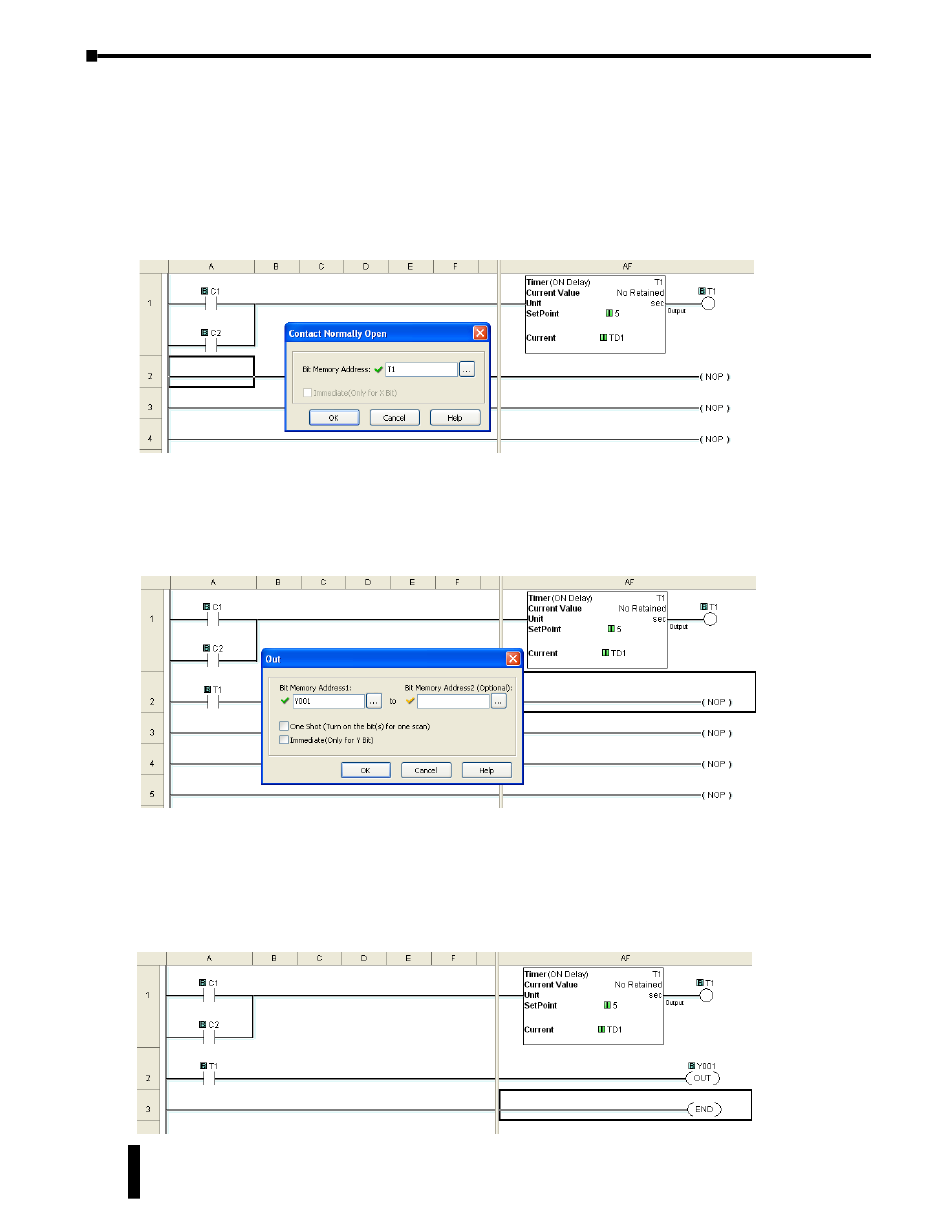

Place the Box Cursor at the beginning of Rung #2. From the Instruction List, click and drag a
Contact (NO) into this box. Enter T1 into the Bit Memory Address text box of the Contact
Normally Open dialog box that pops up. Click OK. A normally open contact labeled T1 will
be placed in the beginning of Rung #2.
Next, place the Box Cursor on the NOP coil at the far right of Rung #2. Click and drag an
OUT from the Instruction List into this location. Within the Out dialog box, enter Y001 into
the Bit Memory Address: text box. Click OK. An out coil labeled Y001 will be placed at the
end of Rung #2.
Rung #3
Finally, place the Box Cursor on the NOP coil at the far right of Rung #3. Click and drag an
END from the Instruction List into this location. An END instruction indicates the last part
of the main ladder logic program. You have created your first project!
