AutomationDirect CLICK PLUS PLC Getting Started page 25

Step 7: Establish PC to PLC Communications, (cont'd)
Connecting to a Wired LAN (Models C2-01CPU and C2-03CPU only)

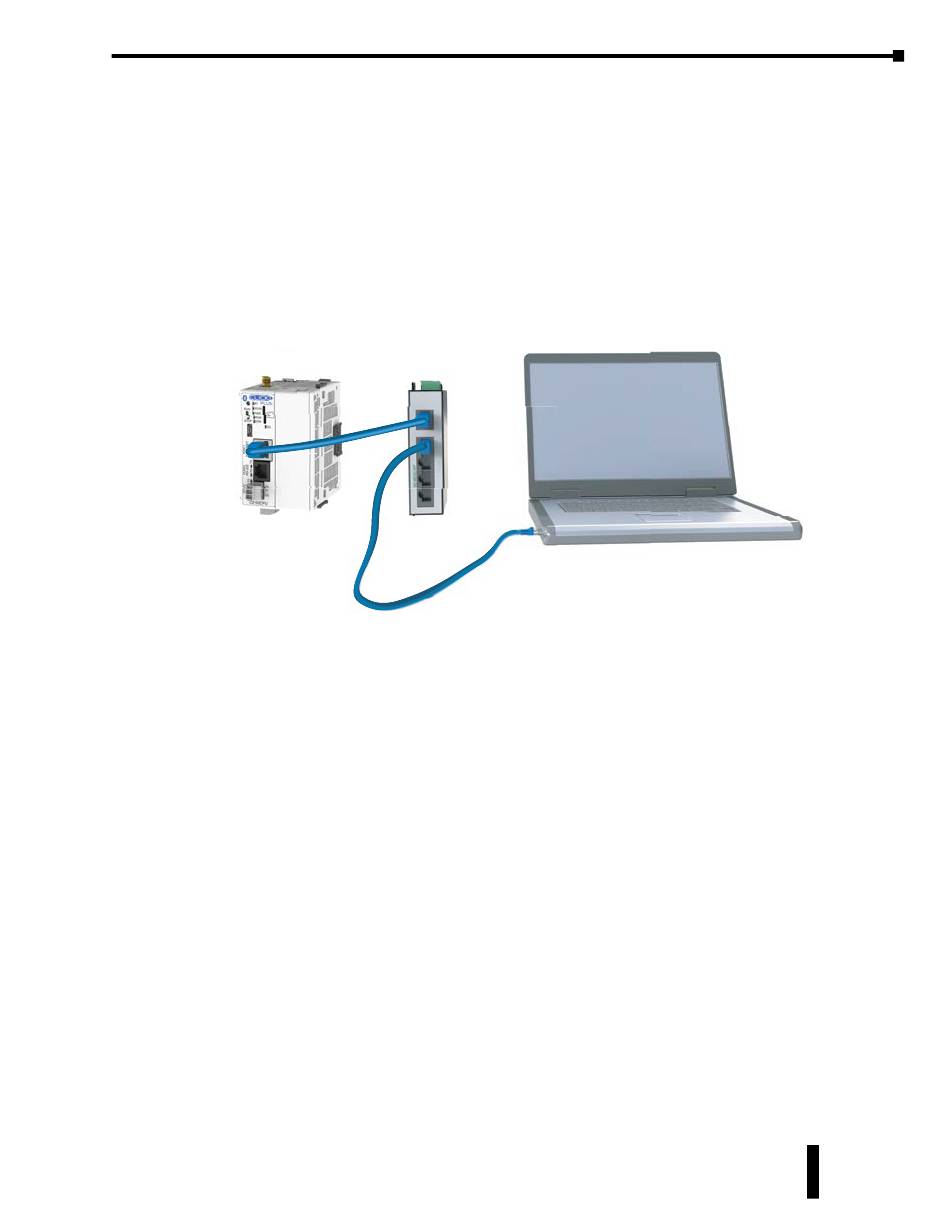

You can connect your PC to the CLICK PLC via an Ethernet switch/hub or directly to the
Ethernet port. You can use a straight or crossover Ethernet cable.
Once we have communications cable(s) connected between the Ethernet port on the CLICK
PLUS PLC and the Ethernet port on the PC, we are ready to configure the Ethernet connection
and connect the CLICK Programming Software to the PLC.
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
Chapter 1: Getting Started
1-25
