Step 7: Establish PC to PLC Communications, (cont'd)

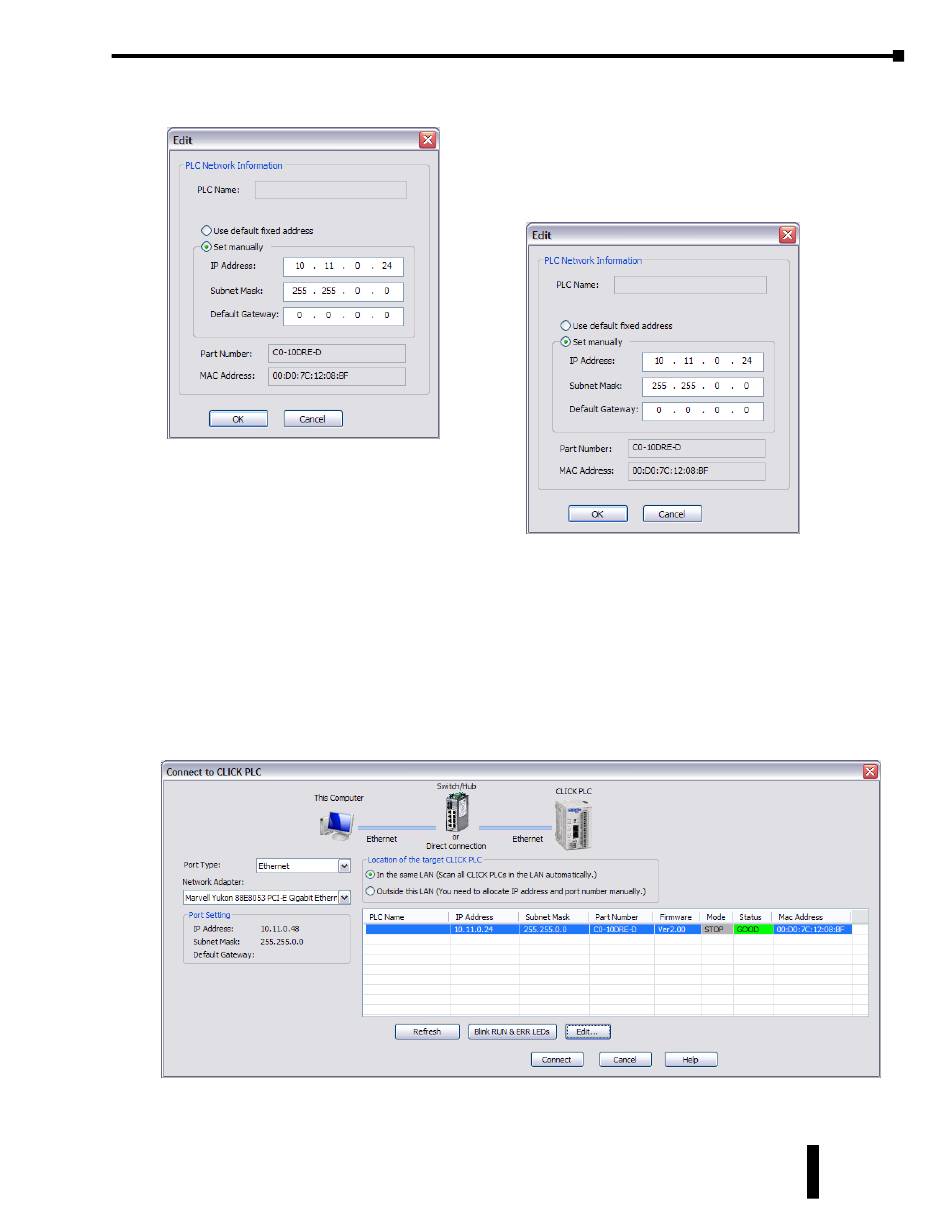

Next, the new IP Address needs to start with '10.11' to match the subnet of the PC. The
following 2 numbers however, can be any number between 1 and 254 as long as the new IP
Address is unique in the LAN. In the window here, the IP Address was changed to '10.11.0.24'.
Click the OK button to continue. The new IP Address setup is sent to the CLICK PLUS PLC.
Your PC and the CLICK PLUS PLC should be in the same subnet now. Click the Connect
button on the bottom to connect the CLICK programming software to the PLC.
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
To match the subnet setup of the CLICK PLUS PLC to
the subnet that your PC locates in, select the PLC unit
in the list and click the Edit button under the list. The
Edit window opens.
