Step 7: Establish PC to PLC Communications (cont'd)

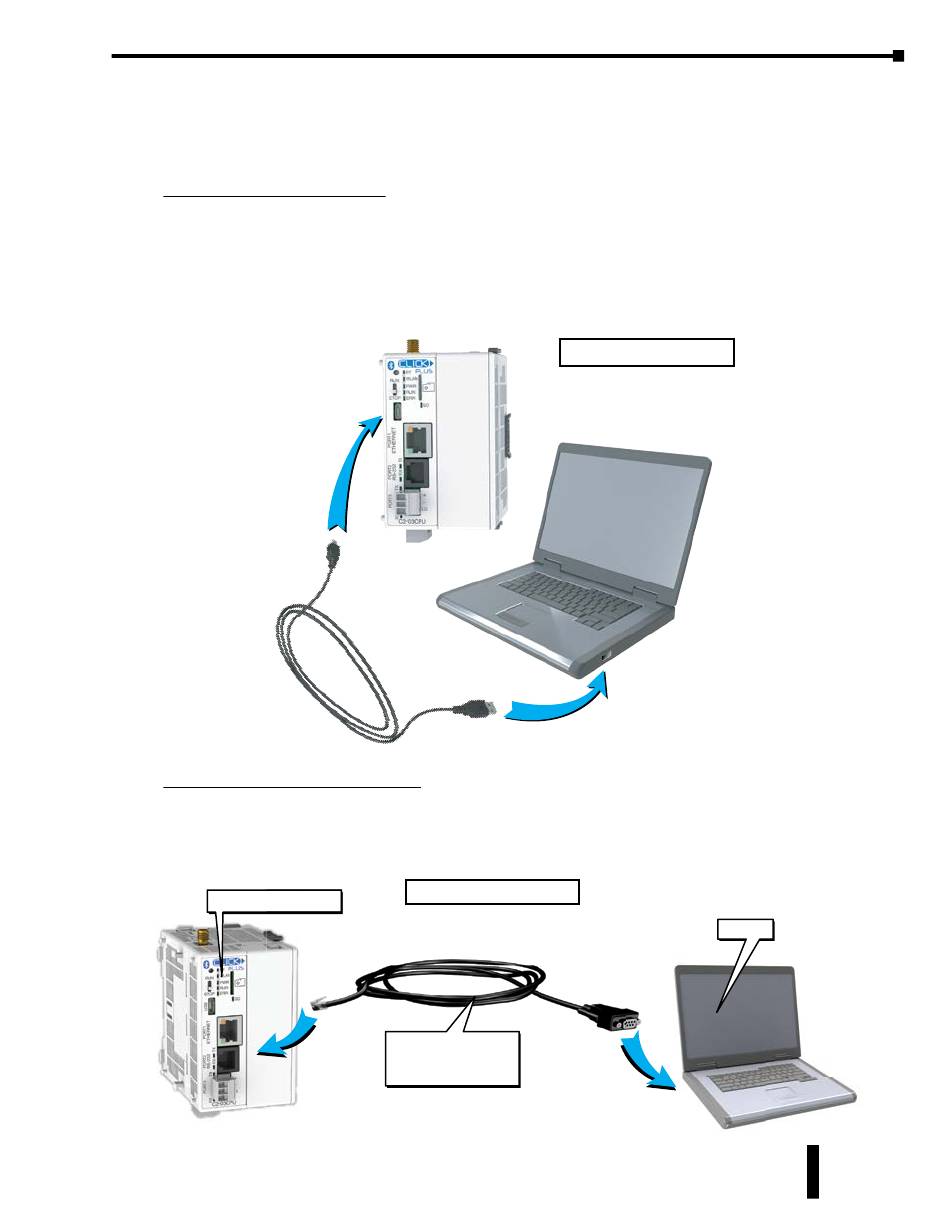

Using a USB or Serial Port for Programming
Connecting to a USB Port
If a USB port is available on the PC, then use an AutomationDirect USB A to USB micro B
Programming Cable (P/N - USB-CBL-AMICB6) to connect between the USB port on the PC
and the micro-B USB connector on the CLICK PLUS PLC., or use an AutomationDirect PC
to Panel Programming Cable Assembly (P/N - EA-MG-PGM-CBL) to connect between the
USB port on the PC and the RJ12 serial port on a CLICK PLC.
Connecting to an RS-232 Port
If a 9-pin RS-232 serial communications port is available on the PC, then use an
AutomationDirect PC Serial Programming Cable (P/N - D2-DSCBL) to connect between the
9-pin port on the PC and the RJ12 connector on the PLC's RS-232 Port.
CLICK PLUS PLC PLUS PLC
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. K – C2-USER-M
CLICK Plus
PLC
USB Cable
ADC Part #
USB-CBL-AMICB6
Using a PC Serial Port.
PC Serial
Programming Cable
D2-DSCBL
Chapter 1: Getting Started
Using a PC USB Port.
PC with
USB A Port
PC
