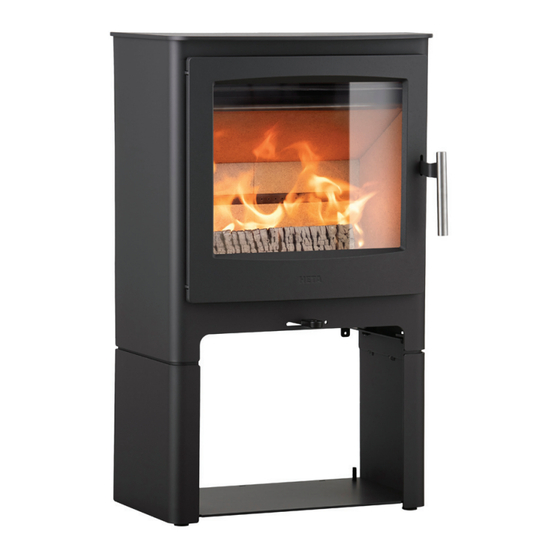

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS AMBITION STOVE is exemt for use in smoke control areas when burning dry wood. ECODESIGN READY www.heta.dk DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION...
-
Page 2: Table Of Contents
Congratulations on your new stove. We confident that you will be more than satisfied with your new Heta stove, especially if you follow the advice and instructions we have put together in these operating instructions. Ambition series have been approved per the EN 13240, NS 3058/3059 and 15a B-VG. -
Page 3: Before Installation
It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove. - Page 4 Q.C. check Operating / Instruction manual Data plate Heta glove 8056-0000-DK DOP-Scan-line 1000 -XXXX-2016 Nr. 0023-9002 Heta A/S Jupitervej 22 7620 Lemvig Denmark Produk�ons år: 2016 DS/EN 13240, AEA, NS 3058/3059, Aus §15A Produkt beskrivelse Produk�onsnummer Scan-Line 1000 brændeovn Afstand �l brændbart materiale - bag ovn 120 mm Afstand �l brændbart materiale - side af ovn...
-
Page 5: Operating Instructions
1. OPERATING INSTRUCTIONS 1.1 Before using fitted to ensure that the air control slider can- not be closed beyond 33% for Ambition 5 and Before the wood stove is used make sure re- 42% for Ambition 8 of its fully open position. -
Page 6: Refueling
Place pieces of wood equivalent to about embers left for a long time. 1.2 kg for Ambition 5 and 1.8 kg for Ambition 8 Never empty ash into a combustible container. on top of the embers perpendicular to the door. -
Page 7: Draft Conditions In The Chimney
Ambition 5: 203°C, relative to 20°C. Ambition 8: 249°C, relative to 20°C. One must always use cation around Flue gas flow is: Ambition 5: 4.5 g/sek. Cor- the stove seen, as it gets very warm responding to 15.9 m³/hr of combustion air by during use. -
Page 8: Operating Problems
ted wood or chipboard, as these materials can source, you save the environment about 1.3 kg CO emit poisonous fumes and smoke. every time you have used 1 kg normal wood. Correct firing using well seasoned wood pro- 1.11 Operational problems vides optimal heat output and maximum effi- ciency. -
Page 9: Cleaning The Glass
0.12 1100 The nominal output is the output to which the stove has been tested. Testing is conducted with the combustion air around 61% open for Ambition 5 and 69% open for Ambition 8. * Ambition 5 = 100 kg... -
Page 10: Troubleshooting
1.17 Troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot. -
Page 11: Cleaning/Replacing Bicks After Chimney Sweeping
1.18 Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 5. -
Page 12: Garantee
Therefore, the duration of the warranty is 5 years on this product, covering manufactu- rer’s defects, 1 year on paint adhesion defects from purchase date from Heta and a 3 months total warranty for seals, vermiculite and glass from the date of sale from the dealer. - Page 13 Ambition 5 Parts - Inside fire chamber Pos. Name Qty. 1 0023-000103 Back stone top, left 2 0023-002740 Side stone, left 3 0023-002742 Baffle 4 0023-002741 Side stone, right 5 0023-000387 Back stone bottom, left 6 1013-004304 Stiffener 7 0023-004882 Back stone top, right 8 0023-004879 Back stone bottom, right Ambition 8 Parts - Inside fire chamber...
-
Page 14: Installation Instructions
Installation Instructions Contents Installation instructions ..............15 Distance requirements ..............15 Floor ....................15 Chimney connection ................. 15 Combustion air and ventilation ............16 Stovedrawings/measurments ............. 16-18 Connecting direct air - nehind ............18 Clearances for installation EN 13 240 ..........19 Changing to back outlet .............. -
Page 15: Installation Instructions
flue gas pipe air circulation around the stove. must be sealed with fireproof material and / or beading. Heta A/S stresses that it is of utmost The minimum distance to combustibles can be importance that this is done correctly with very found on the model plate provided with the sto- tight joints. -
Page 16: Combustion Air And Ventilation
EN 13240. All the combustion air in the inset stove comes from The Ambition 5 (4,9 kW) has a nominal output the room in which it is fitted. However, by con- of less than 5 kW and does not need additional necting a sealed air inlet to the stove’s air intake... - Page 17 Ambition 5 Ambition 8...
-
Page 18: Connecting Direct Air - Nehind
Ambition 8 2.6 Connecting direct air - behind When installing external air supply, connect the air intake to the direct air pipe using flexi-pipe, Flexi-pipe not included. Ø 100... -
Page 19: Clearances For Installation En 13 240
Clearances for installation EN 13 240 Stove Distance to flamable materials Minimum rear the stove at the over dimensions in with insulation / sides furniture without insulation stove Ambition 5 150/200 1100 Ambition 8 175/225 1100... -
Page 20: Changing To Back Outlet
2.8 Changing to back outlet 1500-001146 4025-0007... - Page 21 Secretary of State in ac- requirements cordance with changes made to sections 20 The Ambition 5 and 8 have been recommended and 21 of the Clean Air Act 1993 by section 15 as suitable for use in smoke control areas when of the Deregulation Act 2015.
-
Page 23: Eu Declaration Of Conformity
Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Ambition 5 2334-2018 Telephone +45 9663 0600 Product fiche Model identifier Ambition 5 The identified product described above is in Notified body relevant to the assessment and verification of... - Page 24 Certifikat no. 2335 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Ambition 8 2335-2018 Telephone +45 9663 0600 Product fiche Model identifier Ambition 8 The identified product described above is in Notified body relevant to the assessment and verification of...
