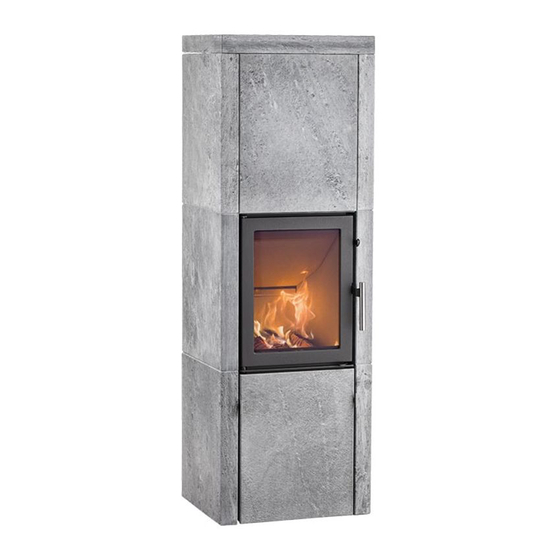

- Page 1 40, 50, 40B anD 50B aPProVeD For Use in sMoKe Control areas When BUrninG Dry WooD loGs or aUthoriseD FUels www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...
- Page 2 The Scan-Line 40/40B and 50/50B have been approved according to the EN 13240 / NS 3058. Approval means that consumers can be sure, that the stove meets a range of specifications and requirements intended to ensure that the materials used are of good quality, that the stove does not adversely affect the environment, and hat it is economical to use.
-
Page 3: Safety Clearances
installation instrUCtions the chimney connection safety clearances The chimney opening must follow national and Stoves must always be installed in line with nati- onal and, if applicable, local regulations. It is im- local regulations. However, the area of the ope- ning should never be less than 175 cm , which portant to abide by local regulations regarding... -
Page 4: First Firing
difference between the high temperature of the • The chimney is too low and sheltered. chimney and the low temperature of the fresh • The chimney contains false air. air. The length and insulation of the chimney, • The chimney and flue gas pipe are blocked. wind and weather conditions also have an effect • The house is too airtight (i.e. -
Page 5: Lighting The Stove
operating position. We recommend, all of the 1.3 kg CO every time you have used 1 kg nor- first fuel is burned with the combustion air fully mal wood. open in the operating position. This ensures the Chimney fires stove and chimney are thoroughly heated. In the event of a chimney fire –... -
Page 6: Operational Problems
optimal firing risk of explosion To achieve optimal firing and the highest possi- After you add new fuel, it is very ble effect, it is important to make sure that the air important that you do not leave supply is used correctly. As a general rule, the the stove unattended until the secondary air is to be used to control the fire to wood is burning constantly. - Page 7 Therefore, the duration of the warranty is 5 years on this product, covering manufactu- rer’s defects, 1 year on paint adhesion defects from purchase date from Heta and a 3 months total warranty for seals, vermiculite and glass from the date of sale from the dealer.
-
Page 8: Maintenance
Clean soot, grease, etc. from surfaces using a mix of soapstone powder and waterglass water and soft soap or similar. (available from Heta A/S). Mix the powder and - Spread the soap on the surface waterglass to an appropriate consistency. -
Page 9: Troubleshooting
troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot. -
Page 10: Installation Instructions
1035 mm. for Heta A/S Scan-Line 40 - 50 and 1300 for Scan-Line 40B - 50B. The stove must be in level. To adjust, turn the adjusting screws on the base up/down. Fig. 1. - Page 11 If required, lubricate the pin holes with a small amount of silicon. Can also be applied between the stones. sCan-line 40 soaPstone 10 x standard brackets 12 x standard pins sCan-line 40B soaPstone 10 x standard brackets 12 x standard...
- Page 12 sCan-line 50 soaPstone 14 x standard brackets 20 x standard pins sCan-line 50B soaPstone 14 x standard brackets 20 x standard pins 2 small pins...
- Page 13 40 BlaCKWooD 10 standard brackets 12 standard pins sCan-line 40B BlaCKWooD 10 standard brackets 12 standard pins 2 small pins...
- Page 14 40, 40B, 50 anD 50B - soaPstone Place the stone into the groove on the door so Fig. 2 that it is equidistant to both sides. Important! The stone must be manually held in place until the handle is fitted.
- Page 15 Fig. 4. The closed cover should be placed here unless the stove should be mounted with back outlet. The open cover should be placed here. sCan-line 40 anD 40B - BlaCKWooD Mounting of radiant plates Bending only Scan-Line 40B...
- Page 16 Loosen only the front screw on both sides and set radiant plates down. Tighten the screws. Scan-Line 40 Baking oven models are mounted in the same way on the upper brackets. Insert the top two screws and hang the back plate.
- Page 17 40 anD 40B - BlaCKWooD Mounting of radiant plates at rear exit Remove the back plate, bend the pins where the rear exit should be.
- Page 18 40, 40B, 50 anD 50B soaPstone BlaCKWooD...
- Page 19 40, 40B, 50 anD 50B...
- Page 20 soaPstone BlaCKWooD...
- Page 21 40, 40B, 50 anD 50B soaPstone Put brackets and pins in as shown. Continuing with the next row. Start with sidestone, backstone and then sidestone again. Place brackets and pins. sCan-line 40 anD 40B - BlaCKWooD Put brackets and pins in as shown.
- Page 22 BlaCKWooD Optional thermastones are also available for Three thermastones can be installed in this Scan-Line 40, 40B, 50 and 50B. stove. The thermastones must be added after the stones have been placed and the stove/firebox has been adjusted.
- Page 23 40 anD 50 Start with the front stone with the two brackets beneath (resting on the metal frame) and then a side stone, which should be placed on the pins/brackets. Continue with back stone and then a side stone. Place brackets and pins on the top.
- Page 24 sCan-line 40B anD 50B Start with the front stone with the two brackets beneath (resting on the metal frame) and then a side stone, which should be placed on the pins/brackets. Continue with back stone and then a side stone. Place brackets and pins on the top. No pins are nessesary.
- Page 25 40, 50, 40B anD 50B ConVeCtion If the stove has a top flue, break of the inner ring. Soapstone Fig. 1 Blackwood For soapstone, the top screw must be removed to open / close for convection. Fig. 1. Fig. 2 The convection air must not be shut off with the Blackwood models.
- Page 26 40 anD 40B - BlaCKWooD At the rear exit on the Blackwood mo- dels, ring no. 1013-024955 must always be fitted. 1013-024955...
- Page 27 Certifikat no. 2354 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Scan-Line 500 2354-2018 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 500, 510, 520, 520B, 550, 551, 560B, 560S, 590, Turin, Turin B, Napoli, 10-20-20B-30-30B, Tour...
