SETTING UP

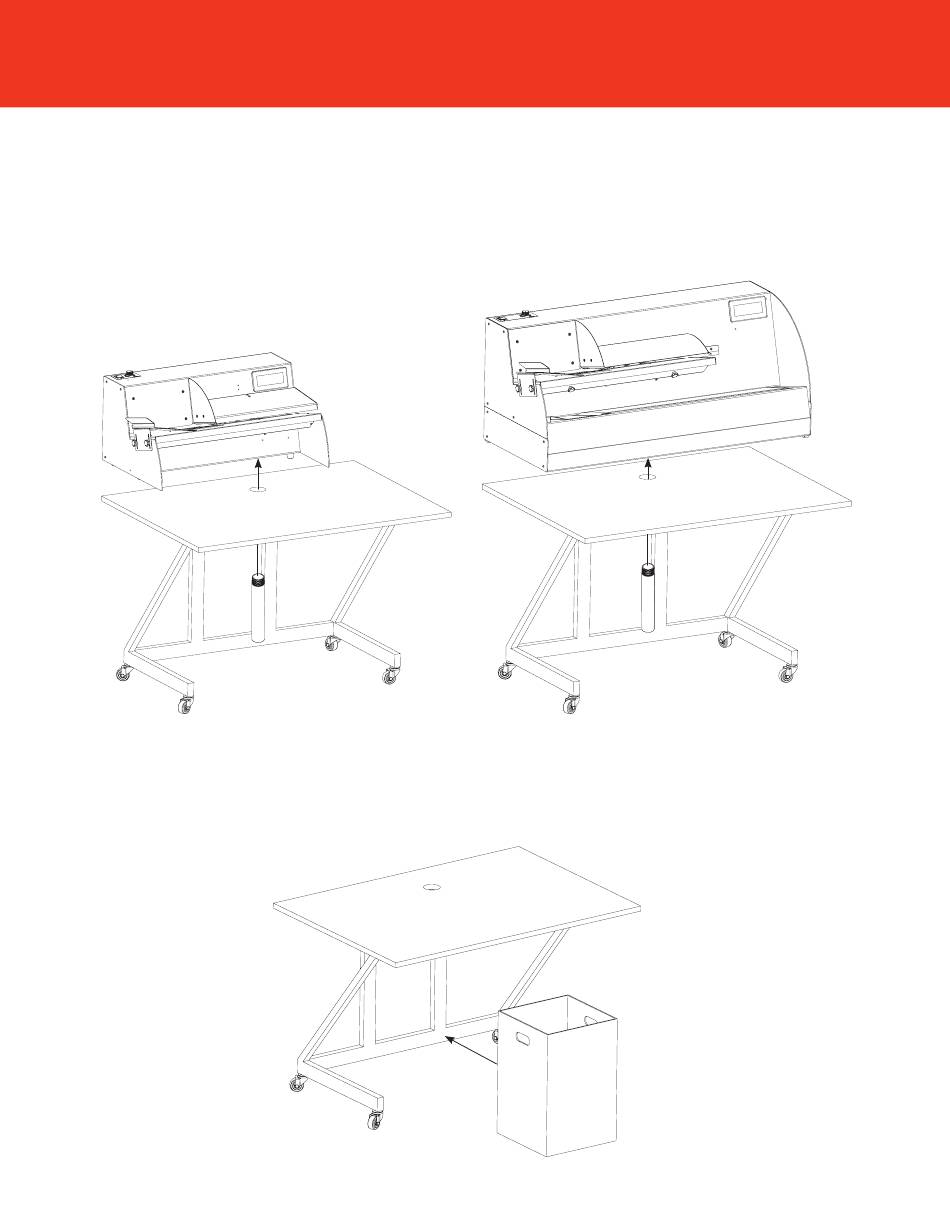

Place the machine on top of the table as shown in the following illustrations.
Once the machine has been placed in the correct position on the table, thread the included
grey waste tube from the underside of the table through the chassis into the milling cutter.
IM-22 IM-27
Assemble waste bin and place under the machine so it is centered under the waste tube as
shown in the below illustration.
Be sure to empty the waste bin frequently.
