5.15.4 Connecting the WELDQAS welding data monitoring and documentation system

Network-compatible welding data monitoring and documentation system for digital power sources.
Item Symbol Description
1
2
3
4
5
6
099-000139-EW501
01.08.2011
1
7-pole connection socket (digital)
For connecting digital accessory components
Windows PC
WELDQAS welding data monitoring and documentation system
Connection cable, 7-pole
Connection between switching cabinet and power source
Integration option of WELDQAS into existing network systems via network
cables
Connection cable included as standard with WELDQAS
Design and function
6
4

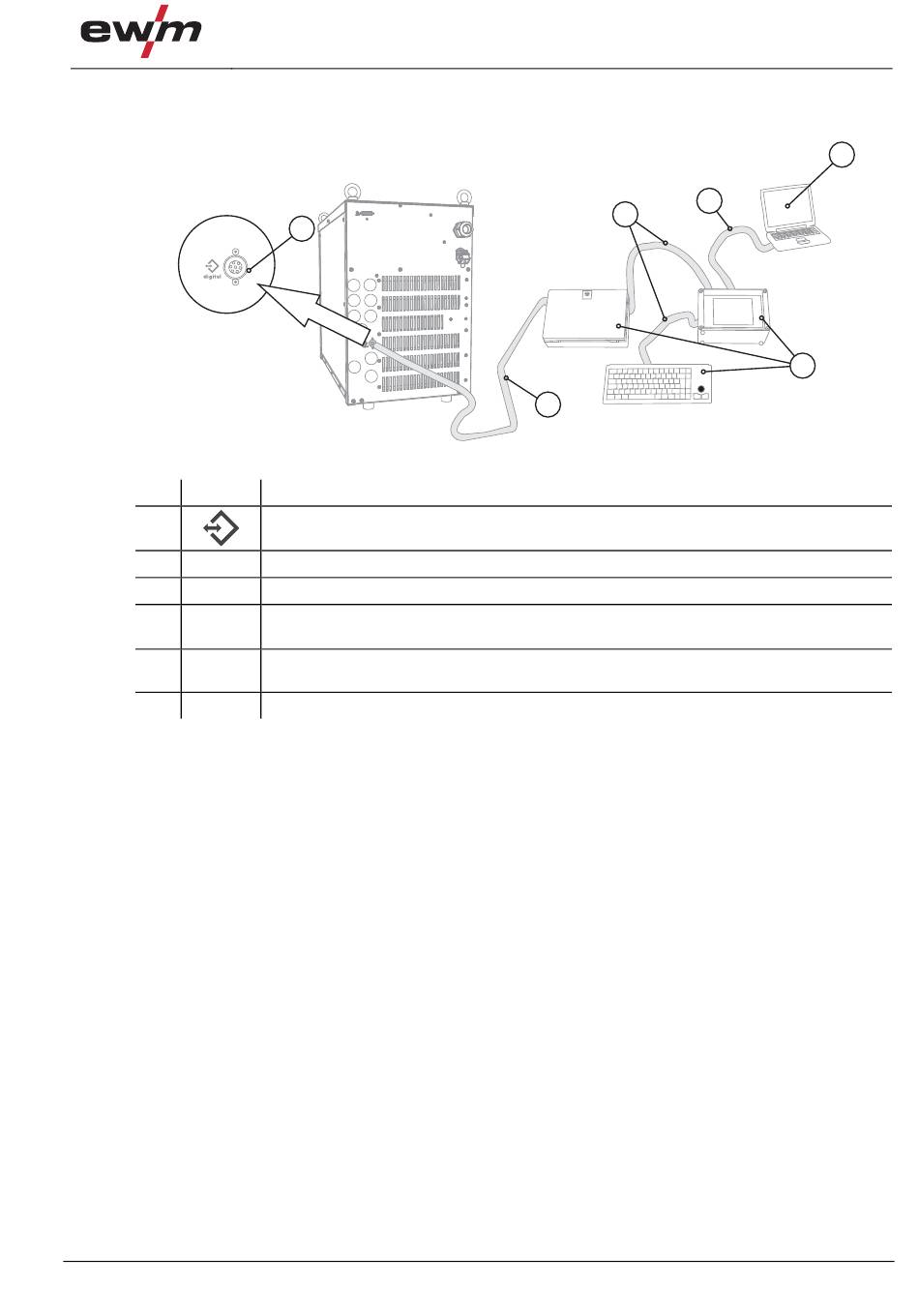

Figure 5-11
Interfaces
2
5
3
