5.15.2 Connecting the PC 300.net welding parameterisation software

Create all welding parameters quickly on the PC and easily transfer them to one or more welding
machines (accessories, set consisting of software, interface, connection leads)
3
Item Symbol Description
1
COM
2
3
4
5
6
Equipment damage or faults may occur if the PC is connected incorrectly!
Not using the SECINT X10USB interface results in equipment damage or faults in signal
transmission. The PC may be destroyed due to high frequency ignition pulses.
• Interface SECINT X10USB must be connected between the PC and the welding machine!
• The connection must only be made using the cables supplied (do not use any additional
extension cables)!
099-000139-EW501
01.08.2011
4
5
6
PC interface, serial (D-Sub connection socket, 9-pole)
Connection cable, 9-pole, serial
Windows PC
RC300 tablet PC
USB connection
SECINT X10 USB

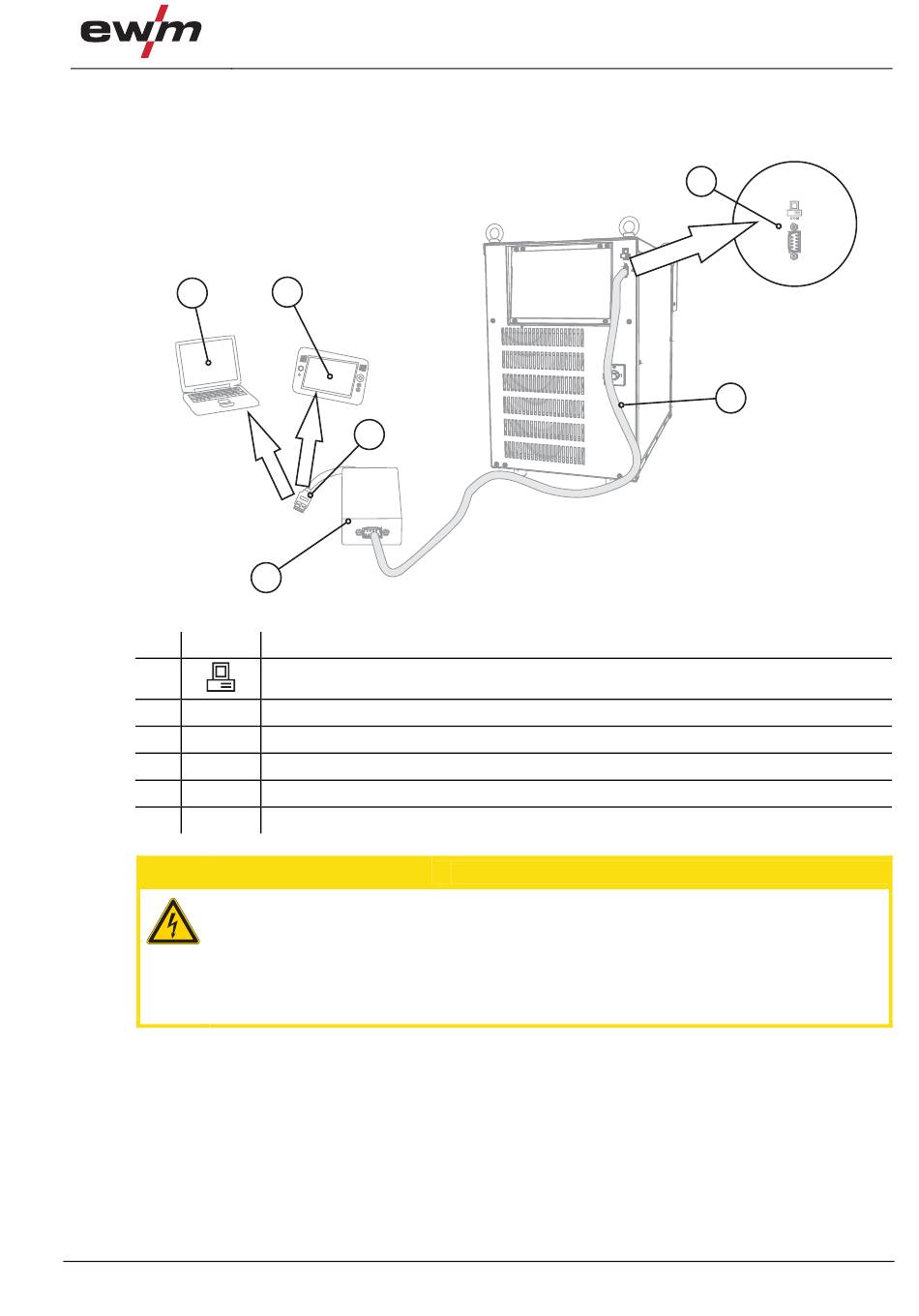

Figure 5-9
CAUTION
Design and function
1
2
Interfaces
