Transition Networks SISTM1040-262D-LRT Specifications

industrial switch
AUTO NEG
AUTO CROSS
SISTM1040-262D-LRT
(16) 10/100Base-TX ports + (2) 10/100/1000Base-T
or 100/1000Base-X SFP Combo Ports
Transition Networks' managed
Industrial Switches are hardened
devices designed to reliably op-
erate in harsh environments
such as those found on factory
floors, outdoor enclosures or
other hazardous environments.
Features
Auto-Negotiation
AutoCross™
Full Wire Speed Performance
with 7Gbps Backplane
Combo SFP ports support
100Base-FX and 1000Base-X SFPs
10/100/1000Base-T Combo RJ-45
Extended (-40°C to 75°C)
Operating Temperature
Dry Contact Relay Alarm Output
Dual, Redundant, Auto-Sensing
12-48VDC Power Inputs
Reverse Polarity Power Input
and Overload Current Protection
DIN Rail Mounting and Wall
Mount Brackets Included
Class 1 Div 2

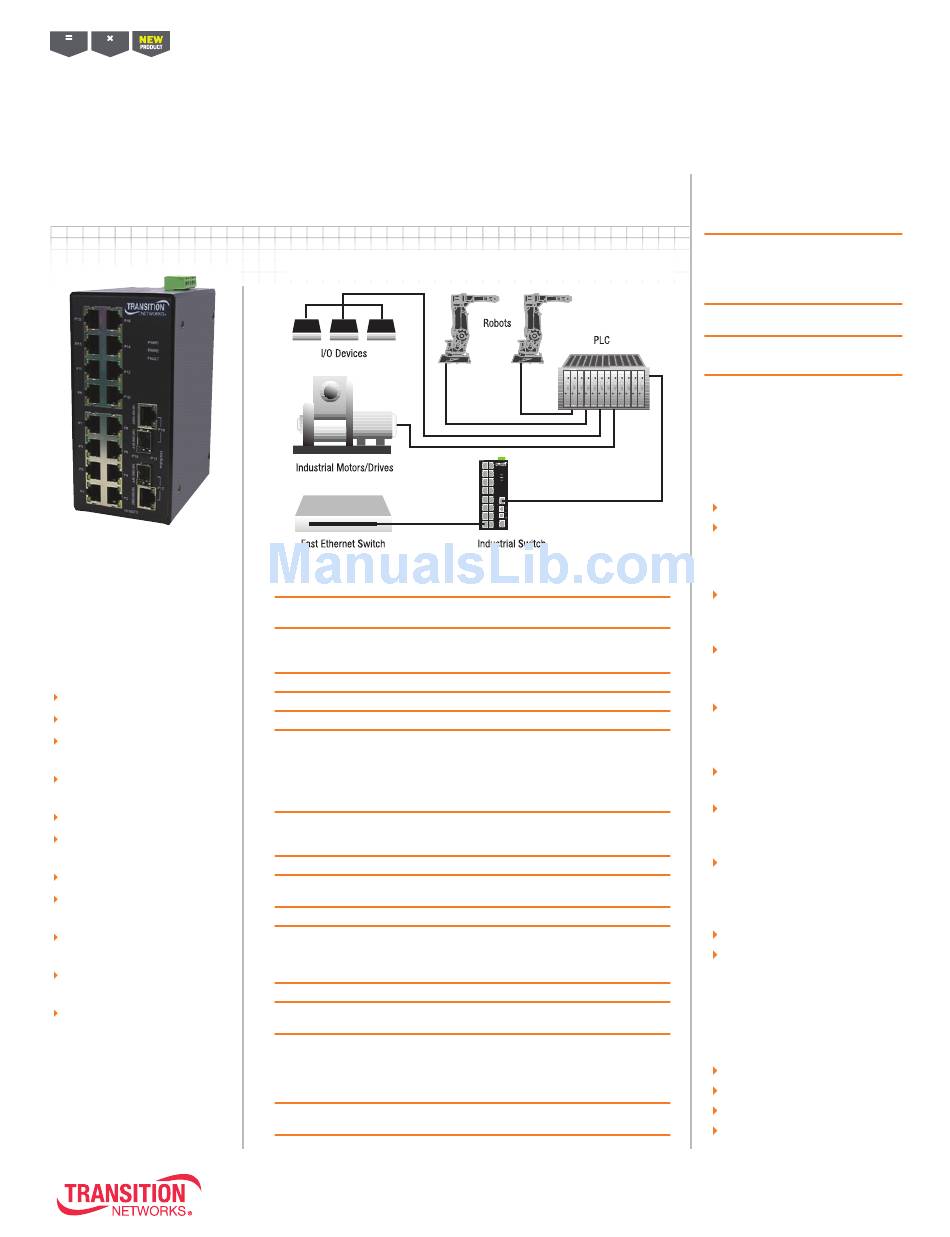

Utilize Ethernet Connectivity in Industrial Automation

Specifications

Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u,
IEEE 802.3z, IEEE 802.3x
Copper (ports 1-16): 10/100Mbps
Data Rate
Copper (ports 17-18): 10/100/1000Mbps
SFP: 100/1000Mbps
Filtering Addresses 8K MAC Addresses
Data Memory Buffer 1Mb
Backplane 7.2Gbps
PWR 1 (Power): ON = primary power connected
Status LEDs
PWR 2 (Power): ON = backup power connected
FAULT: ON = power input failure on PWR1 or PWR2
LNK/ACT: ON = Link; FLASHING = data transmitting
FDX/COL: ON = Full duplex mode;
FLASHING = collisions occuring
Dimensions Width: 2.8" [72 mm]
Depth: 4.1" [105 mm]
Height: 6.0" [152 mm]
Ingress Protection IP 30
Input Power 12 to 48 VDC;
redundant inputs with reverse polarity protection
Power Consumption 9 Watts
Environment -40 to +75°C extended operating temperature;
5% – 95% humidity non-condensing;
0 – 10,000 ft. altitude
-40 to +85°C storage temperature
Shipping Weight 3 lbs. [1.36 kg]
Safety UL, cUL, CE/EN60950-1,
UL Class 1 Div 2 for hazardous environment
EMI Compliance CISPR22/EN55022; EN60950 Class A; FCC Class A; CE
Mark; CE EN61000-4-2; CE EN61000-4-3; CE EN-
61000-4-4; CE EN61000-4-5; CE EN61000-4-6; CE
EN61000-4-8; CE EN61000-4-11; CE EN61000-4-12;
CE EN61000-6-2; CE EN61000-6-4
Environmental IEC60068-2-32 (Free fall); IEC60068-2-27 (Shock);
IEC60068-2-6 (Vibration)
Warranty Lifetime
Transition Networks, Inc. tel: 952.941.7600 / 800.526.9267
Worldwide Headquarters: fax: 952.941.2322
10900 Red Circle Drive info@transition.com
Minnetonka, MN 55343 USA http://www.transition.com
Class 1 Div 2 Industrial Switch
10/100BASE-TX Managed

Ordering Info

Extended Operating Temperature:
-40°C to +75°C
SISTM1040-262D-LRT
(16) 10/100BASE-TX (RJ-45)
[100 m/328 ft.]
with (2) 10/100/1000BASE-T (RJ-45)
or 100/1000BASE-X SFP Combo ports
Optional Accessories
(sold separately)
SFP Modules (see pages 163-169)
External AC/DC Power Supply:
SPS-UA12DHT
100-240 VAC input
(-25° C to + 70° C operating temperature)

Management Features

VLAN
Port Based VLAN
802.1 Q Tag VLAN
Port Trunk with LACP
QoS (Quality of Service)
IEEE 802.1p Class of Service,
Per port provides
4 priority queues
Port Based, Tag Based and Type
of Service Priority
Port Mirror
Monitor traffic in switched
networks
Security
Port Sercurity : MAC address
entries/filter
IP Security : IP address security
management to prevent
unauthorized intruder
Login Security :
IEEE802.1X/RADIUS
IGMP Query mode for
Multi Media Application
Support multicast filter X-Ring
Support X-ring, Dual Homing,
Couple Ring and Dual Ring
Topology. Provide redundant
backup feature and recovery
time below 20ms
Management
SNMP v1 v2c, v3/Web/Telnet/CLI
DHCP Client/DHCP Server
TFTP Firmware Upgrade
TFTP Configuration
Backup/Restore
©2009 Transition Networks, Inc.
All trade marks are the property of their respective owners.
Technical information is subject to change without notice.
